Kenmore 385.15202 / 385.15208 Sewing Machine Owner's Manual (P/N 304-800-009)

• Covers the 1999 Kenmore 385.15202 and 385.15208 series sewing machines, detailing operation, stitch selection, and maintenance for both the 19- and 25-stitch function variants
• Official Sears, Roebuck and Co. publication P/N 304-800-009, 1999 edition
• Contains 26 exploded-view component illustrations, 6 stitch function diagrams, 2 technical specification tables, and a comprehensive troubleshooting reference chart
• This 75-page PDF manual documents the specific 15202 and 15208 series feature sets, including the exclusive decorative stitch patterns and accessory configurations found in the 15208 model
• Details critical mechanical assemblies, including the bobbin winder spindle, thread take-up lever, presser foot holder, drop feed dogs, sliding buttonhole foot, shuttle hook, and the foot control unit
• Outlines precise settings for specialized techniques like twin needle stitches, darning, monogramming, applique, bar tacking, overcasting, lace work, and the shell stitch

Contents of the Manual

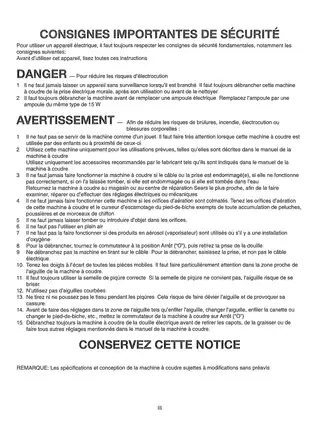

This document details the mechanical setup and daily operation of the machines. It starts with physical machine identification and extension table assembly. Setup overviews clarify power connections, spool pin routing, and needle installation to support consistent stitch quality. The text outlines precise threading paths for both the needle and the bobbin, supported by specific visual aids such as threading path schematics, bobbin winding views, needle and fabric selection charts, stitch pattern displays, and shuttle race assembly drawings. It covers tension adjustments for straight, zigzag, and utility stitches. Additional sections explain specialized sewing tasks. These include four-step buttonhole creation using the sliding foot, zipper attachment, and blind hem applications for various fabric weights. For mechanics, having these exact factory tension baselines prevents skipped stitches on stretch fabrics and streamlines workbench diagnostics. Since servicing sewing equipment involves moving mechanical parts and electrical components, always disconnect the primary power supply before opening the face cover or performing shuttle race maintenance.

Technical Specifications and Adjustments

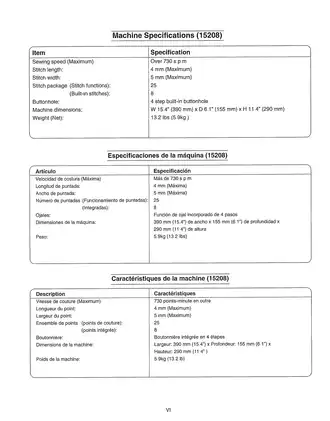

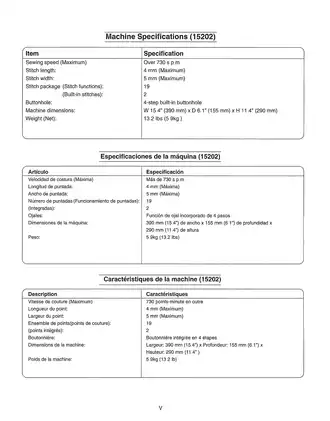

Technical reference values are organized by model configuration, providing exact capacity and clearance limits. The maximum sewing speed reaches 730 stitches per minute across all variants. Stitch density and buttonhole adjustments are thoroughly detailed, documenting the specific feed dog drop positioning required for the cycle. Dimensional specs confirm the 390 mm width, 155 mm depth, and 290 mm height. The manual defines the 0.5 mm to 5 mm stitch width range, which varies depending on the selected decorative pattern. Crucially for DIYers looking to avoid a costly trip to the repair shop, the manual features step-by-step instructions for essential upkeep. These procedures include dismantling the shuttle hook assembly, clearing packed lint from the feed dogs, replacing the internal 15W light bulb, adjusting bobbin thread tension, and accessing internal oiling points. Maintenance data provides precise guidelines for shuttle race cleaning and required oiling points located behind the face cover. These specifications deliver the exact operational baselines necessary for maintaining the 15202 and 15208 sewing machines.
