Komatsu WA380-3 Wheel Loader Shop Manual, 2000 (P/N VEBM460104)
946 Pages • 1 Printable PDF (English) • Download
Komatsu Models Covered & Key Technical Specifications
Model: WA380-3
Sub-models / Variants: High-Lift (WA380-3H), HD bucket, light material bucket
Model Years: 2000
Serial Numbers: WA380H20051 and up
Main control valve serial ranges: Up to WA380H20383; WA380H20384–WA380H20836; WA380H20837 and up
Work equipment hydraulic diagram serial ranges: Up to WA380H20383; WA380H20384–WA380H20500; WA380H20501–WA380H20836; WA380H20837–WA380H20986; WA380H20987 and up
Brake circuit serial ranges: Up to WA380H20338; WA380H20339–WA380H20470; WA380H20471 and up
Emergency steering serial ranges: Up to WA380H20836; WA380H20837 and up
Suspension control serial ranges: ECSS up to WA380H20356; ECSS Plus WA380H20357–WA380H20383; ALS WA380H20384 and up
Monitor switch changes: Automatic/manual transmission selector from WA380H20951; work-mode selector from WA380H20987
-
Engine model: Komatsu S6D108 (up to WA380H20500) or S6D114E1 (also written S6D114E-1; WA380H20501 and up)
-
Operating weight: 17,420–17,710 kg (standard); 18,755–18,835 kg (High-Lift, up to WA380H20500)
-
Engine power: 140–141 kW (190–192 PS)
-
Bucket capacity: 3.0–3.4 m³ (standard); 3.0–3.2 m³ (High-Lift, up to WA380H20500); 2.8–3.0 m³ (HD); 4.5 m³ (light material)
-
Rated load: 5,400 kg
-
Maximum travel speed: 37.0 km/h forward; 38.0 km/h reverse
-
Electrical system: 24 V, 50 A alternator, 12 V 134–143 Ah batteries
-
Transmission: Spur-gear, constant-mesh, multiple-disc, hydraulically actuated modulation type; 4 forward / 4 reverse speeds; Komatsu TCA37-2A torque converter
Komatsu Manual Features & Selected Content Preview
Komatsu's March 2000 WA380-3 Shop Manual (P/N VEBM460104) covers wheel loaders from WA380H20051 and up, with High-Lift specifications included.
Searching and Reading the PDF
Search and diagram detail: Searchable text runs through the main sections, with embedded bookmarks for chapters and components. Searches can miss some encoded text and drawing labels. Small electrical markings need zooming; the transmission hydraulic schematic remains pixelated when enlarged.
One printable English 946-page PDF, including the cover, seven preliminary pages and 42 numbered insert pages. Blank pages and foldout placeholders are included in that total; no separate supplement accompanies the file.
Engine Checks, Drivetrain Repair and Hydraulic Diagnosis
The following is selected coverage, not a complete contents list. Other subjects include center-hinge bearing service and cab removal.
-
Engine and cooling: Valve-clearance and injection-timing adjustments, compression and blow-by testing, turbocharger checks, and removal/installation of the engine, cylinder head, radiator and water pump.
-
Transmission and axles: Step-by-step instructions for torque-converter and transmission disassembly, clutch-pack assembly, differential service and axle housing repair, with final-drive inspection standards.
-
Steering and brakes: Orbit roll and steering-valve service, emergency steering, brake-pressure testing, wet multiple-disc brake wear checks, parking-brake work and brake bleeding.
-
Work hydraulics: Main control valve and PPC valve rebuilding, hydraulic/steering pump assembly removal, cylinder repair, drift testing, and bucket-positioner and boom kick-out adjustment.
-
Electrical diagnosis: Main and maintenance monitor troubleshooting, transmission-controller fault charts, connector pin arrangements, and ECSS/ALS suspension control diagnosis.
-
Air conditioning: Fault diagnosis, evacuation and charging, compressor oil checks, and removal/installation of the compressor, condenser and receiver.
Komatsu prepared this manual for service personnel; its pressure tests and heavy component work call for workshop equipment and relevant repair experience.
Engine Builds and High-Lift Coverage
The engine data distinguish S6D108 machines through WA380H20500 from S6D114E1 machines starting at WA380H20501. Separate test specifications support selection of the appropriate valve-adjustment, injection-timing and engine-condition checks.
High-Lift dimension and weight tables apply through WA380H20500. The general section also identifies standard, HD and light material bucket configurations.
Engine procedures cover component removal and reinstallation, including the cylinder head. Complete internal engine overhaul is outside this volume's scope.
Power Train Repair and Assembly Precautions
The TCA37-2A torque converter, transmission control valve and electronic control modulation valve (ECMV) are explained alongside the Transmission Hydraulic Circuit Diagram. Axle descriptions distinguish torque-proportioning and limited-slip differentials.
Clutch-pack instructions identify piston-seal fitting preparation whose omission can damage the seal. The differential/brake assembly procedure also warns that hammering the brake piston can damage the piston and its D-ring.
Hydraulic Variants, Steering and Brake Circuits
Main control valve designs are separated at WA380H20384 and WA380H20837. The Work Equipment Hydraulic System Diagrams and Brake Circuit Diagrams identify their applicable serial ranges, helping you select the correct circuit before fault tracing.
Steering descriptions explain demand valves and overload relief valves, with separate emergency-steering arrangements before and from WA380H20837. Steering, boom and bucket cylinder procedures are supported by pressure-test data and component inspection limits.

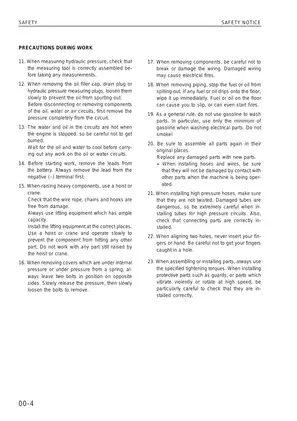

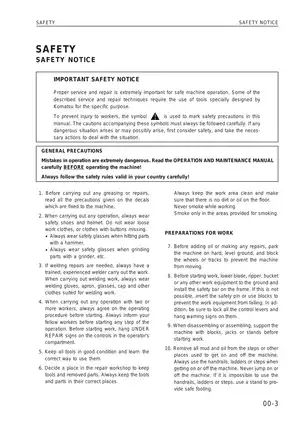

Observe the manual's precautions for stored hydraulic pressure, raised work equipment and heavy lifts.
Fault Codes, Connector Tests and Wiring Limits
A-mode charts connect transmission-controller failure codes to solenoid, sensor, power-supply and network tests. S mode addresses engine symptoms; T mode covers chassis problems such as shift shock and boom or bucket drift. D mode handles ECSS faults, including model-selection checks.
Electrical references include the Engine Starting Circuit, Kick-Down Electric Circuit Diagram and Connector Pin Arrangement Diagram. Component cross-sections, dimensional drawings and hose-routing views provide context for repair.
Missing foldouts: The main machine-wiring foldouts and referenced air-conditioning foldouts are absent from this file. Their insertion notices remain; individual system circuits and wiring legends are included.
Service Specifications and Special Tools
Fluid-capacity and viscosity tables cover the engine, transmission and axles. Maintenance standards supply clearances and wear tolerances; the bolt-size torque list gives Nm, kgm and lbft values, including precautions for plastic fastening points.
Test-equipment lists identify brake test kit 793-605-1001. Assembly-tooling pages specify the seal-fitting tools used for transmission clutch packs.
Valve-Clearance and Cylinder-Wear Examples
Cold valve-clearance specifications are 0.34 mm intake and 0.66 mm exhaust for the S6D108. The S6D114E1 values are 0.30 mm intake and 0.61 mm exhaust.
The hydraulic-cylinder maintenance table lists piston-rod-to-bushing clearance limits of 0.693 mm for the boom and bucket cylinders and 0.539 mm for the steering cylinder.
