Komatsu WA250-3 Wheel Loader Shop Manual 1995–2005 (P/N SEBM005908)

Komatsu shop manual P/N SEBM005908 covers the WA250-3 wheel loader, Serial No. 50001 and up. This is the chassis volume, © 2005, printed 08-05. Full engine details are covered in the separate 95 and 102 Series Engine Shop Manuals, which are not included.

Text Search, Bookmarks and Circuit Sheets

Navigation and wiring detail: Text search is available on only part of the file. Most repair pages and the labels within the electrical drawings are not searchable. Embedded bookmarks link to the main sections and many individual procedures. Small connector numbers and wire codes on the large-format circuit sheets require zooming.

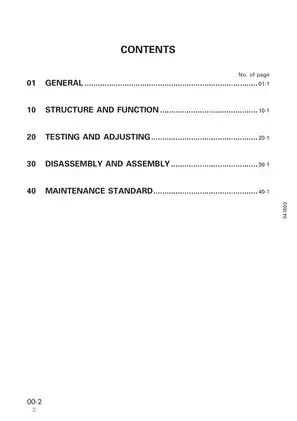

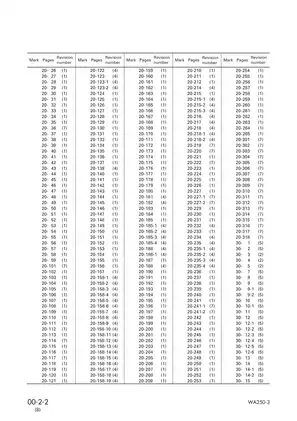

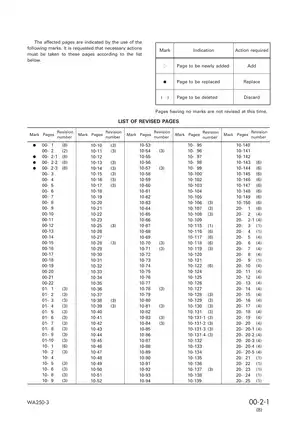

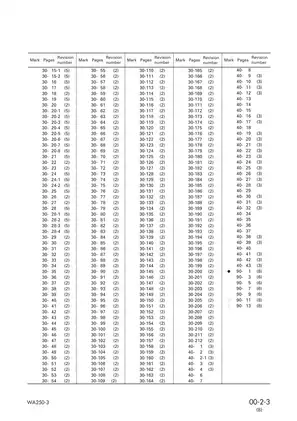

The download contains one printable English PDF with 740 pages, including 25 pages of front matter and six large-format electrical circuit sheets.

Engine Service, Powertrain Overhaul and Control-System Diagnosis

The following is a selection from the manual, which also includes counterweight and fuel-tank removal.

• Engine testing and service: Valve-clearance adjustment, compression testing, injection timing, blow-by and boost checks, plus engine and cylinder-head removal and installation.

• Fuel and cooling systems: Removal and installation procedures for the injection pump, nozzle holders, turbocharger, oil cooler, water pump, thermostat and radiator.

• Powertrain repair: Torque-converter and transmission removal, internal disassembly and assembly, clutch-pack overhaul, drive-shaft service, and differential and axle-housing repair.

• Hydraulics and steering: Pressure tests, steering-valve and main-control-valve service, hydraulic-cylinder overhaul, and bucket positioner and boom kick-out adjustment.

• Brakes and chassis: Brake-disc wear checks, brake-system bleeding, parking-brake and power-master-cylinder overhaul, and center hinge pin and cab removal.

• Electrical troubleshooting: Starting and preheating fault charts, main and maintenance monitor diagnosis, transmission-controller tests, wiring diagrams, and connector and pin-location views.

Written for service-workshop personnel, this manual uses hydraulic test equipment, electrical measurements and lifting tools for heavy assemblies.

Engine Variants and Service Limits

Engine troubleshooting separates the S6D95L-1, Serial No. 50001–52999, from the S6D102E-1, Serial No. 53001 and up. The earlier configuration uses an engine stop motor and Quick Glow System; the later configuration has a stop solenoid and electrical intake-air heater.

The chassis volume provides selected engine testing and adjusting procedures and step-by-step instructions for removing and installing engine assemblies and related components. Attachments and optional equipment may vary by market, so the installed configuration matters when choosing a procedure.

Transmission, Axles and Final Drives

The Path of Power Transmission drawing follows power through the TCA32-7A torque converter, transmission, center/front/rear drive shafts, axles and planetary final drives. The transmission uses six hydraulically actuated clutches to provide four forward and four reverse ranges.

The Torque Converter, Transmission Hydraulic Circuit Diagram supports the valve and clutch descriptions. Axle sections explain the straight-bevel-gear differential, torque-proportioning function, wet-disc service brakes, axle mounting and transmission-output parking brake.

Step-by-step overhaul procedures extend to the transmission control valve, solenoid valve and accumulator valve. Differential assembly includes bearing preload, backlash and tooth-contact checks; axle-housing assembly includes bearing and end-play adjustment.

Steering and Work-Equipment Hydraulics

The Steering, Hydraulic Pump Hydraulic System Diagram traces the pump arrangement through the priority valve, orbit-roll steering valve and work-equipment circuit. Structure sections distinguish two-spool and three-spool main control valves and explain the safety and suction valves.

Cylinder repair covers the boom, bucket and steering cylinders. The bucket positioner and boom kick-out sections connect proximity-switch operation with the related linkage checks and adjustments.

Electrical Fault Tracing and Auto Shift

Troubleshooting is organized into S, T, E, M, K and A modes for engine, chassis hydraulic/mechanical, electrical, main monitor, maintenance monitor and transmission-controller faults.

Connector locations, pin arrangements, resistance and voltage checks, and YES/NO charts connect symptoms to causes and remedies. These references support fault isolation between wiring, sensors, solenoids and controllers before components are selected for repair or replacement.

The main-monitor trouble-data system identifies action codes, failure codes and elapsed time since a recorded failure. Transmission-controller charts address F, R, H-L and speed solenoids, directional and gearshift levers, travel- and engine-speed signals, cut-off, neutralizer, buzzer, network and controller-power faults.

Named drawings include the Kick-Down Electric Circuit Diagram and the Transmission Auto Shift Control System structure diagram. Electrical Circuit Diagram (1/2) and (2/2) sheets cover Serial No. 50001–53000 and 53001 and up, with separate auto-shift sheets for the later range. Speedometer-module adjustment is also included.

Workshop Tools, Inspection Data and Repair Cautions

Special-tool tables identify the 799-203-8001 multi-tachometer, 799-101-5002 analog hydraulic tester and 799-601-7400 T-adapter kit. Transmission tools include lifting tool 793-305-1600 and F/R and 1st–4th clutch piston-seal tools 793-415-1140 and 793-415-1130.

Maintenance standards provide inspection dimensions, clearances and wear limits. Tightening tables cover metric bolts and nuts, flared nuts, split-flange bolts, O-ring boss piping joints and plugs, and hydraulic hoses. Air-conditioner coverage includes unit, condenser, dry-receiver and compressor removal and installation.

Transmission teardown cautions identify seal-ring damage during rear-housing removal, while the auto-shift section explains clutch-damage protection during direction changes. The work-equipment fault table also identifies a return-side short to power in the bucket tilt/dump solenoid wiring as a condition that can burn out the controller.

For hydraulic or heavy-component repair, the manual requires residual pressure to be released, work equipment to be lowered or securely blocked, and heavy parts to be properly supported or hoisted before components are disconnected or removed.

Selected Engine, Hydraulic and Refill Data

The engine specification tables list 97 kW at 2,400 rpm for the S6D95L configuration and 96 kW at 2,400 rpm for the S6D102E-1. The TCA32-7A converter section specifies a 2.84 stall torque ratio.

Hydraulic specifications list 175 L/min pump delivery, a 20.6 MPa work-equipment setting for the two-spool control valve, and an 18.6 MPa setting for the orbit-roll steering circuit.

Capacity data distinguishes total system capacity from normal refill quantity. The transmission case is listed at 35.0 L total / 30.0 L refill, while the hydraulic system is 90.0 L total / 64.0 L refill.
