1990–1999 Ford 4130 Tractor Illustrated Parts Catalog
603 Pages • Printable PDF • Download • 8.28 MB
Ford Models Covered & Key Technical Specifications
Model: 4130
Sub-models / Variants: All Purpose, L/CAB, W/CAB, 2WD, 4WD
Model Years: 1990–1999 (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)
Serial Numbers: Component-specific breaks: up to and including A401896 (16 x 8 PTO shaft); A436529 onward (rear axle components); 126606B onward (8 x 2 transmission harness)
-
Engine type: 3-cylinder
-
Wheel sizes supported: 16, 18, 19, 20, 24, 26, 28, 30, 32, 34, 36, 38 inch
-
Power steering pump type: Gear-driven
-
Transmission types: Synchronized, Non-synchronized
-
Brake configurations: 3-plate, 4-plate, handbrake, trailer brake, transmission handbrake
Ford Manual Features & Content Preview
This illustrated parts catalog covers the 1990–1999 Ford 4130 All Purpose tractor, with exploded views, part numbers, quantities, and application notes. It is a parts-identification reference; it does not provide step-by-step repair or overhaul procedures.
-
Engine and fuel system: Cylinder block and head, crankshaft, valve train, pistons, and upper- and lower-half breakdowns of the DPA rotary injection pump.
-
Transmission and PTO: Illustrated parts breakdowns for synchronized and non-synchronized transmissions, independent PTO clutches, Dual Power shift controls, and the creeper reduction gearbox.
-
Axles, steering, and brakes: Front transfer case, planetary final drives, steering gears and pumps, brake controls, handbrake linkages, and trailer brake components.
-
Hydraulic assemblies: Lift and draft controls, flow control valve components, auxiliary service control valves, hydraulic pumps, and remote valve assemblies with couplers.
-
Electrical components: Main, rear, and transmission harness layouts, starter and alternator breakdowns, plus trailer and auxiliary socket wiring views.
-
Cab and chassis: Cab doors, glazing, heater components, Bostrom and Grammer seats, ROPS frame assemblies, wheel hardware, and hitch parts.
Suited to mechanics and experienced owners who can match an illustrated assembly and its application notes to the equipment fitted to their tractor.
Assembly and Component Breakdown
Front axle pages distinguish high- and low-clearance spindles. Steering drawings separate manual and power-assisted gear assemblies from the tilt-column components used on W/CAB configurations.
Transmission sections distinguish 8x8 and 16x8 synchronized layouts from the 8x2 non-synchronized design. Their drawings identify shafts, gears, clutch components, shims, and retaining rings without supplying assembly sequences or adjustment procedures.
Rear axle center-housing entries include casting references alongside replacement part numbers. Wheel listings distinguish rim dimensions, disc designs, and mounting hardware; brake controls have separate cab and non-cab applications.
Application Notes That Affect Parts Selection
The steering motor section records internal component changes under the unchanged assembly number E9NN3A244BA. Separate spring and seal-kit entries help distinguish those versions before ordering replacement parts.
For the 16x8 transmission's PTO propeller shaft, the catalog specifies service kit FP494 when replacing shaft 82006383 on tractors up to and including serial A401896.
Shared tables also reference other tractor models. Those references identify individual part applications and do not extend the complete catalog's coverage to every model named.
The auxiliary loader pump kit entry directs hose selection to a separate loader parts catalog. Its pump and mounting parts are shown here.
Electrical Views and Hardware Identification
The electrical pages show component locations and harness arrangements. Trailer and auxiliary socket wiring views distinguish NH-NA and NH-E installations; they do not constitute a complete tractor circuit-diagram or electrical troubleshooting manual.
Fastener entries provide thread sizes and grades, while seal listings include dimensions. The hardware conversion appendix excludes mixing metric and inch threads in existing nuts or tapped holes, which can damage the mating threads.
Before working on hydraulic or driveline components, release stored pressure and support heavy assemblies securely.
Selected Spindle and Seal Dimensions
These examples are a small selection of the component-identification data in the catalog.
For the June 1993–May 1994 front axle entries, the left-hand high-clearance spindle is listed at 12.2 inches and the low-clearance version at 8.5 inches. The figure note identifies the comparison as the spindle portion fitting into the axle.
The power-steering pump and reservoir list specifies O-ring 9617873 as 90 Duro, with a 0.468-inch inside diameter and 0.078-inch thickness. These are catalog dimensions, not service clearances.
PDF Search, Navigation, and Page Breakdown

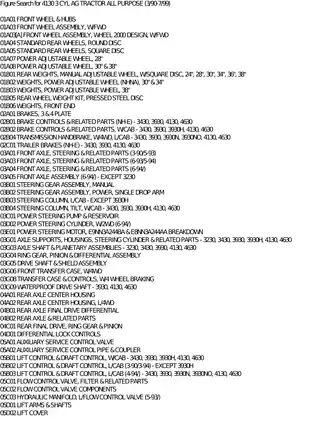

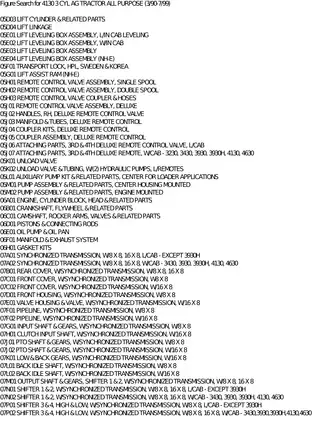

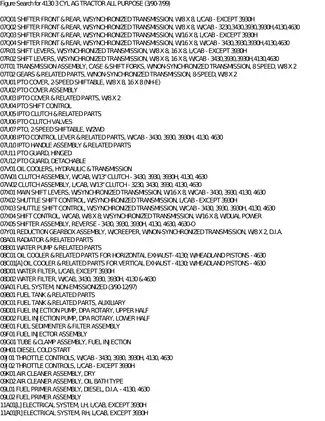

Search and illustration detail: Parts lists and figure headings are searchable; labels inside the drawings are not. Bookmarks provide broad navigation to the index, catalog start, and reference sections. Small electrical drawing labels benefit from enlargement, while the finest terminal details in the socket views remain indistinct.
The download is one printable, 603-page PDF: 579 catalog pages, a five-page figure index, one figure-search instruction page, 14 abbreviation pages, two hardware-conversion pages, one additional front page, and one blank page. All supplemental pages are included in that total.
