1983–1992 Ford 8630 Tractor Parts Catalog

This illustrated parts catalog covers the 1983–1992 Ford 8630 tractor, with shared-assembly listings for related Ford models identified in individual figures. It provides exploded views and parts tables for identifying components during repair planning.

• Engine and fuel system: Cylinder block, crankshaft, pistons, valve gear, fuel injection pump, injectors, and turbocharger breakdowns with application notes.

• Axles, steering, and brakes: APL-355 and Dana axles, wheel assemblies, steering motors, pump/reservoir assemblies, power steering cylinders, differential locks, and brake components.

• Transmission and PTO: Dual Power and powershift assemblies, speed and range clutches, creeper gears, PTO clutch components, and transmission controls.

• Hydraulic equipment: Engine-mounted pumps, hydraulic lift cylinders, draft controls, assist rams, and remote control valve assemblies with illustrated parts lists.

• Electrical equipment: Harness layouts, starting motors, alternators, mechanical and electronic instrument clusters, and powershift control modules with component references.

• Cab and operator equipment: Grammer and Bostrom seats, suspension assemblies, cab mountings, glazing, heater components, and air conditioner compressors.

Suited to parts staff, technicians, and experienced owners who can match assembly illustrations to the equipment installed on their tractor.

Axles, Drivetrain, and Replacement Notes

Figure numbers connect the drawings to part numbers, quantities, and application notes. Adjustable front axles and front/rear wheel assemblies have separate drawings, with related bearings, shims, snap rings, planetary gears, and thrust washers identified in the parts lists.

The APL-355 hub, spindle, and planet-gear view (03Q02) is separate from the Dana carrier-assembly view (03U03). Each axle system has its own transfer-case coverage. Serial references distinguish universal-joint kits and powershift control-valve screens, helping you check the applicable replacement before ordering.

Replacement compatibility: APL-355 transfer-case noise-abatement kits specify different idler bearings. Dual Power clutch entries also link certain replacement plates to changes in the associated plate set; these notes help identify components that must be considered together.

The hardware appendix cautions against mixing inch and metric fasteners at threaded connections, where mismatched threads risk damage.

Creeper coverage: The powershift creeper section lists parts for transmissions already equipped with a creeper. It explicitly states that a conversion kit for a non-creeper transmission is not available.

This is a parts reference, not a workshop repair manual. Exploded views identify components and their relationships but do not provide teardown sequences, overhaul procedures, or adjustment instructions. Use a dedicated service manual for safe disassembly and reassembly of heavy tractor components.

Engine and Hydraulic Parts Identification

Engine listings distinguish piston and bearing sets by model, size, and crankshaft/connecting-rod combination. The fuel injection pump view (09C01) and turbocharger breakdowns identify internal components; water-pump listings include repair-kit contents.

Hydraulic illustrations cover pump assemblies, lift linkage, lift cylinders, and single- and double-spool remote valves. The power-brake valve listings distinguish versions with and without a baffle and require that distinction when selecting gaskets and repair kits.

Electrical and Cab Equipment

The electrical pages separate cab and non-cab equipment and mechanical and electronic instrument clusters. The rear powershift electrical layout (11B05) identifies the transmission control module, display, harness, and limp-home control components. These are harness and component-location drawings, not electrical circuit schematics or troubleshooting charts.

Seat coverage distinguishes Grammer DS85, Grammer LS95 air suspension, and Bostrom assemblies. Air-conditioning pages identify the Sanden compressor and clutch components alongside condenser, evaporator, hose, and heater assemblies.

Selected Seal and Pump Plug Dimensions

These examples are a small selection of the catalog's component-identification dimensions.

Transfer-case O-ring 9626930 in Figure 03R08 is listed with a 1.720-inch inside diameter and 0.118-inch thickness. Engine-mounted hydraulic-pump listings distinguish a 63.5 mm dome-center plug from a 59.85 mm flat-center plug.

These are part-identification dimensions, not wear limits or workshop adjustment settings.

PDF Search and Reference Navigation

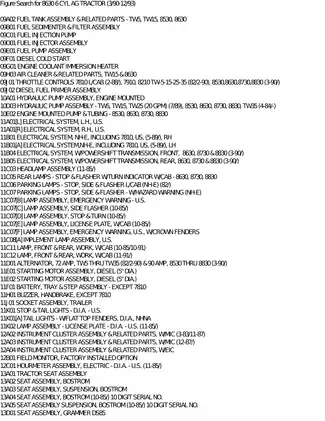

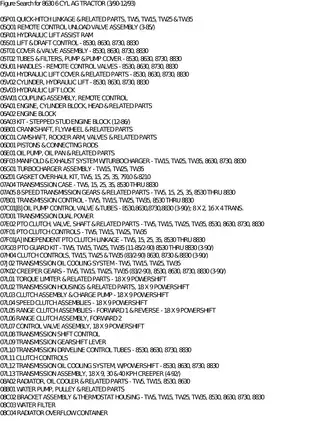

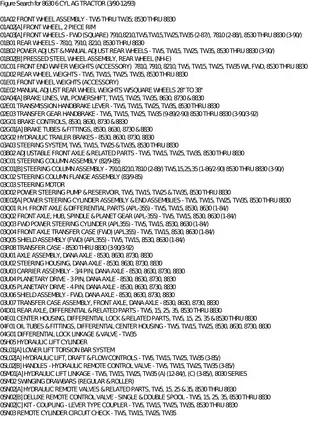

Searchable listings and section bookmarks: Figure headings, part numbers, descriptions, and reference text are searchable; labels within the illustrated images are not. Embedded bookmarks open the search guide, figure index, main catalog, and reference sections, rather than every individual assembly.

Supplied as one printable 540-page PDF: 517 catalog pages, a 4-page figure index, 14 pages of abbreviations, and 2 pages of hardware conversions. The total also includes one introductory page, one figure-search instruction page, and one blank page; these pages are already included in the 540-page count.
