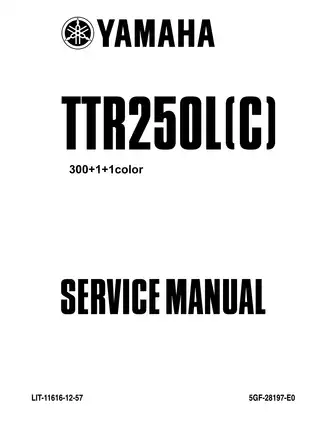

1999–2006 Yamaha TTR250L(C) Service Manual (P/N LIT-11616-12–57, 5GF-28197-E0)

• Exact coverage and document identity: 295-page PDF for the Yamaha TTR250L and TTR250LC, identified by Yamaha as TTR250L(C) with model codes 5GF1 and 5GF2. First edition, January 1999; Yamaha literature number LIT-11616-12-57 and cover code 5GF-28197-E0.
• Full engine removal and overhaul coverage runs from cylinder-head, camshaft, valve-train, timing-chain, cylinder, and piston work through crankshaft, balancer, clutch, oil-pump, transmission, shifter, and electric-starter-drive repair.
• Periodic service and fuel-system procedures cover valve-clearance pad selection, ignition-timing and compression checks, oil-pressure inspection, clutch adjustment, air-filter and spark-arrester service, plus carburetor removal, disassembly, inspection, assembly, fuel-level setting, and throttle-valve positioning.
• Chassis repair sections address wheel removal and static balancing, wheel bearings and seals, hydraulic brake bleeding, caliper and master-cylinder rebuilding, front-fork teardown, steering-head service, swingarm/linkage inspection, and drive-chain and sprocket replacement.
• Electrical diagnosis is organized by system, with circuit diagrams and test charts for ignition, starter interlocks, starter motor, charging, and lighting, backed by connector checks, component-location views, resistance specifications, and full fault-isolation sequences.
• Shop reference material provides assembly-specific torque tables, capacities, wear limits, clearance and adjustment data, lubrication points, cable-routing drawings, exploded views, a complete wiring diagram, and Yamaha special-tool names with part numbers.

Factory Repair Scope for the 5GF1/5GF2 Models

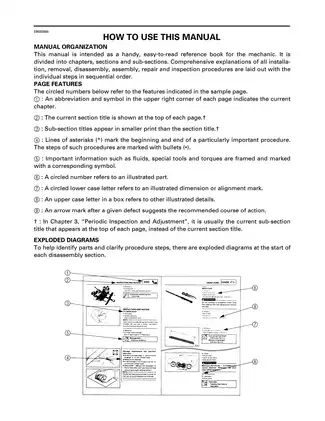

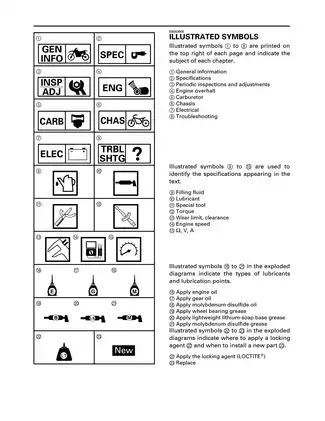

This Yamaha service manual is arranged as an eight-chapter workshop reference rather than an owner-level maintenance booklet. It begins with motorcycle identification and special tools, then moves through specifications, scheduled inspection and adjustment, engine overhaul, carburetor work, chassis repair, electrical diagnosis, and symptom-based troubleshooting. Exploded assembly views open the major disassembly sections, while the surrounding text supplies inspection criteria, replacement limits, tightening sequences, lubricant callouts, and final adjustment checks.

The model assignment matters. The specification tables consistently identify TTR250L(C) and list the 5GF1/5GF2 model codes. That makes this publication a direct factory reference for those configurations, rather than a generic TT-R250 guide assembled from mixed model years.

Engine, Fuel System, and Transmission Work

The engine chapter follows the job from removal through complete teardown, inspection, repair, reassembly, and remounting. Cylinder-head work covers valve-seat condition, valve-guide service, spring inspection, camshaft and cap clearance, valve-lifter checks, timing-chain components, and pad selection for valve-clearance correction. Bottom-end coverage reaches the crankshaft, balancer timing, crankcase separation and joining, bearings and seals, transmission shafts and gears, shift forks and cam, clutch pack, oil pump and strainer, rotor, starter gears, and one-way starter clutch.

Carburetor coverage goes beyond cleaning notes. The manual identifies the Teikei Y30P unit and documents diaphragm, throttle valve, jet, needle, float, needle-valve, starter-plunger, fuel-level, and throttle-position inspection and adjustment. The related troubleshooting chapter connects hard starting, poor idle, and weak midrange or high-speed performance to the fuel, ignition, compression, and valve-train checks elsewhere in the book.

Chassis, Suspension, Brakes, and Electrical Systems

Wheel chapters include bearing and seal replacement, spoke and rim inspection, axle checks, tire handling, and static balance correction. Brake repair covers pad replacement as well as front and rear caliper and master-cylinder disassembly, inspection, assembly, hose routing, filling, and bleeding. The front fork receives full removal, internal disassembly, seal and bushing inspection, damper-rod work, oil filling, installation, and damping adjustment coverage.

The rear shock has an important scope limit: Yamaha documents handling, removal, inspection, installation, and disposal precautions, but specifically warns against disassembling the pressurized nitrogen unit. Swingarm, relay-arm, connecting-rod, and Polylube-bearing service are covered separately.

Electrical sections provide dedicated circuit and diagnostic charts for the CDI ignition, neutral/clutch starter interlock, starter motor, AC-magneto charging system, rectifier/regulator, headlight, high-beam indicator, and taillight. The final troubleshooting chapter also covers gear jump-out, clutch slip or drag, overheating, poor braking, fork leakage or malfunction, unstable handling, and lighting faults.

Tools, Diagrams, and Assembly Cautions

Named factory tools include the crankcase separating tool YU-01135-A, rotor puller 2K7-85555-00, valve spring compressor YM-04019, damper rod holder YM-01418, dynamic spark tester YM-34487, and pocket tester YU-03112. Useful illustrations include the engine lubrication diagram, valve-pad selection chart, TTR250L(C) circuit diagram, system-specific ignition/starting/charging/lighting schematics, multi-view cable routing, and the full wiring diagram.

Several cautions are tied to real repair damage. Camshaft-cap fasteners must be loosened and tightened evenly to avoid damaging the cylinder head, caps, or camshafts, and the crankshaft must not be rotated during camshaft installation because valve timing can be disturbed. Brake and suspension work carries fluid, stored-pressure, and motorcycle-stability hazards; the manual assumes the user already understands basic motorcycle repair practice.
