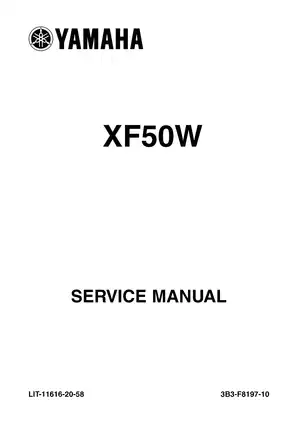

2006 Yamaha XF50W Scooter Service Manual (P/N LIT-11616-20-58)

This Yamaha XF50W service manual documents periodic maintenance, mechanical repairs, and system-level diagnostics for the 2006 scooter. P/N LIT-11616-20-58, first edition September 2006, carries the additional cover code 3B3-F8197-10.

Searchable Text, Bookmarks, and Wiring Detail

Search and diagram navigation: Text search is available across the main chapters, with embedded bookmarks to sections and individual procedures. Lettering within wiring diagrams is only partly searchable, and small connector numbers and wire-color codes require zooming.

The download contains one printable, 338-page PDF in English. That total includes 330 pages of workshop chapters, six front-matter pages, one rear-cover page, and a one-page color wiring diagram.

Engine, Belt Drive, and FI Service Coverage

• Engine repair: Engine removal, cylinder-head service, valve and piston inspection, crankshaft checks, and oil-pump disassembly and assembly.

• Belt drive: V-belt replacement, primary- and secondary-sheave inspection, clutch-shoe checks, and secondary-sheave disassembly and reassembly.

• Chassis service: Front-fork rebuilding, steering-head adjustment, front and rear drum-brake inspection, wheel-bearing service, and wheel balancing.

• Cooling system: Radiator testing, thermostat inspection, coolant replacement, and water-pump seal, bearing, and impeller-shaft service.

• Fuel injection: ECU fault-code diagnosis, diagnostic-mode tests, fuel-pressure checks, and throttle-position sensor and ISC-valve inspection.

• Electrical troubleshooting: Ignition, starting, charging, lighting, and signaling tests supported by circuit diagrams, cable-routing drawings, and wiring references.

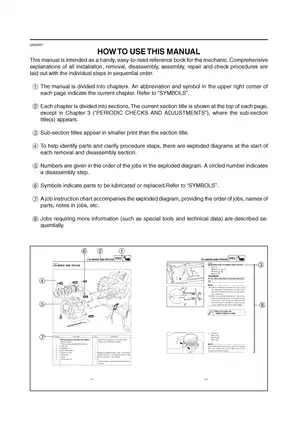

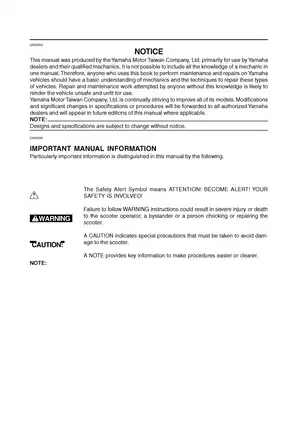

Written primarily for Yamaha dealers and their qualified mechanics, this manual assumes a basic understanding of mechanics and scooter repair techniques.

Engine Repair and Belt-Drive Assembly

Engine coverage extends beyond routine checks to valve-seat inspection, piston-ring measurements, crankcase separation, and crankshaft installation. Valve-pad selection tables support clearance adjustment, while assembly illustrations identify timing marks and the cylinder-head tightening sequence.

The belt-drive section documents primary-sheave weights, sliders, clutch shoes, and the secondary-sheave spring assembly. Its special-tool references include clutch spring holder 90890-01337, with US tool references YM-33285 and YM-33285-6.

Starter-clutch and AC magneto removal and installation have their own procedures. The starter clutch nut has a left-hand thread; treating it as a conventional fastener can damage the threads.

FI Fault Codes and Throttle-Body Tests

The self-diagnostic function table connects ECU fault codes with symptoms and operating conditions. Troubleshooting details add likely causes, connector and wiring checks, and reinstatement methods, helping a mechanic distinguish a circuit fault from a component problem.

Diagnostic-mode procedures use Yamaha FI diagnostic tool 90890-03182 (YU-03182) to monitor sensor outputs, activate components, and access stored fault history. Fuel-pump and pressure-regulator tests accompany throttle-position sensor and ISC-valve checks.

The fuel pump is not intended for internal disassembly. Specified ISC faults call for throttle-body replacement, and the manual cautions against removing the ISC valve unit completely. Battery and main-fuse service sections also address ISC initialization.

Fork, Steering, and Cooling Repairs

Step-by-step instructions cover front-fork disassembly, seal replacement, reassembly, and steering-head adjustment. Chassis references include brake-drum and shoe wear checks, wheel runout, rear-wheel drive-hub inspection, and static balancing.

Cooling system diagrams identify hose connections and component relationships. The repair sections cover radiator-cap and leak testing, thermostat testing, coolant replacement and bleeding, and water-pump assembly. Water-pump seal installation includes its own tool and lubrication requirements.

Wiring References and Electrical Fault Tracing

Troubleshooting electrical faults is supported by wiring diagrams and cable-routing charts for tracing pathways and identifying connections. Ignition and charging circuit diagrams supplement the diagnostic tables, while the final color XF50W wiring diagram provides a separate harness reference.

Electrical checks also cover starter-motor components, switches, bulb sockets, the rectifier/regulator, and the coolant-temperature indicator circuit.

Working with pressurized fuel lines, rotating components, or live electrical harnesses involves physical risks. Follow the manual’s safety precautions, wear suitable protective equipment, and securely support the scooter before service.

Valve, Sensor, and Fastener Specification Examples

Cold intake-valve clearance is specified at 0.10–0.16 mm, with valve-pad selection tables for adjustment. Cylinder-head nuts are listed at 10 Nm, accompanied by lubrication, tightening-sequence, and two-stage tightening notes. The rear-wheel shaft specification is 120 Nm.

For ignition diagnosis, crankshaft position sensor resistance is specified at 248–372 ohms at 20°C (68°F), between the white/red and white/blue leads. The ignition troubleshooting section places this measurement alongside the related circuit checks.
