2003–2007 GAS GAS EC FSE 400/450 Service & Maintenance Manual

This is the December 2002 GAS GAS Motos, S.A. service manual for the 2003 GAS GAS EC FSE 400 and EC FSE 450. Its focus is operation, maintenance, chassis adjustment, and preliminary troubleshooting rather than complete internal repair.

Searchable PDF and Included Pages

Text search and navigation: The PDF has searchable text throughout, but no embedded bookmarks. Most text is English; some notes and the final lighting troubleshooting entries remain in Spanish.

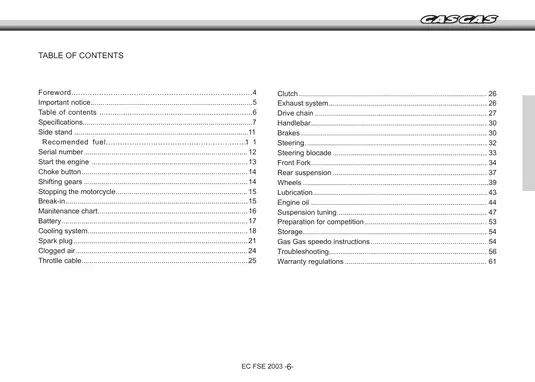

The manual comes as one printable 60-page PDF. That total includes the cover, three introductory pages, and two warranty pages.

Routine Service, Suspension Setup, and Fault Finding

These selected topics cover the main service areas. The manual also includes handlebar-position adjustment and speedometer clock, trip, and unit-setting instructions.

• Routine maintenance: Step-by-step instructions for oil and filter replacement, coolant changes, spark-plug access, and air-cleaner servicing, plus radiator and hose inspections.

• Battery and controls: Battery removal, voltage checks and charging instructions, throttle-cable adjustment, and hydraulic-clutch lever adjustment.

• Final drive and exhaust: Drive-chain adjustment, wheel alignment, chain-guide and slider inspection, sprocket wear checks, and silencer repacking.

• Brakes, steering, and wheels: Brake-control adjustment, fluid-level and pad-wear checks, steering-play correction, spoke inspection, and tire bead-lock maintenance.

• Forks and rear shock: Marzocchi, WP, and Öhlins fork specifications, with fork air release, damping adjustment, oil-level service, spring work, and rear-shock preload guidance.

• Competition preparation: Pre-race and post-race checklists, with maintenance considerations for dusty, muddy, wet, and sandy conditions.

• Troubleshooting and reference data: Symptom-based fault tables, maintenance schedules, component-location views, fastener maps, torque tables, lubricant data, inspection limits, and battery test values.

It is best suited to owners with routine maintenance experience or mechanics who can apply specifications and evaluate chassis settings; major internal repairs require additional workshop documentation.

Fuel Injection and Internal Repair Limits

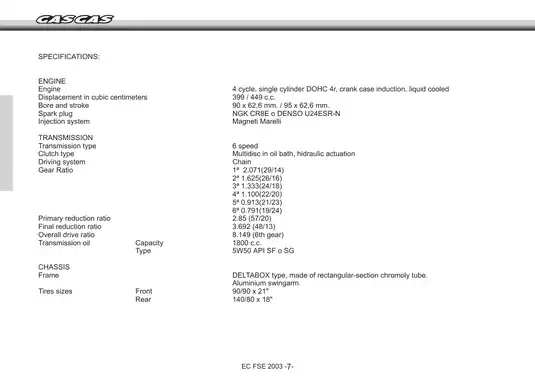

The specifications identify two engine versions with a liquid-cooled DOHC single-cylinder layout, a hydraulically operated wet multidisc clutch, chain final drive, and Nissin disc brakes.

Magneti Marelli injection: Troubleshooting entries refer to the fuel-pump relay, injector mounting, throttle-body bypass, and injection adjustment. They provide initial checks and workshop referrals, without ECU pinouts, diagnostic-code procedures, fuel-pressure testing, or a complete injection-system repair procedure.

Several maintenance, storage, and competition passages retain carburetor, float-bowl, and jetting language. Those passages should not be treated as model-specific EFI instructions.

Internal repair: The manual does not supply complete engine disassembly and reassembly, valve-clearance adjustment, cam-timing procedures, transmission overhaul, or brake-system bleeding instructions. References to these jobs in maintenance or troubleshooting tables do not amount to detailed repair coverage.

Suspension Tuning and Illustrated References

The suspension discussion explains how oil level, spring choice, damping, and fork-tube position affect braking dive, cornering, bottoming, and stability. Its symptom-based guidance helps distinguish setting problems before further changes are made.

Front-to-rear balance checks and advice on recording changes provide a practical framework for evaluating track settings instead of changing several adjustments without a reference.

Illustrated references include component-location views, the numbered bolt-and-nut tightening map, fork oil-level and spring-holder illustrations, rear-shock adjuster views, oil-dipstick and filter-location figures, and speedometer displays. There are no wiring diagrams or electronic schematics.

Service Cautions and Conflicting Specifications

The engine-stopping section warns that using the ignition key instead of the stop button can damage the injection system. The oil-filter section warns that incorrect element positioning can block oil circulation and damage the engine.

The spark-plug service section and general torque table give conflicting tightening figures. That specification needs clarification before spark-plug installation.

Service work involves fuel connections, hot fluids, raised wheels, brakes, and stored suspension-spring energy. Use stable supports and suitable tools; the rear-shock warning specifically describes springs and associated parts being ejected during improper removal.

Examples of Fork Oil-Level and Spark-Plug Data

The front-fork specifications list oil levels of 110 mm for Marzocchi and Öhlins forks and 120 mm for WP forks, measured with the fork compressed and the spring removed. The separate specifications distinguish the settings for the installed fork.

For ignition maintenance, the manual identifies NGK CR8E or DENSO U24ESR-N as standard spark plugs and gives a 0.7–0.8 mm electrode gap.
