2000+ Chinese GY6 49.5cc Scooter Service & Repair Manual (JL50QT-18, JL50QT-X1/8, JL50QT-14)

This service and repair manual covers 2000 and newer Chinese GY6 49.5cc scooters: models JL50QT-18, JL50QT-X1/8, and JL50QT-14 equipped with 4-stroke single-cylinder engines (engine code: LJ139QMB).

Supplied as a 199-page PDF in English, with the main scooter manual and three appendices in one file.

• Engine repair: Engine removal and installation, cylinder-head and valve service, cylinder and piston inspection, crankcase disassembly, and crankshaft checks.

• CVT and final drive: Drive-belt replacement, driving-pulley and clutch inspection, transmission bearing replacement, and starting-lever mechanism service.

• Fuel and lubrication: CVK constant-velocity carburetor disassembly and adjustment, auto-choke testing, automatic fuel-valve checks, and oil-pump inspection.

• Chassis and suspension: Body-panel and exhaust removal, wheel and steering-bearing service, telescopic front-fork disassembly, rear-shock replacement, and drum-brake repair.

• Electrical diagnosis: Wiring schematics, battery and charging-system tests, CDI and ignition-coil inspection, starter-motor repair, and switch continuity checks.

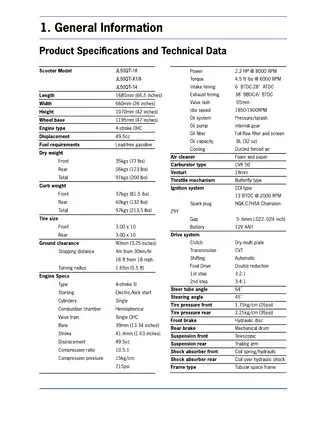

• Service specifications: Tables outlining torque, clearances, and fluid capacities for engine, drivetrain, and chassis components, alongside wear limits and electrical test values.

This manual is suited to mechanics familiar with engine measurement and electrical testing, with access to a multimeter, bearing pullers, and the specified spring compressors.

Cylinder Head, Crankshaft, and Lubricating System

The cylinder-head chapter extends to valve-guide replacement and valve-seat cutting, with camshaft and rocker-arm inspection, valve-clearance adjustment, and cam-chain tensioner assembly. Cylinder and piston checks cover ring grooves, piston-pin clearance, bore taper, and out-of-roundness.

Crankshaft inspection includes connecting-rod clearance, bearing condition, and runout measurements. The crankcase section warns that prying the case halves apart with a screwdriver can damage their sealing surfaces.

Oil-pump coverage includes rotor-clearance checks, disassembly, and installation. The chapter specifies pump replacement when worn.

Maintenance schedule charts and oil and grease supply charts support the routine service sections.

CVT, Clutch, and Final Transmission

Driving-pulley roller measurements, clutch-lining and clutch-housing inspection, and driven-pulley bearing service extend beyond routine belt replacement.

The final transmission chapter covers gear inspection, shaft bearings, oil seals, and reassembly. Starting-lever drawings identify the pivot, return spring, and friction spring.

CVK Carburetor and Fuel Supply

The carburetor procedures address the vacuum diaphragm, float valve, accelerator pump, and air-cutoff valve. Fuel and vacuum-line diagrams show the automatic fuel valve and manifold connections.

The fuel-system chapter warns that cleaning solvents or compressed air can damage the carburetor's vacuum diaphragm. Fuel and electrical work requires the manual's ventilation and battery-isolation precautions.

Wheels, Brakes, Steering, and Suspension

Steering-race replacement, wheel runout checks, and fork spring and seal work are illustrated, along with rear-shock removal and installation.

Front-brake repair instructions describe a drum mechanism; hydraulic-disc brake coverage is limited to fault causes and removal references.

Starting, Charging, and Ignition Diagnosis

The Starter Failure or Hard Starting flowchart separates fuel delivery, spark, and compression checks, helping narrow the cause before components are replaced. An Improper Battery Charging flowchart addresses overcharging and excessive discharge.

Cable-routing drawings and wiring diagrams cover the charging, ignition, and starter circuits, alongside connector views and switch-test charts. The electrical chapters cover regulator/rectifier and magneto-coil tests, starter-relay checks, and starter brush and commutator inspection.

Reference data includes 12V battery tests and NGK C7HSA spark-plug specifications. Fuel-level sender, gauge, and lighting checks are also included.

Electric Scooter Appendix

The 48V, 750W Electric Scooter Assembly appendix covers rear-wheel and motor removal, motor-coil inspection, battery access, and charging for the electric configuration.

PDF Contents and Navigation

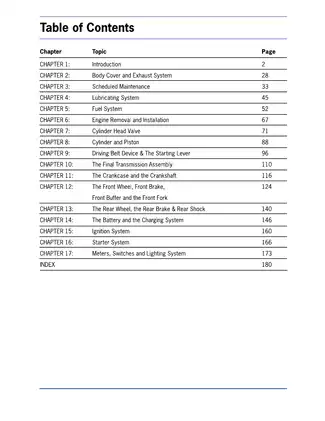

The page total includes one cover, one contents page, 179 pages of GY6 material (including six memo pages), the 16-page electric-scooter appendix, and two one-page exploded views titled Retro Model Scooter Panels and Scooter Panels. The service pages have no searchable text layer, and the PDF has no embedded bookmarks. Small labels in the overall wiring diagram are readable when enlarged.
