2005 Chinese 110cc ATV Service and Repair Manual

• Primary coverage and document set: Covers the four-stroke 110cc ATV110-M. This 144-page PDF contains a 125-page service-and-repair section plus a 19-page owner/safety appendix identifying GA004-I and GA004-II. The core manual is the first edition dated August 2005 and names Chongqing Industries Co., Ltd. as compiler.
• Engine repair procedures: Documents engine removal and teardown of the cylinder head, cylinder, piston, magneto, timing drive, clutch assemblies, oil pump, crankcase, transmission shafts, shift cam and forks, crankshaft, and valve gear, followed by component inspection and measurement.
• Chassis and brake work: Covers front drum-brake and hub service, rear disc-brake and axle removal, steering-column and tie-rod inspection, toe-in adjustment, and front and rear suspension inspection.
• Electrical fault finding: Provides switch-continuity checks, ignition no-spark diagnosis, starter-interlock and starting-motor tests, battery-charging checks, and headlight/taillight troubleshooting.
• Factory reference data: Includes the periodic maintenance chart, body and engine lubrication points, a general fastener-torque table, component-specific torque callouts, wear limits, running clearances, adjustment data, and electrical test specifications.
• Configuration scope: The appended parameter chart compares 50cc, 70cc, 90cc, and 110cc air-cooled four-stroke versions with CDI ignition, electric/kick starting, and chain drive. It lists front hydraulic and rear drum brakes, while the core ATV110-M repair chapters service a front drum and rear disc arrangement. Match the model code and installed brake hardware before ordering; the workshop procedures do not provide separate overhaul chapters for the smaller engines.

ATV110-M Workshop Coverage

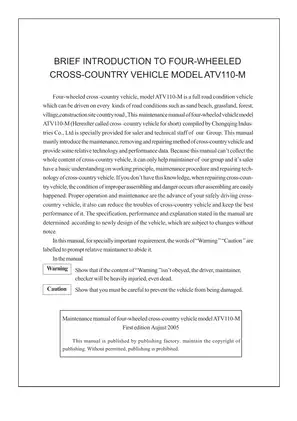

The introduction states that the maintenance manual was prepared for the compiler’s sales and technical staff. Because it assumes familiarity with teardown work, electrical testing, pullers, a valve-spring compressor, and precision measuring tools, it is best suited to experienced mechanics and technicians rather than first-time engine rebuilders.

Routine service extends well beyond the maintenance schedule. The manual covers seat, fender, battery, and fuel-tank removal; brake wear and lever/pedal free-play checks; steering play and wheel toe-in; rear-shock preload; tire and rim inspection; battery and fuse testing; clutch and throttle adjustment; the speed limiter; cold valve-clearance adjustment; ignition-timing inspection; compression testing; and engine-oil flow checks. Lubrication charts identify service points throughout the steering, brakes, suspension, bearings, seals, valve gear, clutch, transmission, and electric-start system.

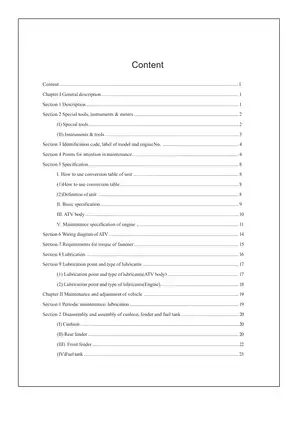

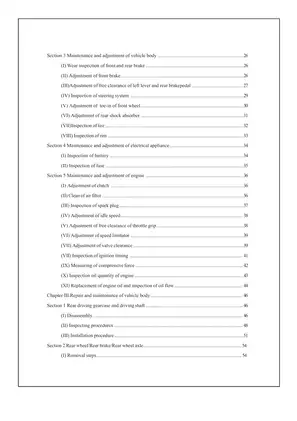

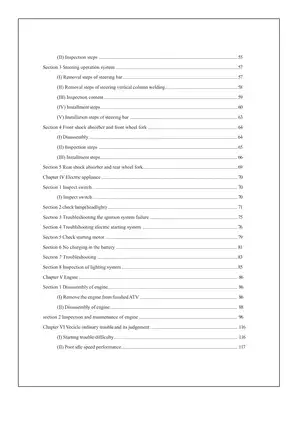

Despite the contents-page reference to a rear driving gearcase and driveshaft, the corresponding Chapter III pages cover the front wheel and front brake. This PDF does not contain a rear-gearcase overhaul chapter.

Engine Teardown and Inspection Depth

After engine removal, the repair section follows the unit through top-end disassembly, magneto and timing-chain removal, clutch and oil-pump access, crankcase separation, and removal of the gearbox and shift mechanism. Inspection coverage includes valve guides and seats, valve sealing, cam and rocker wear, cylinder and piston condition, piston-ring fit, crankshaft and connecting-rod checks, clutch plates and springs, oil-pump rotor clearances, shift forks, shaft runout, gears, bearings, oil seals, and crankcase oil passages.

A continuous, full-engine reassembly chapter is not included. Assembly guidance appears in component cautions and specifications, while the appendix adds a focused camshaft-installation and valve-timing page. Listed service equipment includes the 3 mm valve-adjusting wrench P/N 90890-01311, engine tachometer P/N 90890-03113, ignition timing meter P/N 90890-03141, and pocket multimeter P/N 90890-03112 / YU-03112, along with rotor, crankshaft, rocker-shaft, piston-pin, valve-spring, valve-guide, and crankcase tools.

Diagrams, Troubleshooting, and Repair Cautions

Representative visual references include the ATV cable-and-wire routing layout, starting-circuit schematic, ignition no-spark flowchart, charging-system test chart, paired GA004-I/GA004-II circuit diagrams, and engine/clutch disassembly views.

Front drum-brake repair guidance keeps grease off the friction linings and requires the wear-indicator plate and brake-cam marks to be indexed correctly. Contamination can reduce braking, while incorrect indexing can make the wear indication unreliable. During piston removal, the manual warns against letting the pin clip fall into the crankcase or driving the pin out with a hammer, both of which risk internal damage.

Wheel and axle work requires secure vehicle support. The fuel, battery, and live-circuit sections also carry specific fire, corrosive-electrolyte, and short-circuit warnings.
