2001 Pfaff Select 1520, 1530, 1540 Sewing Machine Service & Parts Manual Set (P/N BP00083)

The service manual provides repair and adjustment procedures, while the parts list supplies exploded assembly views and replacement-part references for the same machines.

Foot-control coverage: Repair procedures address the AE 010 foot control. The parts list identifies AE 020, AE 023, and AE 024 regional versions for parts selection; these entries do not establish additional repair-procedure coverage.

Feed, Stitch Mechanism, and Electrical Service

• Feed-system adjustments: Main toothed-belt tension, feed-dog centering and height, presser-bar setup, top-feed alignment, feed-regulator cranks, stitch-length zero point, and feed-motion timing.

• Automatic stitch mechanisms: Removal and installation of the 1520/1530 automatic module and zigzag unit, plus the 1540 utility-stitch and zigzag units, with model-specific adjustments.

• Stitch formation and tension: Needle-slot alignment, hook clearance and timing, needle-bar height, bobbin-case position finger, needle threader, bobbin winder, thread tensions, check spring, and stitch balance.

• Mechanical repair: Housing removal, needle-thread-tension assembly service, handwheel-release spring replacement, sewing-hook removal, cleaning and lubrication, main toothed-belt replacement, arm-shaft crank adjustment, and bevel-gear replacement.

• Motor and pedal service: UUS 390/UUS 393 motor removal, circuit-board and carbon-brush replacement, motor-pinion and belt work, plus AE 010 circuit-board and connection-cable replacement.

• Electrical testing: VDE 0701 procedures using the ABB Metrawatt M 5013, covering supply voltage, appliance current, insulation resistance, simulated leakage current, and responses to incorrect readings.

• Parts and workshop references: Exploded plates for housings, shafts, stitch modules, feed and hook assemblies, motors, foot controls, and accessories, supported by a numerical index and factory tool references.

This material suits qualified sewing-machine service technicians equipped for precision adjustment and electrical testing; Pfaff assigns internal repairs to qualified service staff.

Model-Specific Stitch and Feed Mechanisms

The Select 1540 has push-button selection for 40 sewing programs and 37 utility stitches. The 1520 and 1530 use a 15-program dial with 12 utility stitches. Dual fabric feed is specified for the 1530 and 1540.

All three use the Pfaff transverse double-rotating hook and a toothed-belt drive between the arm shaft and lower shaft. Separate procedures address differences in feed-dog centering, presser-bar height, feed-regulator cranks, automatic modules, and needle positioning.

The automatic-unit chapters also cover the locking disk, sideways-needle-position setting eccentric, left needle-position stop, feed-reversing bar, and gear alignment.

Calibration Checks and Repair Drawings

Adjustment sections pair the required setting with checks, corrections, and follow-up checks. After belt, gear, hook, or automatic-unit work, the related adjustment references help technicians identify which settings need rechecking before the final sewing sample.

Stitch finishing includes bobbin-winder stopping position, upper and bobbin thread tension, check-spring travel, buttonhole seam balance, and equal forward/reverse stitch length.

Illustrations extend through Fig. 125. They show housing removal, feed-motion timing, automatic-unit indexing, hook clearance and needle-rise relationships, arm-shaft and bevel-gear arrangements, and electrical test connections. Motor and AE 010 component views support the corresponding replacement procedures.

Parts Identification and Adjustment Tools

The parts list contains ten parts and accessory plates, followed by a numerical index with German and English descriptions. Wear-part numbers are underlined. Ordering notes identify the model, catalog page, and part number needed; unnumbered items are not available separately.

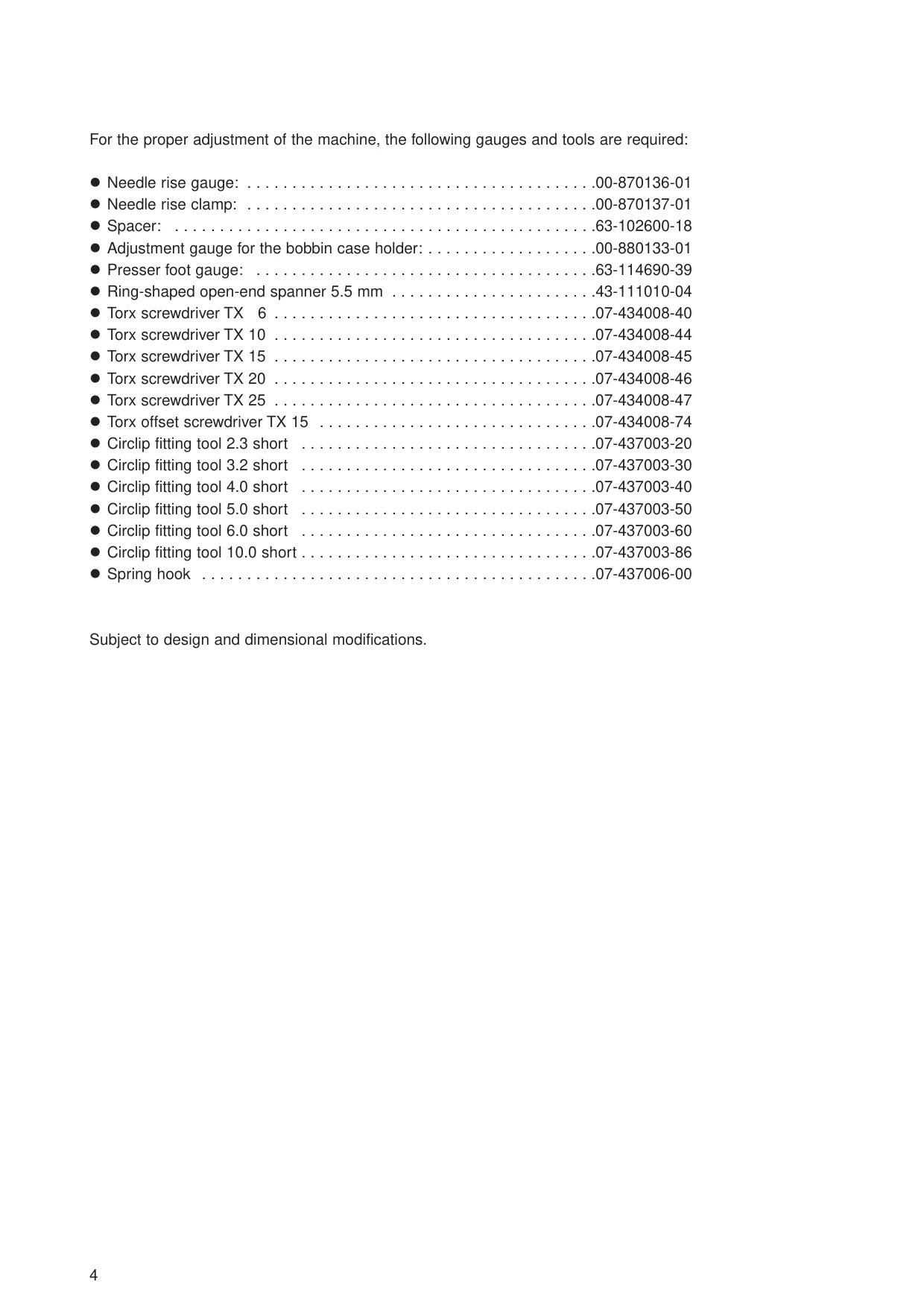

The tool list names needle-rise gauge 00-870136-01, clamp 00-870137-01, spacer 63-102600-18, bobbin-case-holder gauge 00-880133-01, and presser-foot gauge 63-114690-39, alongside Torx and circlip tools.

The separate UUS 390 and UUS 393 references distinguish electrical builds before motor parts are selected.

Assembly Precautions and Electrical Checks

The 1540 utility-stitch procedures identify toothed-segment timing marks and gear alignment requirements. Incorrect positioning can disturb the mechanism's timing or leave the gears binding.

Bevel gears are replaced as a pair, with specific attention to hook-shaft bushing, plastic-washer, and hollow-pin positioning to avoid end play or binding. The motor-pinion section classifies a pinion removed during rotor replacement as unusable.

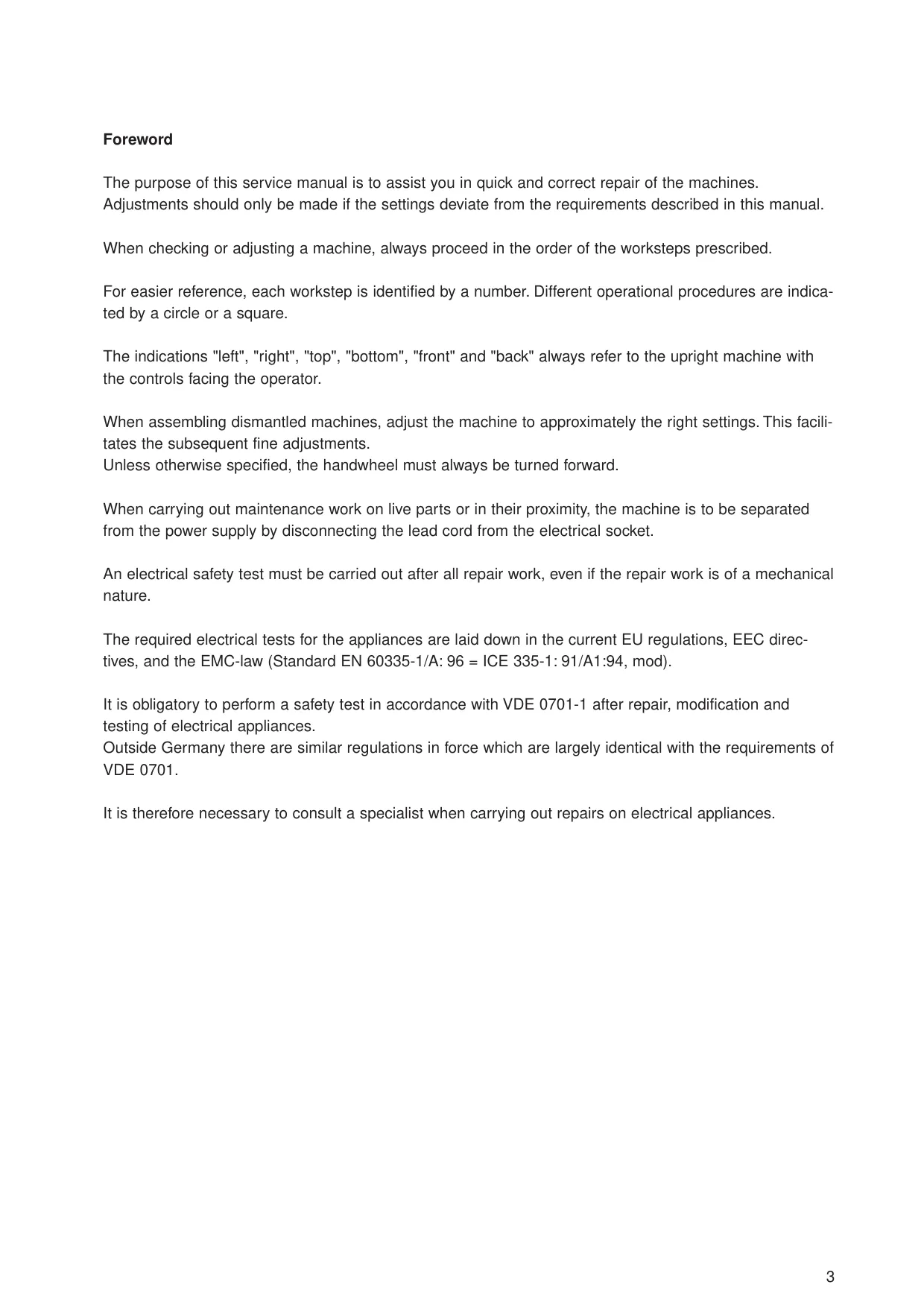

Disconnect the machine from mains power before opening the housing or working near electrical components. Pfaff calls for electrical safety testing after mechanical repairs as well as electrical repairs.

The M 5013 procedures include separate leakage-current checks for complete motors before installation. The motor circuit-board chapter also specifies replacement of the capacitor and master switch together with the board.

Examples of Feed and Hook Adjustment Specifications

For these machines, the feed-dog height requirement is 0.9 mm above the needle plate at its highest working position.

The hook-clearance check specifies 0.05 mm between the hook point and needle scarf at straight stitch, using a new size 80 needle. Hook timing is referenced to a 2.2 mm rise from the needle bar's lowest position, with straight stitch and the needle centered.

PDF Search, Bookmarks, and Included Pages

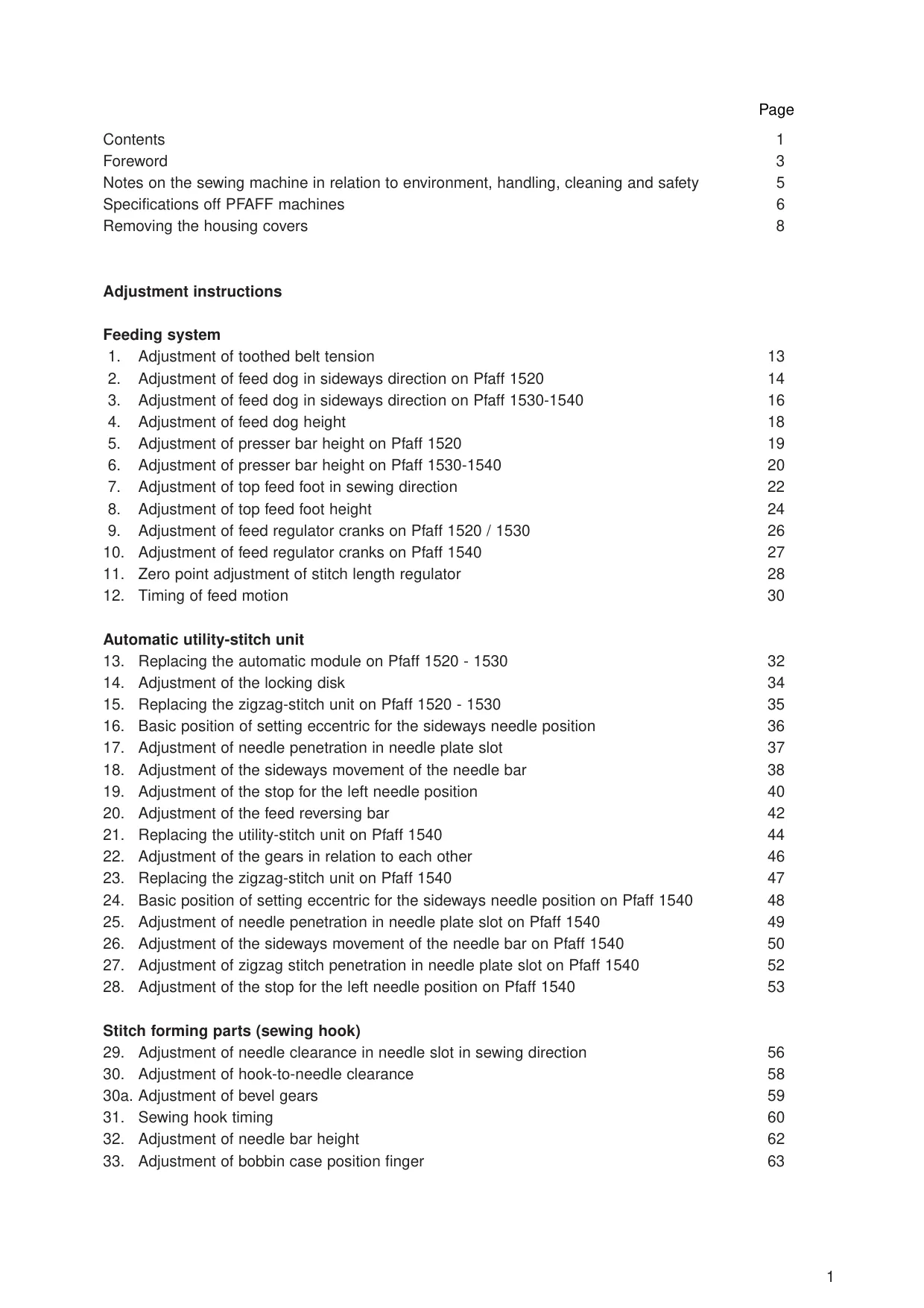

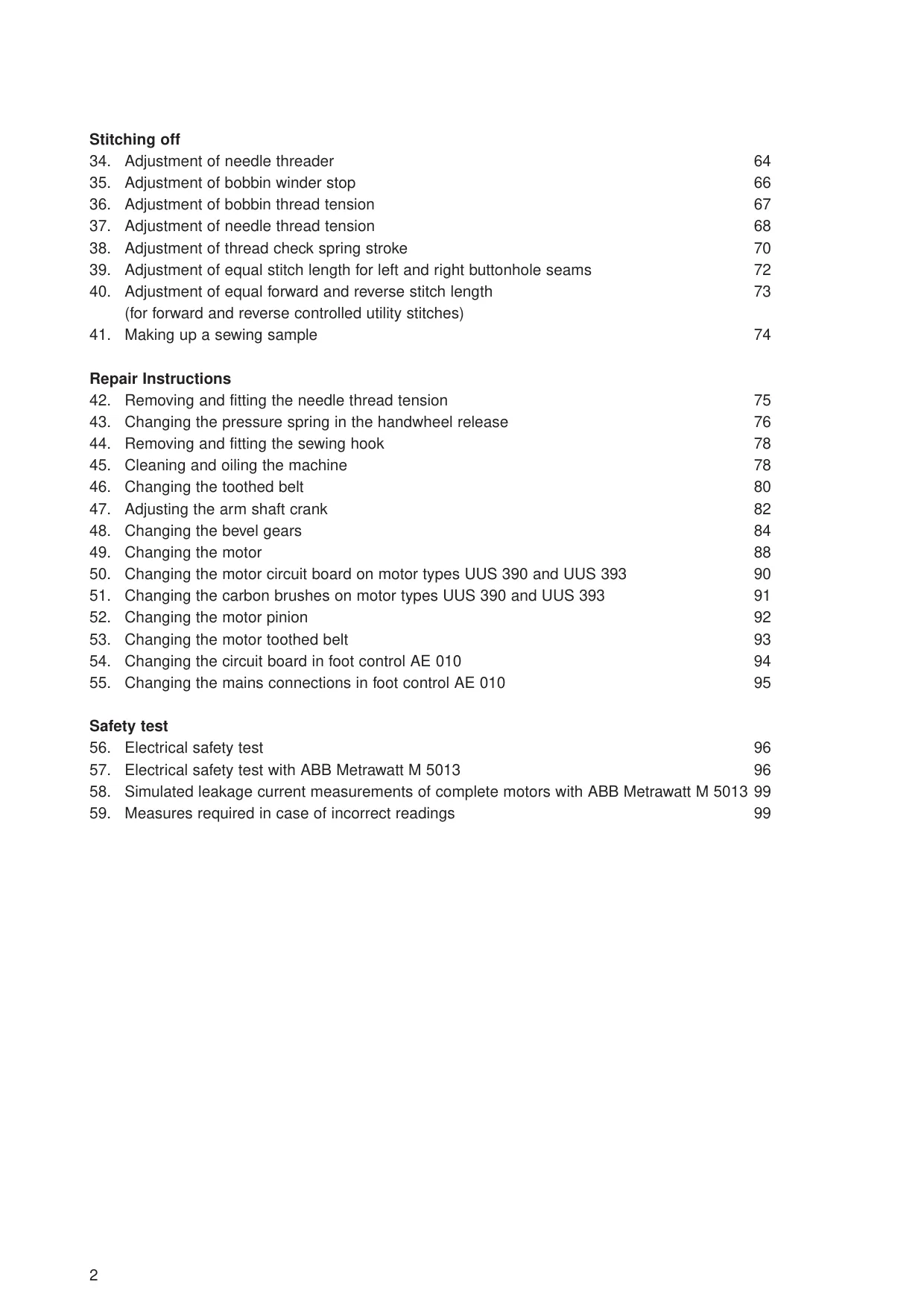

Search and illustration detail: Both PDFs contain searchable text, but many labels within illustrations are not searchable. The service manual includes chapter and procedure bookmarks; the parts list has no embedded bookmarks. Small labels in the electrical test-connection views and detailed parts plates require enlargement for comfortable reading.

The ZIP contains 2 printable PDFs totaling 125 pages. This total already includes four front/back cover pages, seven service-manual note pages, and one parts-ordering information page.
