Pfaff Coverlock 4862 Sewing Machine Owner's Manual (P/N 29-629-993-85/000B

This original 70-page OEM PDF publication (P/N 29-629-993-85/000B, dated 2007) serves as the primary operational reference for the Pfaff Coverlock 4862 household overlock and cover stitch sewing machine. Built for technicians, mechanics, and dedicated DIYers, it documents specific thread path sequences for 13 distinct sewing configurations. The specific advantage of this manual for your daily workshop routine is its comprehensive breakdown of stitch formation correction measures; matching visual tension faults directly to specific looper adjustments prevents trial-and-error material waste and eliminates the need to outsource diagnostic work.

• 13 detailed program diagrams mapping out specific sewing setups

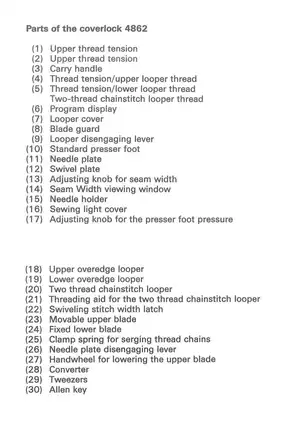

• 30 component identification labels for rapid parts location
• 2 comprehensive needle-threading schematics to minimize workbench setup time
• Official technical specifications, including an 8.6 kg unit weight and a 1300 stitches/min maximum speed rating
• Covers 7 critical subassemblies: the upper overedge looper, lower overedge looper, two-thread chainstitch looper, swiveling stitch width latch, thread chain trimmer, two-thread converter, and movable upper blade
• Features 6 essential visual references: color-coded threading path diagrams, stitch formation correction views, differential feed setting charts, sewing program overview charts, needle positioning schematics, and comprehensive thread charts

Operating Parameters and Threading Logic

Knowing the precise looper configuration can save hours of troubleshooting. This manual thoroughly documents the operational setup and needle threading logic for the Pfaff 4862. It moves directly from initial machine preparation—covering spool holder positioning, telescopic thread guide adjustment, and accessory box inventory—into the complex threading paths for both the overedge loopers and the two-thread chainstitch looper. Visual guides map out thread tension settings, program selection via the main dial, and fine-tuning the differential feed dogs. Reference charts clarify exact stitch length adjustments across varying fabric weights. Always verify that the machine is entirely disconnected from its power source before making internal tension adjustments or inspecting the needle plate assembly to prevent accidental injury.

Specification Highlights and Maintenance

Technical baselines are clearly defined for routine maintenance and initial calibration. While not a complete teardown reference, it provides specific step-by-step instructions for tasks that typically require an expensive trip to the mechanic, including lubricating internal drive components and executing a factory-spec upper blade replacement. The document details factory blade adjustments and the exact protocols for needle plate replacement. Upper blade needle clearance settings are specified precisely at 0.5–1.0 mm within the trimming assembly section. You will also find electrical requirements, such as the maximum 15-Watt rating for light bulb replacements. This overview outlines the manual's exact contents and factory specifications to help you assess its utility for your library, rather than serving as a direct step-by-step repair guide.
