1971–1981 Suzuki RV50 Service & Repair Manual PDF

Workshop procedures for the 1971–1981 Suzuki RV50 cover the engine, drivetrain, chassis, and electrical system. The English service material is accompanied by multilingual maintenance excerpts, market-specific wiring sheets, and owner-contributed references.

PDF Search, Wiring Detail and Page Breakdown

Text access and diagram detail: Text search is limited to the added country-code table, which is also the destination of the file’s single bookmark. Service chapters are not bookmarked. Small wiring labels require zooming; some remain blurred or obscured, particularly on the Switzerland sheet.

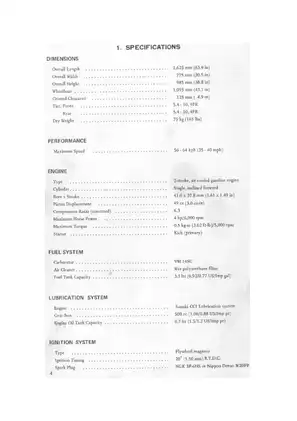

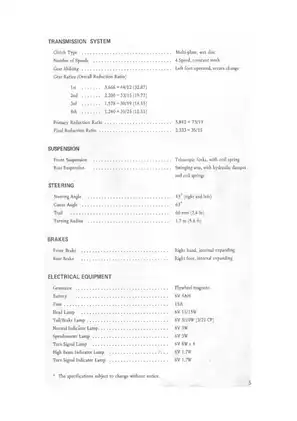

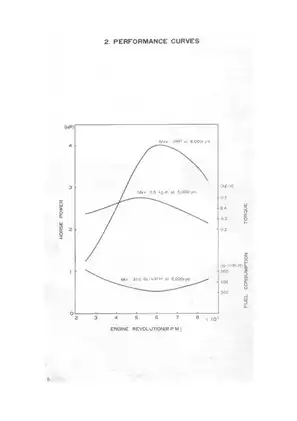

The ZIP contains one printable PDF with 84 pages total: 50 service-manual pages, 15 pages of specifications and maintenance excerpts, nine wiring sheets including a repeated diagram, one engine exploded view, eight photo pages, and one country-code reference. All supplementary pages are already included in that total.

Engine Overhaul, CCI Setup and Electrical Fault Finding

These selected topics are accompanied by break-in guidance and a spark-plug replacement guide.

• Engine repair: Step-by-step engine removal and crankcase disassembly, crankshaft and oil-seal work, cylinder-head and piston installation, and component inspection.

• Transmission and kick starter: Clutch removal and adjustment, gearset and shifting-fork assembly, kick-starter mechanism operation, and return-spring installation.

• CCI lubrication: Oil-pump cable synchronization, oil-line bleeding, pump construction, and delivery charts distinguished by engine number.

• Carburetor and tune-up: VM14SC jet and needle settings, float-level measurement, idle adjustment, throttle-cable play, air-cleaner maintenance, and muffler cleaning.

• Electrical diagnosis: Magneto ignition and charging circuits, battery servicing, coil-resistance specifications, rectifier checks, and market-specific wiring diagrams.

• Chassis service: Front-fork disassembly, steering-bearing installation and adjustment, split-rim wheel work, brake inspection limits, and rear-shock construction.

The internal engine procedures suit mechanics and experienced owners familiar with dedicated pullers, dial gauges, and electrical test equipment.

Engine Assembly and Wear Inspection

The engine section separates jobs that can be performed with the unit installed from work requiring removal and crankcase separation. Assembly drawings identify gear, circlip, washer, and bearing positions, along with piston orientation and the kick starter’s ratchet components.

Inspection tables cover cylinder-head distortion, cylinder wear, piston clearance, ring end gap, crankshaft runout, and clutch-plate condition. Tool references include crankcase separator 09910-80113 and rotor remover 09930-30113.

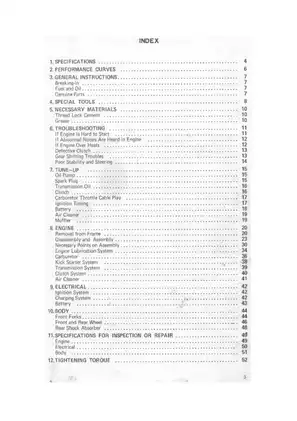

Tightening specifications accompany individual repair procedures. The separate “Tightening Torque” section listed in the index is not included in this file.

CCI Oil Delivery and Carburetor Settings

An oil-pump section view explains the plunger mechanism, while separate delivery graphs distinguish engines up to RV50-44515 from RV50-44516 onward. The inlet-side and crankshaft-side curves let the reader select the pump-output reference for the relevant engine version.

The lubrication instructions warn that air remaining in the oil passages after engine assembly can cause bearing failure or piston seizure. The appended maintenance excerpts contain a transmission-oil quantity that differs from the core service instructions; the two specifications should not be treated as interchangeable.

The carburetor cross-section accompanies explanations of the main, slow, and starting circuits. Jet and needle settings, float measurement, and idle adjustment are documented. Further carburetor detail is referred to Suzuki’s separate 1971 Carburetor and Carburetion publication, which is not supplied.

Ignition, Charging and Market Wiring

Ignition and day/night charging schematics explain the relationship between the magneto, contact breaker, ignition coil, rectifier, and battery. Troubleshooting charts connect starting difficulty, overheating, abnormal engine noise, clutch faults, shifting problems, and unstable steering with possible causes and corrective work.

Additional wiring sheets cover Norway, Belgium, Switzerland, Austria, West Germany, and other markets, with wire-color legends and switch connections. An owner-produced Dutch color diagram supplements these sheets and is labeled RV50 “X,” E21 Belgium.

Steering, Split Rims and Rear Suspension

Front-fork procedures include steering-stem bearing assembly and adjustment. Split-rim instructions address tire-to-rim grip and warn about inner-tube damage from pinching during assembly.

Brake-shoe and drum inspection limits are provided alongside chain-slack and tire-wear specifications. The sealed rear shock is explained through its construction drawing and spring load/deflection graph.

Review the factory precautions before transmission or fuel-system teardown to prevent injury and component damage.

A Preview of Ring-Gap and Magneto Test Specifications

The piston-ring inspection table gives a standard end gap of 0.10–0.30 mm and a replacement limit of 1.0 mm, measured with the ring inserted into the lower part of the cylinder.

For the flywheel-magneto primary coil, the listed resistance is 2.0 ohms between the black lead and ground with the contact points insulated. This specification belongs to the magneto winding; the separate ignition coil has its own resistance specifications.
