1987–1988 Kawasaki KXF250-A1 Tecate-4 ATV Service & Repair Manual FSM (P/N 99924-1085-01)

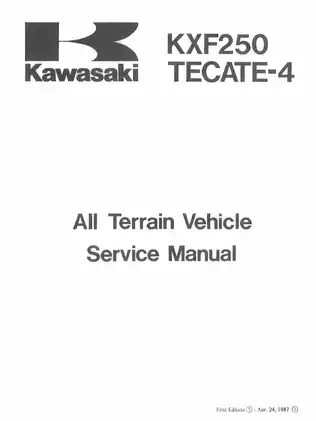

Kawasaki's first-edition service manual (April 24, 1987) covers the 1987–1988 KXF250-A1 Tecate-4 liquid-cooled, 2-stroke, single-cylinder ATV.

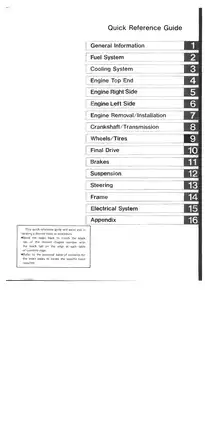

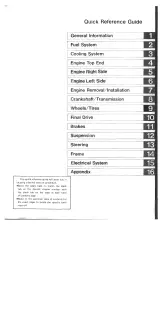

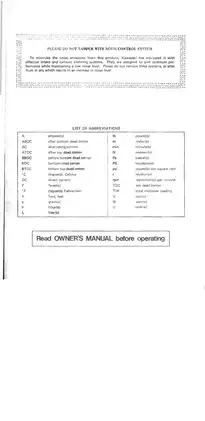

A 203-page PDF in English, arranged in 16 chapters including the appendix.

• Engine repair: Engine removal, cylinder and piston inspection, crankcase splitting, crankshaft alignment, and Kawasaki Integrated Power Valve System (KIPS) inspection.

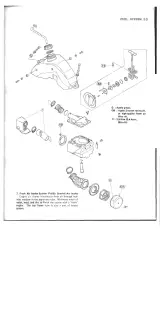

• Fuel and intake: Mikuni VM34SS carburetor disassembly, fuel-level adjustment, carbon fiber reed valve inspection, and Fresh Air Intake System (FAIS) coverage.

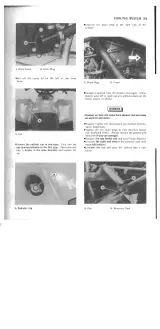

• Cooling system: Pressure testing, radiator-cap checks, coolant replacement and air bleeding, plus water pump impeller, shaft, and oil-seal service.

• Clutch and transmission: Wet-clutch inspection, release-lever adjustment, primary kickstarter assembly, balancer-shaft service, and transmission shaft and shift-mechanism repair.

• Chassis: Uni-Trak rear linkage, double wishbone-link front suspension, rear-shock overhaul, hydraulic brake service, and steering knuckle maintenance.

• Electrical diagnosis: CDI and ignition-coil tests, alternator and lighting-circuit checks, switch continuity tables, and the KXF250-A1 Wiring Diagram.

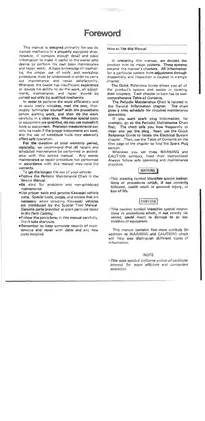

Kawasaki wrote this manual primarily for trained mechanics in an equipped shop; owners with basic mechanical knowledge and appropriate tools can use its basic maintenance and repair sections.

Engine Inspection and KIPS

The top-end section covers compression testing, piston-ring and groove inspections, and replacement criteria for the ELECTRO FUSION cylinder, which cannot be bored or honed. Crankshaft procedures include connecting-rod big-end clearance checks and the Horizontal Misalignment diagram.

KIPS coverage: Printed page 4-13 is missing, leaving a gap in the valve installation and operating-rod disassembly instructions.

The manual warns that twisting the cylinder during removal can trap piston rings in the intake port and jam the cylinder. Pulling the outside KIPS governor lever too far can disturb its ball arrangement and require governor disassembly.

Mikuni Carburetor and Cooling System

The Float Arm Height Measurement drawing supports the fuel-level procedures, while the racing appendix discusses main-jet selection, jet-needle position, and spark-plug condition.

The cooling chapter distinguishes external leaks from internal leakage involving the cylinder-head gasket or water pump seal.

Crankcase, Clutch, and Transmission Repair

Magneto flywheel extraction and crankcase splitting call for dedicated tools, including Magneto Puller 57001-259 and Crankcase Splitting Tool Assembly 57001-1098.

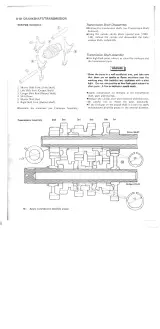

The clutch section addresses friction and aluminum plate inspection; transmission repair covers shift forks, drum grooves, and gear dogs. Exploded assembly views and component cross-sections show part placement, tightening torques, and lubricant requirements. Tables provide crankshaft runout limits, clearances, and fluid capacities.

Suspension, Brakes, and Frame

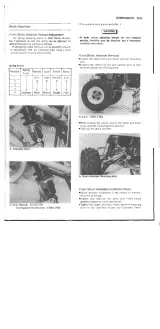

Rear-shock procedures cover disassembly, oil filling, air removal, and nitrogen charging. The sealed front shocks receive external inspection and pivot service, with no internal overhaul procedure.

Brake repair covers calipers, master cylinders, bleeding, and parking-brake adjustment. Final-drive and wheel sections address the eccentric chain adjuster, rear-axle bearings, hub service, and toe-in.

Rear-frame mounting details distinguish frame numbers through 500915 from 500916 onward. Their hardware illustrations and separate torque specifications help identify the correct fastening arrangement before repair.

Follow the manual's safety precautions and consult a qualified technician before major mechanical work, particularly service involving the rear shock's pressurized nitrogen.

CDI, Lighting, and Fault Tracing

Separate ignition-coil arcing and resistance tests help distinguish a faulty spark-plug cap from a coil problem; the manual explains why resistance readings alone cannot reveal every insulation fault.

Electrical references include the Ignition System Circuit and Lighting Circuit, CDI resistance tables, and cable and harness routing views.

Periodic maintenance charts and general lubrication instructions accompany symptom-based troubleshooting for starting, power loss, overheating, shifting, handling, and braking.

File Format and Readability

The page count includes five front-matter pages, 189 pages in Chapters 1–15, and the nine-page appendix. No separate supplements are included.

PDF text search is unavailable. Embedded bookmarks link to the chapter openings, appendix, and wiring diagram. Small wire-color codes and switch labels in the sideways wiring diagram are best read with rotation and zoom.
