Kawasaki Prairie 700 4x4 (KVF700) ATV 2004–2006 Service Manual (P/N 99924-1319-04)

522 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(4)
$19.67 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kawasaki Models Covered & Key Technical Specifications

Models: Prairie 700 4x4, KVF700

Sub-models / Variants: KVF700-A1, KVF700-B1, KVF700-A2, KVF700-B2, KVF700-D1, KVF700A6F, KVF700D6F

Model Years: 2004–2006 (2004, 2005, 2006)

Beginning Frame Numbers:

  • KVF700-A1: From JKAVF6A1□4B500001 or JKAVF700AAB600001

  • KVF700-B1: From JKAVF6B1□4B500001

  • KVF700-A2: From JKAVF6A1□5B513401

  • KVF700-B2: From JKAVF6B1□5B503601

  • KVF700-D1: From JKAVF6D1□5B500001

  • KVF700A6F: From JKAVF6A1□6B507601

  • KVF700D6F: From JKAVF6D1□6B513401

Radiator Fan Serial Breaks:

  • KVF700-A1: Early arrangement through JKAVF6A1□4B504673 or JKAVF700AAB600761; later arrangement from JKAVF6A1□4B504674 or JKAVF700AAB600762.

  • KVF700-B1: Early arrangement through JKAVF6B1□4B502039; later arrangement from JKAVF6B1□4B502040.

Frame Number Note: □ represents a digit that changes from one vehicle to another.


  • Engine: 4-stroke, SOHC, V2-cylinders, 697 cc

  • Cooling System: Liquid-cooled, 2.4 L capacity

  • Transmission: 2-speed and reverse, belt converter

  • Drive System: Shaft 2WD/4WD

  • Bore and Stroke: 82.0 x 66.0 mm

  • Engine Oil Capacity: 2.05 L (completely dry)

Kawasaki Manual Features & Selected Content Preview

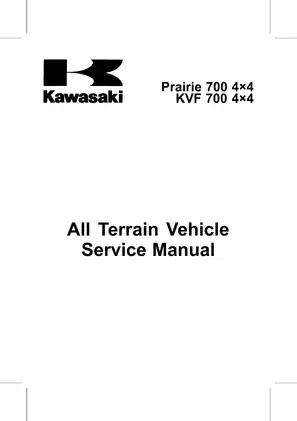

Kawasaki Service Manual P/N 99924-1319-04 covers the 2004–2006 Prairie 700 4x4 / KVF700, including A1, B1, A2, B2, D1, A6F, and D6F variants.

PDF Search, Bookmarks, and Wiring Detail

Finding procedures and reading diagrams: The body text is searchable, with embedded bookmarks for the chapters and many individual procedures. Labels inside diagram images are not searchable. Small wiring-diagram lettering requires zooming for comfortable reading.

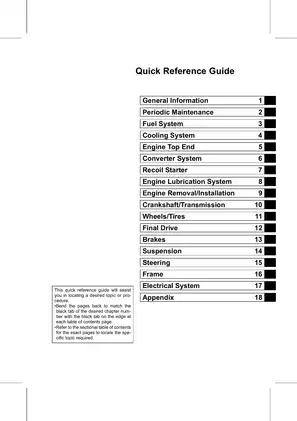

One printable English PDF contains 522 pages total: 10 preliminary pages, 511 pages across the 18 chapters, and one final model-application page. Both title pages and all 11 blank pages are already included in that count.


Engine, Converter, and Driveline Service

These are selected service topics, rather than a complete contents list. Other sections address recoil-starter inspection and body-panel removal.

  • Engine and transmission: Engine removal, top-end disassembly, camshaft-chain timing, KACR and valve service, cylinder/piston inspection, crankcase separation, crankshaft and connecting-rod work, and internal transmission repair.

  • Fuel system: Paired Keihin CVKR D32 carburetor service, fuel-level checks, pilot-screw adjustment, synchronization, fuel-pump testing, and altitude jetting.

  • Cooling system: Pressure testing, water-pump mechanical-seal replacement, and thermostat, radiator-fan, coolant-valve, and filter service.

  • Belt converter: Drive and driven pulley overhaul, belt-deflection adjustment, Kawasaki Engine Brake Control actuator setup, drive-belt failure detection, memory clearing, and high-altitude settings.

  • Final drive: Output bevel gears, propeller shafts, front axle joint boots, variable limited-slip differential, and front/rear final gear cases, including LSD clutch-torque inspection, backlash, and shim-based tooth-contact adjustment.

  • Brakes and chassis: Front hydraulic-disc brake bleeding and component overhaul, enclosed wet multi-plate rear-brake service, shock and swingarm work, steering-knuckle bearing replacement, and wheel alignment.

  • Electrical diagnosis: Charging, ignition, starter, meter, and actuator tests, supported by circuit diagrams and model- and market-specific wiring diagrams.

Kawasaki designed this manual primarily for trained mechanics in a properly equipped shop. Owners with basic mechanical knowledge and an understanding of tools and workshop procedures can also use it for basic maintenance and repair; work beyond their experience is reserved for qualified mechanics.

Model Differences and Repair Planning

Separate procedures address A1/B1 versus A2/B2/D1-and-later rocker-arm hardware. The A6F/D6F models have distinct front-spring specifications and steering-knuckle details. The radiator-fan frame-number breaks in the model box identify which fan arrangement applies before the relevant procedure is selected.

The system chapters carry the work from scheduled maintenance through assembly-level repair. Step-by-step procedures are supported by exploded views, component-specific torque and locking-agent tables, service limits, clearances, approved fluids and capacities, pressure-test data, adjustment specifications, and electrical test values.

Engine Timing and Lubrication Checks

The cam-chain tensioner is a non-return design: partial loosening and retightening can damage the tensioner and chain, while crankshaft rotation with the tensioner removed can disturb timing and damage valves.

Oil-pressure diagnosis goes beyond a specification table. The manual relates abnormal readings to checks of the relief valve, pump, bearing wear, or restricted oil passages, using Oil Pressure Gauge 57001-164 and Adapter 57001-1033.

Converter Setup and Belt-Failure Diagnosis

Converter references distinguish actuator-lever assemblies and pulley components by model group and identification marks. Tool callouts include Drive and Driven Pulley Holder 57001-1473 and Actuator Lever Measurement Tool 57001-1499.

The converter chapter warns that switching the ignition from ON to OFF with the cover removed can trigger incorrect engine-brake actuator movement. It also distinguishes memory clearing after inspection from an abnormal-belt event, for which it specifies converter-cover replacement because the failure-detection switch is damaged.

Electrical Tests and Circuit References

The actuator troubleshooting charts connect alternating 2WD/4WD indications with the affected actuator and the appropriate component checks. This gives the technician a route from the observed indication to controller-supply, sensor, switch, and actuator tests.

Electrical procedures cover charging output, ignition-coil and crankshaft-sensor peak voltage, ignition timing, starter and relay checks, fuel-level-sensor tests, multifunction-meter checks, and radiator-fan diagnosis. Factory instruments include Hand Tester 57001-1394 and Peak Voltage Adapter 57001-1415.

Visual references include the Coolant Flow Chart, Engine Oil Flow Chart, Meter Circuit, actuator failure-indication and malfunction charts, model- and market-specific wiring diagrams, and Cable, Wire, and Hose Routing views.

Carburetor, Brake, and Suspension Detail

Carburetor coverage includes disassembly, cleaning, inspection, and reassembly, with Vacuum Gauge 57001-1369 specified for synchronization. Final-drive sections provide shim-selection and tooth-contact examples rather than treating gear-case assembly as a simple parts replacement.

Front shock absorbers are sealed units. Their coverage includes external inspection and spring replacement, rather than internal damper overhaul.

Factory precautions address precision-balanced converter pulleys, hot pressurized coolant, brake work, and running-engine electrical tests. Operating instructions and complete spare-parts ordering information belong to the separate Owner’s Manual and Parts Catalog.

Valve Clearance and Belt Wear: Specification Preview

For the covered KVF700 models, cold-engine inlet-valve clearance is 0.10–0.15 mm, with exhaust clearance at 0.20–0.25 mm. These values accompany the valve-clearance inspection and adjustment procedures.

The converter specifications list standard drive-belt width as 29.7–30.3 mm and the service limit as 28.0 mm, distinguishing the normal dimension from the wear threshold.
