Samsung SCX-4600 / SCX-4623 Series Service Manual (P/N 4600-00000E)

• Model and configuration coverage: Covers the SCX-4600 3-in-1 platform, SCX-4623F fax/ADF version, SCX-4623FN network version, and SCX-4623FH handset variant, with model-specific control-panel, scanner, ADF, fax, network, and connection details.
• Mechanical repair scope: Documents removal and replacement of covers, ADF/scanner and OPE/CIS assemblies, fuser service parts, LSU, Main PBA, drive unit, solenoids, fan, transfer roller, SMPS/HVPS board, pickup roller, and cassette holder pad.
• Built-in diagnostic coverage: Explains Tech Mode and EDC testing for switches, sensors, motors, clutches, fan, fuser, LSU, and developer-bias/high-voltage functions, plus shading, DRAM/ROM, modem, firmware, report, and memory-clear functions.
• Fault-isolation material: Organizes troubleshooting around periodic image defects, print-quality faults, JAM 0/JAM 1/JAM 2 and multifeed conditions, no-power and cover-open faults, software/printing problems, fax/phone errors, copy and scan defects, and fuser errors.
• Diagrams and parts identification: Provides system-layout and paper-path views, block and connection diagrams, connector/signal references, and a Parts Catalog organized into 26 named exploded-view sections with SEC codes and service-availability notes.

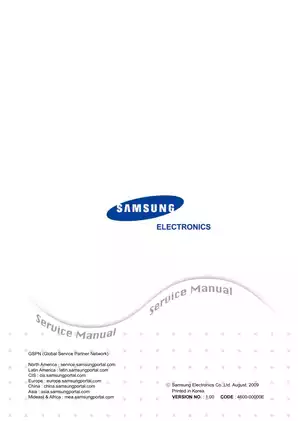

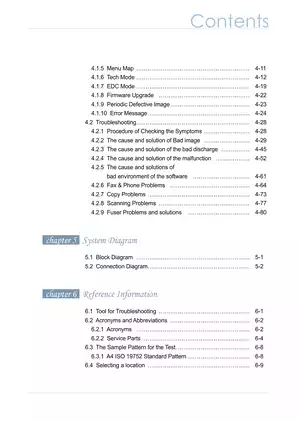

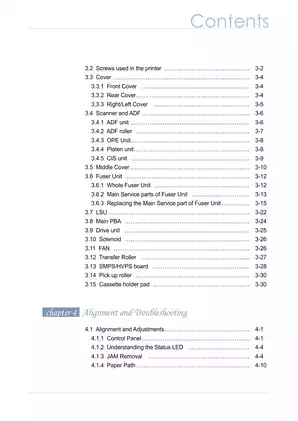

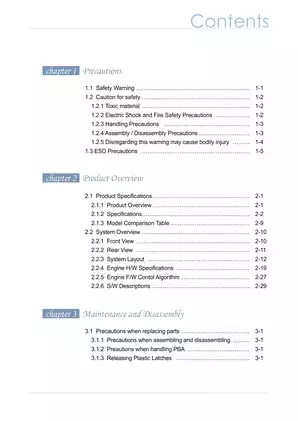

• 344-page PDF set: 227-page Service Manual (Samsung document code 4600-00000E, Version 1.00, August 2009), plus Firmware Training (19 pages), Hardware Training (17), Mechanism Training (22), Network Guide (36), and Summary Training (23).

Model Coverage and Variant Differences

The factory service manual is built around assembly-level repair and fault isolation. It maps the engine from paper pickup through image formation, transfer, fusing, and exit, then ties those functions to the Main PBA, scan electronics, fax LIU/modem, LSU, and combined SMPS/HVPS board.

The model split is explicit: the 4600 is the 3-in-1 print/copy/scan configuration; the 4623F adds the ADF and fax system; the FN adds embedded Ethernet; and the FH is identified in handset-specific front and rear views. The five training modules focus primarily on the 4600, F, and FN versions, with the Network Guide aimed at the FN configuration.

Mechanical and Parts-Catalog Coverage

The system-overview chapter explains the feeding assembly, BLDC-driven gear train, toner cartridge and OPC process, transfer section, fuser, laser scanner, sensor circuits, and scan/fax architecture. The disassembly material then shows the access paths needed for internal repair rather than stopping at exterior covers.

Fuser coverage goes beyond complete-unit removal. The manual identifies replacement access for the halogen lamp, thermostat, AC and joint harnesses, lamp caps, exit actuator, jam-link levers, input guide, guide claw, and exit roller components. Separate screw tables distinguish fastener usage between 3-in-1 and 4-in-1 builds.

The appended Parts Catalog pairs drawing callouts with Samsung SEC codes, quantities, SA/SNA service status, and model or voltage remarks. Variant-specific sections include SCANNER_3 in 1 and SCANNER_4 in 1, OPE_3 in 1 and OPE_4 in 1, platen assemblies, ADF base, ADF paper path, fuser, frame base, and driving module.

Diagnostics, Firmware, and Network Service

Tech Mode provides switch, modem, memory, ROM, and scan-shading tests, along with configuration, supplies, error, protocol-dump, usage, component-check, and service-support reports. EDC Mode isolates front-cover state; registration, feed, exit, and empty sensors; the main motor; fuser fan; pickup and registration clutches; fuser control; LSU functions; and high-voltage outputs. Firmware training covers normal and special download modes through USB and, on the FN model, network tools, while flagging the data loss associated with factory clearing.

A symptom-checking flowchart and Periodic Defective Image chart link repeating marks to the OPC drum, developing, charging, supply, transfer, pressure, or fusing rollers. Separate fault trees address image quality, paper discharge and jams, engine malfunctions, software/printing faults, fax/phone problems, copy defects, scan defects, and fuser errors.

Useful named references include the 5.1 Block Diagram, 5.2 Connection Diagram, Paper Path view, Periodic Defective Image chart, FUSER exploded view, and separate SCANNER_3 in 1 / SCANNER_4 in 1 drawings. The Network Guide adds training for SyncThru Web Service and Web Admin Service, SetIP, TCP/IP print paths, address assignment, SNMP and discovery protocols, plus checks for cabling, network LEDs, IP or MAC conflicts, port settings, and packet capture.

Scope Limits and Repair Notes

The electrical material is system-level: board functions, connector pins and signals, block diagrams, and interconnection paths. It is not a component-level PCB circuit-schematic set. The manual also treats the LSU as a sealed replacement assembly; opening it can contaminate the mirror chamber and degrade print quality.

After Main PBA replacement, the specified memory-clear procedure is an important follow-up, and the manual warns that stored settings and counts can be erased. Fuser, high-voltage, and laser areas require power isolation and adequate cooling before internal repair.
