Samsung Digital Laser MFP SCX-6345 Service Manual & Guide
$4.99
(incl. VAT) - Instant Download
Samsung Samsung Digital Laser MFP SCX-6345 Service Manual & Guide - Technical Specifications
- File Size: 21.20 MB
- File Type: PDF
- Language: English
- Pages: Pages: 309,
- Printable: Yes
- Estimated Download Time: 0.43 Minutes
verified_user
Lifetime Guarantee
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal & Bitcoin
Samsung Models and Parts Covered in this Copier Manual
Samsung Samsung Digital Laser MFP SCX-6345 Service Manual & Guide - Complete Manual Information
Product Overview
This service manual details the Samsung Digital Laser MFP SCX-6345 series multifunction printer, designed for efficient office use with high quality printing, scanning, copying, and faxing capabilities. The SCX-6345 offers impressive print speeds of up to 45 ppm and a range of features tailored for productivity and ease of use. This comprehensive manual provides in-depth guidance for maintenance, troubleshooting, and servicing of this advanced printer model.
Key Features
- High Print Speed: Simplex Print speeds up to 45 ppm for letter and 43 ppm for A4.
- Multi-function Capabilities: Combines standard functions such as printing, scanning, copying, and faxing into a single device, making it ideal for office environments.
- Significant Device Memory: Comes with a standard 256MB system memory and options to expand up to 384MB, accommodating extensive print jobs.
- User-Friendly Design: The manual includes a layout of the control panel, troubleshooting tips, and schematics for easy reference.
What's Inside
The manual covers the following sections:

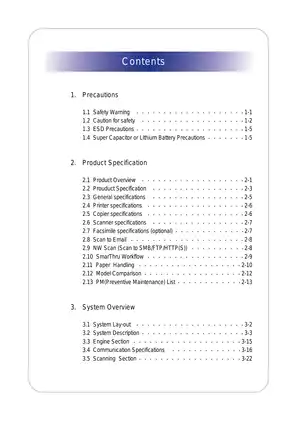

- Precautions and Safety
- Specifications and Features

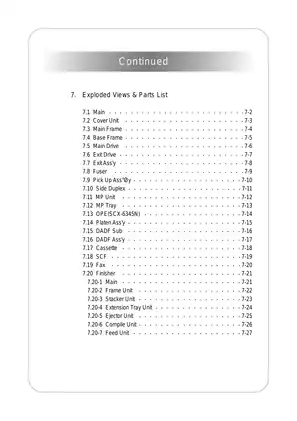

- Exploded Views and Parts Lists: Detailed schematics and parts lists including for components like the fuser, exit drive, and DADF assembly.
- Troubleshooting Guides: Step-by-step solutions for common issues like paper jams, print quality problems, and device errors.

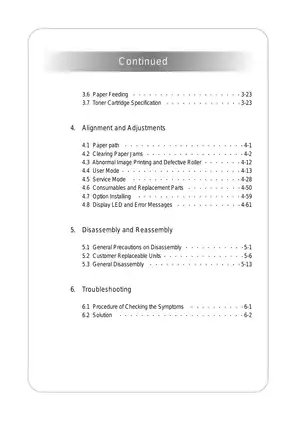

- Service Procedures: Instructions for disassembly, cleaning, and replacement of parts.
- Diagrams and Schematics: Visual reference for parts and assembly to make repairs and modifications straightforward.
Table of Contents:
- Introduction
- Product Overview
- General Safety Precautions
- Model Specifications
- Disassembly and Reassembly
- Troubleshooting Guidelines
- Parts Breakdown and Identifications
This manual is particularly useful for service technicians and experienced users looking to maintain or repair their SCX-6345 multifunction printer. Get reliable, professional insights with this indispensable guide.
