2007 Samsung CLX-6200ND, CLX-6200FX, CLX-6210FX, and CLX-6240FX Laser MFP Service Manual (P/N 6200-FX0SEE)

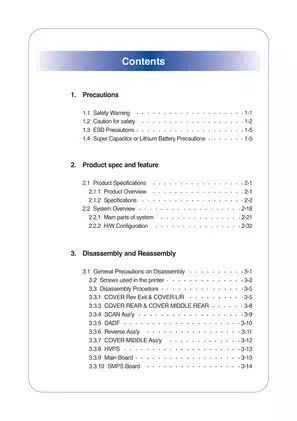

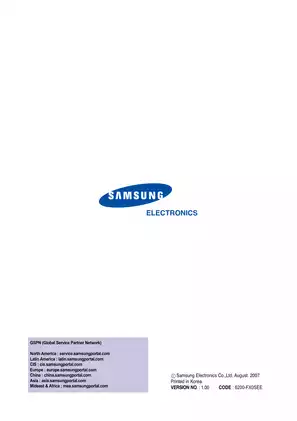

• 238-page Samsung Electronics PDF for the CLX-6200ND, CLX-6200FX, CLX-6210FX, and CLX-6240FX; August 2007, Version 1.00, document code 6200-FX0SEE.
• Covers removal and access work for the scan assembly, DADF, reverse assembly, HVPS, main board and fax board, SMPS, fuser control board, LSU, CRUM, fuser drive assembly, and pickup roller.
• Includes EDC Mode and Tech Mode checks for sensors, motors, fans, clutches, solenoids, fuser control, LSU operation, development/high-voltage circuits, DRAM, ROM, modem, and CCD shading.
• Provides fault-isolation charts for image defects, paper-feed and reverse-path jams, fuser faults, scan-lock and copy problems, blank LCD/no-power conditions, LSU errors, toner errors, and control-panel messages.

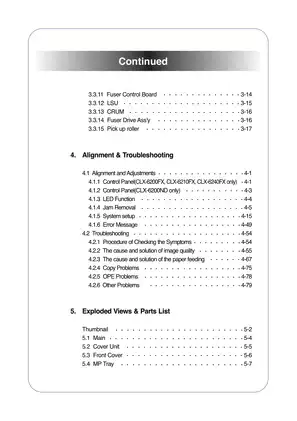

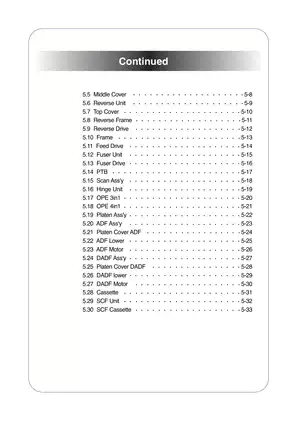

• Supplies 30 exploded assembly views with matching parts lists for the main frame, feed and reverse drives, fuser, PTB, scan unit, ADF/DADF assemblies, cassettes, and optional SCF hardware.
• Electrical references include two model-specific block diagrams, a four-sheet Connection Diagram, and a three-sheet Voltage Map, plus connector layouts and board-level interface views.

System Architecture and Variant Coverage

The manual separates the 20 ppm CLX-6200-series platform from the 24 ppm CLX-6240FX. The hardware chapter identifies the Chorus3-based CLX-6200-series main board and the MIPS/SPGPXm architecture used in the CLX-6240FX, with connector locations, memory interfaces, USB/network I/O, sensor inputs, motor control, and HVPS PWM control.

The CLX-6240FX is shown with a built-in HDD; the CLX-6200ND and CLX-6210FX use an optional HDD, while the CLX-6200FX does not support it. It also distinguishes model-specific main PBAs and fax hardware, ADF/DADF assemblies, 3-in-1 and 4-in-1 panels, optional SCF parts, and 110/220 V power assemblies. Fuser coverage separates the CLP-610 single-lamp arrangement from the CLP-660 dual-lamp system, including the corresponding fuser drive board control layouts.

Disassembly and Repair Coverage

The disassembly chapter is organized around module access and replacement. It documents cover removal, scanner removal and DADF separation, reverse-unit access, and removal of the major electrical boards and drive components. Screw references, harness locations, ground leads, latch points, and model-specific fax-board notes support correct reassembly.

The manual also flags repair traps that are easy to miss. Disturbed harnesses must be returned to their original routing because cables run close to moving parts, and the plastic latches are specifically identified as easy to break. Main-board replacement can erase stored settings and requires the manual's memory-clear procedure; the OPC surface can also be permanently damaged by light exposure.

The scope is strongest for module removal, diagnosis, replacement, and parts identification. It is not a full bench-overhaul guide for toner cartridges, the PTB, or every internal fuser component; those areas rely mainly on system descriptions, exploded views, parts data, and fault charts.

Diagnostics, Service Modes, and Fault Isolation

EDC Mode provides direct component checks for cover and paper sensors, main/development/fuser/reverse motors, cooling fans, pickup clutches, the development clutch, fuser controls, LSU power and motor operation, and the charger/development/transfer circuits. Color-registration reset and pattern-print functions are included. Tech Mode adds switch, modem, DRAM, ROM, shading, report, fuser/roller counter-clear, and communications functions used during repair diagnosis.

The troubleshooting chapter uses decision charts for recurring image defects, feed and reverse jams, scan and copy faults, fusing problems, no-power symptoms, and LSU or toner failures. A periodic-defect chart links repeating marks to the OPC drum, charge and supply rollers, developing rollers, transfer roller, gap ring, and fusing belt. Firmware-update coverage includes USB service mode, SyncThru Web Service, and SyncThru Web Admin Service, and the scanner section covers CCD shading, scan-control specifications, and shading/gamma correction.

Electrical, Diagram, and Parts Reference

Board-level material covers the main controller PBA, SMPS power flow and connector pin assignments, HVPS output sections, fuser drive board, CRUM interface, scan joint, DADF interface, reverse board, HDD, and fax circuitry. Electrical tables cover high-voltage duty/output/load checks, SMPS rails, sensor and actuator supplies, fuser temperature fault criteria, CCD operating data, and connector-level diagnosis.

The most useful visual references include the engine paper path, ADF/DADF transport section, CLX-6200 and CLX-6240FX main-board connector layouts, HVPS component/output layout, CRUM interface, and the model-specific system block diagrams. Parts tables identify Samsung service codes, quantities, service availability, model remarks, and voltage variants, supporting correct repair-part selection.

Internal service exposes high voltage, laser optics, ESD-sensitive electronics, and hot fuser components. Disconnect power, allow the fuser to cool, and follow the manual's laser, ESD, and board-handling precautions before opening these assemblies.
