Suzuki LT80 QuadSport ATV Factory Service Manual (1987–2006)

This Suzuki factory service manual covers the 1987–2006 LT80 QuadSport ATV. The base manual provides the repair procedures, and six integrated model supplements update the applicable service data and procedures through LT80K6. Use the supplement for your model alongside the earlier sections it references.

PDF Bookmarks and Wiring Detail

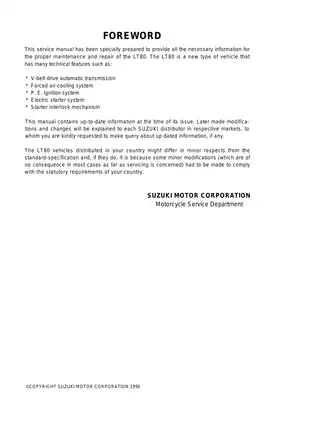

Text search and navigation — Search works on the foreword and two index or contents pages. Embedded bookmarks open the main groups and model supplements. Zoom in to read the small wire-color codes and connector labels.

The download is one printable, 225-page English PDF. The page count includes seven pages of front matter and one repeated gear-oil service page.

Engine, Belt Drive, and Electrical Service

This is a selection of the workshop topics. The manual also illustrates the LT80K throttle-valve limiter and covers initial battery charging in the LT80L supplement.

• Engine repair — Step-by-step engine removal and remounting, with cylinder and piston inspection, crankshaft checks, reed-valve servicing, and bearing and oil-seal replacement.

• Automatic belt drive — Fixed and movable drive faces, centrifugal clutch inspection, clutch limiter assembly, reduction gears, and drive-belt wear checks.

• Fuel and lubrication — Carburetor disassembly and needle-valve inspection, vacuum-operated fuel cock operation, and Suzuki CCI oil-pump bleeding and delivery testing.

• Electrical diagnosis — Ignition and charging tests, starter-motor disassembly, relay and interlock checks, battery servicing, and model-specific wiring diagrams.

• Chassis service — Drum brakes, wheel bearings, steering knuckle arms, independent front suspension, unit-swing rear suspension, and rear axle housing repair.

• Workshop references — Periodic maintenance charts, cable and hose routing illustrations, exploded assembly views, tightening torque tables, and standard dimensions alongside service limits.

The manual suits technicians and experienced owners equipped for mechanical measurement and electrical testing. Some procedures call for dedicated Suzuki service tools.

Engine Inspection and Forced-Air Cooling

The engine section covers connecting-rod inspection, cylinder-to-piston clearance, piston-ring checks, and crankshaft rebuilding dimensions. It identifies crankshaft installer 09910-32812 and shows crankcase sealing and stator alignment.

Engine-section gaps — This PDF omits printed pages 3-17, 3-18, and 3-43. The gaps interrupt engine disassembly and driven-face reassembly coverage.

The piston-ring illustrations show the correct orientation of the keystone rings for cylinder fit. Cooling diagrams show separate airflow paths for the cylinder and head and for the V-belt, with reassembly views for the ducts, hoses, clamps, and mounts.

Clutch, Belt Drive, and Final Gears

Separate engagement and lock-up checks help distinguish when the clutch starts to take up drive from whether it locks up fully. The supplements provide revised clutch test data, and the LT80K section shows the changes from the LT80J drive chain and sprockets.

Assembly coverage includes drive-face rollers, driven-face pins and seals, the clutch limiter, countershaft, and driveshaft. The manual identifies the clutch shoe nut’s left-hand thread and calls out where to remove grease from the driven-face seat and keep it off the belt.

Carburetor and CCI Lubrication

The carburetor section pairs construction drawings and settings with needle-valve inspection and mixture diagnosis. The troubleshooting tables distinguish starting, low-speed, high-speed, and overflow complaints.

The CCI section covers air bleeding and measured pump delivery. The later supplements revise the delivery-test figures, and the service tables distinguish final gear oil change quantities from overhaul fill quantities.

Ignition, Charging, and Starting Faults

The base electrical section tests the combined CDI and ignition coil. The LT80Y-onward information gives separate coil and CDI tests, and the LT80K6 supplement includes a regulator/rectifier diode-test table for multi-circuit tester 09900-25008.

The starter circuit diagrams show how the parking-brake interlock and starter relay work together. Generator no-load checks, battery tests, and harness and magneto lead routing support fault tracing.

Follow workshop safety precautions when handling fuel, testing ignition circuits, or working beneath a supported ATV.

Steering, Brakes, and Rear Axle Housing

Chassis procedures cover hub bearings, brake drums and shoes, steering-shaft holders, knuckle-arm bushings, tie rods, and toe-in adjustment. Rear axle housing drawings show how the sprocket flange, bearings, spacer, and dust seals fit together.

A Preview of Carburetor Settings and Wear Limits

The base LT80 carburetor table specifies a float height of 18.5 ± 1.0 mm and a #92.5 main jet for the 40B00 carburetor.

The base engine section gives a crankshaft runout service limit of 0.05 mm for the dial-gauge check. The belt inspection procedure gives a width service limit of 16.7 mm and calls for a separate visual check for cracks or separation.
