Pixma MP830 / Canon Inc.
- Canon Pixma MP830 (Original release, 2006)
- Canon Pixma MP830 Revision A (Minor updates, 2007)
- Canon Pixma MP830 Revision B (Minor updates, 2008)

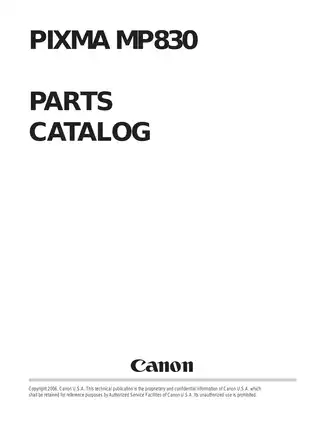

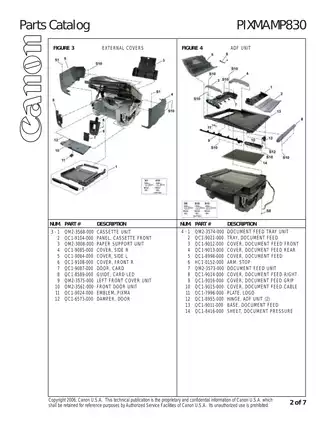

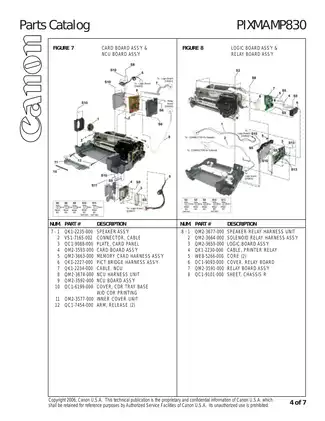

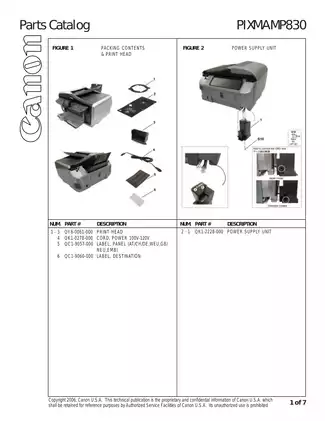

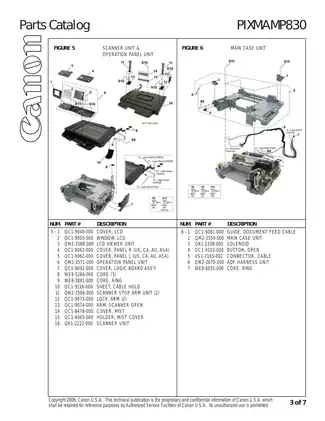

Canon Pixma MP830 printer parts catalog
Includes the following models
File specifications
File type: ZIP
Language: English
Number of pages: 93
Printable: Yes
Estimated download time: 0.42 Minutes
Product Information
Table of Contents
-
General Information
- Introduction
- How to Use This Catalog
- Symbols and Abbreviations
- General Precautions
-
External Covers and Panels
- Front Cover Assembly
- Rear Cover Assembly
- Top Cover Assembly
- Paper Output Tray
- Control Panel Assembly
-
Main Body Components
- Frame Assembly
- Main Chassis
- Paper Feed Assembly
- Internal Support Structures
-
Printing Mechanism
- Print Head Assembly
- Carriage Unit
- Ink Supply Mechanism
- Paper Transport Mechanism
-
Scanning and Copying Mechanism
- Scanner Unit
- Document Cover
- Automatic Document Feeder (ADF) Assembly
-
Electrical Components
- Main Logic Board
- Power Supply Unit
- Display Panel
- Interface Connections
- Sensors and Switches
-
Ink and Paper Handling
- Ink Cartridges
- Paper Cassette
- Paper Feed Rollers
- Duplexing Transport Unit
-
Maintenance and Service Parts
- Maintenance Kits
- Service Tools
- Cleaning Supplies
-
Accessories
- Optional Accessories
- Replacement Parts for Accessories
-
Ordering Information
- Part Numbers
- Ordering Procedures
- Contact Information
-
Appendix
- Exploded Views
- Parts List by Number
- Compatibility Charts
-
Index
The Canon Pixma MP830 printer service guide manual is a valuable resource for mechanics, technicians, and owners. It includes detailed information on specifications, operation and timing of print head, maintenance, troubleshooting, technical reference, part catalog, and more.
-
The price of this manual, handbooks, and repair guides are not set by our marketplace, but by the seller of the manuals themselves, so it is possible that the same manual is offered at a different price on another page here. Please compare prices before deciding to purchase.
-
For many of our manuals, there are comments and ratings from other users at the end of the detail page to make your purchase decision easier. Please leave a review after your purchase to help other users make their purchasing decision.
-
Don't hesitate and download the repair manual you need now. You get a lifetime guarantee for the download, as described in our FAQs.
-
To contact the seller of the manual, please use our contact form and we will forward your request or take care of it directly.
