2006 Canon PIXMA MP830 Service Manual (84 P.)
Canon PIXMA MP830 multifunction printer service documentation — carriage unit, print head, scanner module, paper feed mechanism, and logic board assembly. Part #QY6-0061-000.

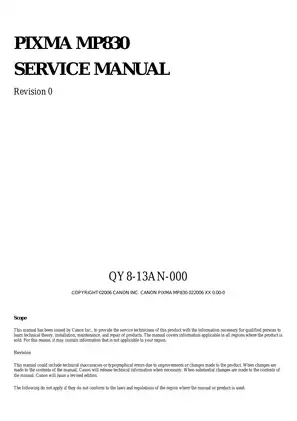

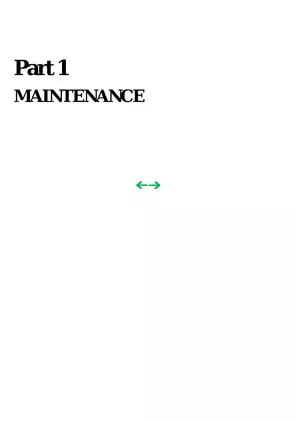

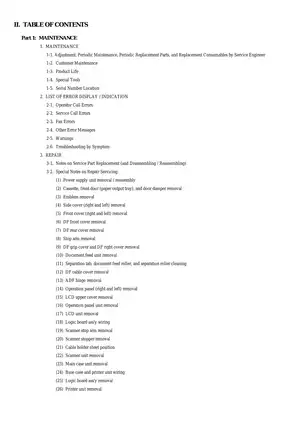

Manual Preview
Sample pages from the 2006 Canon PIXMA MP830 Service Manual (84 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Canon PIXMA MP830 — 2006 Integrated Documentary Portfolio | MP830 Series Compendium.
- Calibrated Net Mass: Approx. 14.7 kg is measured at the device weight (excluding print head and optional units) Matrix.
- Rated Scan Resolution: For maximum image capture, 2,400 x 4,800 dpi represents the optical scanning output Standards.
- Critical Rotational Force: Print head speed is established at 30 ppm monochrome black (Fine Black) output Margin.
- Universal Play Limits: The maximum document stacking capacity is set to 35 sheets (A4/LTR, 75 g/m2 paper) Protocol.
- Maximum Temperature Range: Operating envelope produces 5–35°C (41–95°F) for optimal system performance Architecture.
- Documented Enclosure Specs: Print width is configured at 203.2 mm (215.9 mm in borderless printing) Norms.
Professional Workshop Service Manual & Technical Specifications
Technical Performance Manual: Printer Comprehensive Guide - Canon PIXMA MP830 (2006) Service-Dossier
Year-Coverage: Canon PIXMA MP830 (2006) // Maintenance-Category: Error Codes and Component Logic // Technical-Domain: Printer Systems and Service Operations.
| Component | Baseline | Architecture |
|---|---|---|
| Printing Systems | 9,600 x 2,400 dpi Maximum | Complete specifications provided |
| Paper Handling | Auto sheet feed with duplex capability | See Chapter 1 |
| Error Documentation | 40+ operator and service codes | Chapter 2 |
| Fax Operations | Super G3 compliant with 250-page memory | Chapter 2-3 |
| Scanner Functions | CCD-based 2,400 x 4,800 dpi optical | Part 3 |
Methodically establishing the document's comprehensive scope, this manual furnishes detailed reference material for maintenance procedures, troubleshooting protocols, and technical specifications across printing, copying, scanning, and fax systems. The document covers all repair-related adjustment requirements, parts replacement guidance, and service-level configuration settings for the Canon PIXMA MP830 multifunction printer. Encompassing maintenance workflows alongside error-code interpretation, the manual presents tables detailing cleaning modes and ink consumption amounts for various operational scenarios.

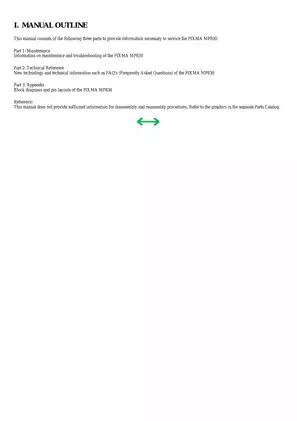

The manual organizes system descriptions into three primary structural divisions: Part 1 addresses maintenance frameworks including customer-level operations and service technician procedures; Part 2 references new technologies, print modes across multiple paper types, and frequently asked questions specific to the MP830; Part 3 supplies block diagrams, connector pin layouts, and comprehensive device specifications. Additional coverage includes automatic document feeder configuration, liquid crystal display functionality, and direct printing capabilities from digital cameras via PictBridge support. The resource documents torque specifications for component assembly to ensure proper mechanical retention.
Installation guidelines are provided for memory card operation and direct printing workflows. Fluid capacities are listed for cleaning cycles and waste ink management systems. Tool requirements are listed for specialized service procedures including grease application to sliding mechanisms and fixture assembly operations. OEM guidelines are included for print head alignment, ink tank compatibility, and paper-feed calibration protocols. Maintenance guidelines are included for customer-performed operations such as print head cleaning, nozzle verification patterns, and paper feed roller maintenance across standard and deep cleaning modes.
