Canon PIXMA MX7600 (2008) Service Manual Set with Parts Catalog
75 Pages • ZIP Download: 2 Printable PDFs (English)
Canon Models Covered & Key Technical Specifications
Models: PIXMA MX7600
Model Year: 2008
-
Grease type: Floil KG107A
-
Grease application amount: 9 to 18 mg per drop
-
Interface connectivity: USB, PictBridge
-
Service modes: EEPROM initialization, ink absorber reset, print head deep cleaning, button/LCD test
Canon Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Canon PIXMA MX7600 (2008) Service Manual | 67 |
| Canon PIXMA MX7600 (2008) Parts Catalog | 8 |
Use the Service Manual to narrow down likely faults and identify the checks needed after a repair. The Parts Catalog connects callouts in the exploded views to Canon part numbers so you can identify the assembly or part before ordering.
The Service Manual provides harness-routing photos and connector locations. Circuit schematics are outside its scope. PTT parameter definitions require the separate G3 Facsimile Service Data Service Handbook (English edition QY8-13BC-010). For additional fax codes, the manual refers to the separate G3/G4 Facsimile Error Code List (Rev. 2). Both references are outside this set.
Searchable Text and Illustrated References
Text search and bookmarks: Search the Service Manual’s text and the Parts Catalog’s tables. Both PDFs have embedded bookmarks. Labels within photos, exploded views, the correction flowchart, and sample printouts are outside the text search. Small connector and parts callouts are readable with zooming.
The ZIP download contains two printable English PDFs totaling 75 pages, including both covers and the Service Manual’s contents page.
Printer Faults, Service Adjustments, and Parts Lookup
These selected service topics show how the manuals are used at the bench. The Service Manual also covers LAN settings checks and how to prepare the printer for transport after repair.
- Fault diagnosis: Operator and service call errors, fax codes, and symptom-based checks for printing, paper feeding, scanning, and automatic document feeder faults.
- Disassembly: Step-by-step instructions for removing the housing, automatic document feeder, and scanner, plus procedures for separating the printer unit and removing the operation panel and AC adapter.
- Ink and reactor system: Purge-unit fault references, buffer-tank level-sensor checks, and separate procedures for resetting the ink absorber and wetting liquid counters.
- Post-repair adjustment: Paper feed motor adjustment, print head alignment, line feed and eject correction, EEPROM initialization, button and LCD testing, and service test prints.
- Parts and connections: Exploded views with Canon part numbers, harness-routing photos, and connector identification for the printer’s main assemblies.
Canon prepared both publications for authorized service facilities. The repair procedures assume familiarity with internal electronic assemblies and service-mode settings.
Error Codes and Hardware Access
The error tables pair Alarm and Power LED blink patterns and LCD codes with fault conditions and likely replacement parts. They cover print head temperature faults, carriage and line-feed encoder faults, purge cam and pump roller sensor errors, and scanner home-position errors.
Clear ink diagnosis: The service test print checks the high and low reactor liquid sensors in the buffer tank. If the print fails to start without displaying an error, the manual points to an empty clear ink tank or a faulty valve-unit sensor.
Photos show how harnesses sit around the chassis and where they connect. Separate views distinguish AC adapter grounding and NCU harness connections on Japan and overseas units. The RCT pump valve tube notes flag two reassembly risks: pinching the tube against the chassis and deforming the paper-ejection roller gear film.
Disconnect the power supply before work inside the printer. The logic-board replacement notes also address residual capacitor charge that can damage the board.
Service Settings and Maintenance
The replacement table maps each assembly to its required settings and checks. It identifies which data EEPROM initialization retains and distinguishes transferring the existing ink absorber counter to a replacement board from resetting the ink absorber and wetting liquid counters.
Verification after logic-board replacement includes printing from a computer or camera, copying, and sending and receiving faxes. The manual includes an LF / Eject correction flowchart, service test print samples, and a PTT settings printout.
Customer maintenance covers print head deep cleaning, pick-up roller cleaning, paper feed roller sheet cleaning, and ink quality maintenance. Canon specifies no scheduled maintenance or parts replacement by a service engineer. The lubrication table and drawings show location-specific quantities for the carriage shaft, lift cam contact areas, and gears.
Exploded Views and Replacement Parts

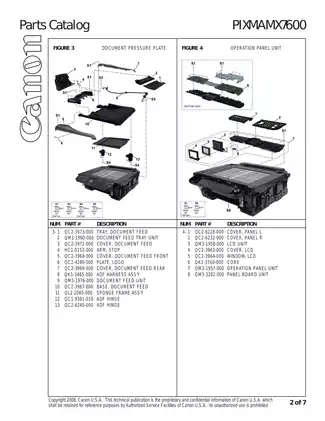

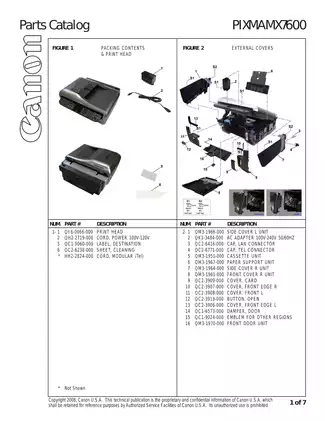

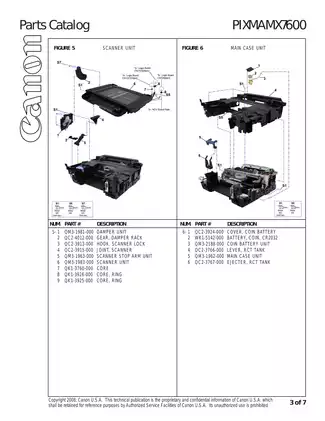

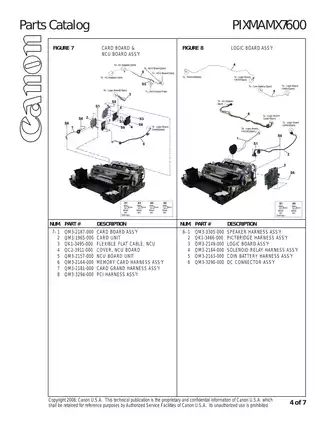

The Parts Catalog has 13 illustrated figures, including the operation panel, bottom case and ink absorber kit, platen and purge unit, and paper feed and carriage lift assembly. Numbered callouts link individual items to Canon part numbers.
For the waste ink absorber, the publications show access to the bottom case, kit identification, and post-replacement checks. A dedicated step-by-step absorber kit replacement procedure is outside the Service Manual’s scope.
Selected Adjustment Values
For logic-board replacement, the manual gives a 7% ink absorber counter threshold for including the absorber kit in the job. The LF / Eject correction print uses patterns numbered 0–2 separately for line feed and paper ejection.
The user-mode alignment table specifies four sheets of A4 or Letter plain paper for automatic print head alignment and two sheets for manual alignment.
