2001 Canon PIXMA MP780 / MP750 Printer Service Manual Set (P/N HY8-13A3-000 / HY8-23A0-020)

The service manual directs technicians to the included error-code reference for faults outside its model-specific tables and to the Parts Catalog for assembly illustrations. The setup and operating guides cover installation and routine use.

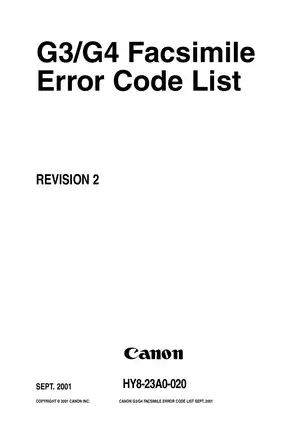

Model coverage: Fax, NCU, and communication-diagnostic sections apply to the MP780. The general error-code volume also covers older Canon fax systems and G4/ISDN procedures; those sections do not establish additional MP750/MP780 capabilities.

Electrical-schematic limits: The service manual’s TOC-listed Wiring Diagram, Circuit Diagram, NCU Circuit Diagrams 1 and 2, and Relay Circuit Diagram are absent from this edition. Detailed explanations of older service switches also require the separate G3 Facsimile Service Data Handbook, which is not included.

Paper-Feed Repair, Service Tests, and Fax Diagnostics

• Paper-feed and carriage repair: Service-part replacement notes, motor positioning, gear phasing, lift-cam adjustment, solenoid spring orientation, and carriage-shaft clip placement.

• Scanner and ADF service: Document-feed troubleshooting, sensor and connection checks, scanner white-sheet placement, and cleaning of feed rollers and separation components.

• Control-board and ink-system service: Flexible-cable routing, SPCNT board replacement settings, waste-ink counter registration, lubrication diagrams, and post-repair verification.

• Test menus and calibration: Test Mode and Factory Mode maps, operation-panel and print tests, EEPROM reports, and CD-R sensor calibration for applicable regional models.

• MP780 fax diagnosis: Communication-isolation flowcharts, service activity reports, system data and dump lists, and user/service error-code tables.

• Parts identification: Exploded views and part numbers for scanner, ADF, control boards, paper-feed, carriage, power-supply, purge, platen, and ink-absorber assemblies.

Canon’s service material is written for qualified service technicians; the Quick Start Guide and setup sheet separately address owner operation and routine maintenance.

Repair Adjustments and Board Handling

Repair coverage includes paper-feed motor and belt positioning, carriage-shaft gear phase, lift-cam timing, solenoid spring orientation, and scanner white-sheet placement. Illustrated lubrication points accompany the special-tool listings for MOLYKOTE HP300, CK-8012-000, and FLOIL KG-107A, QY9-0057-000, with their gear, shaft-lift, carriage, and carriage-shaft applications.

The waste-ink instructions distinguish preserving the recorded absorber capacity after SPCNT board replacement from resetting the counter after absorber replacement. That distinction helps prevent a board replacement from erasing the service history of an absorber that remains installed.

Improper flexible-cable routing can break conductors and cause smoke or ignition, while residual capacitor charge can damage the SPCNT board. The repair notes also warn that loosening the wrong red chassis screws disturbs carriage-shaft positioning and that an incorrect power-cycle method can leave service data unwritten.

Observe the manual’s electrical-isolation and static-discharge precautions during board work.

Factory Menus, Reports, and Print Checks

The Test Mode and Factory Mode maps list system, scanner, printer, modem, sensor, CCD, carriage-gear, and CD-R functions. Many entries are explicitly marked as not used in the field; the documented operation-panel tests, service print checks, and CD-R calibration should be distinguished from those menu listings.

Service test prints and EEPROM information identify nozzle condition, print alignment, counters, and waste-ink records. MP780 system data lists, system dump lists, and sending/receiving activity reports provide communication history, service codes, and protocol details for fault tracing.

CD-R calibration applies to the equipped 230V configurations. The SPCNT flash-ROM section describes USB update prerequisites, but the firmware files and detailed upgrade bulletin are separate resources, not part of this set.

Supporting documents cover control identification, document and paper handling, copying, direct camera printing, MP780 fax setup and operation, ink-tank replacement, print-head maintenance, common error indications, major service parts, and page-count access.

Fax Error Codes and Communication Isolation

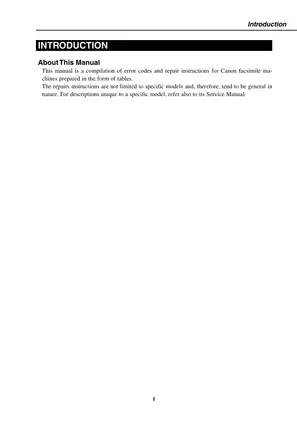

The error-code volume separates user codes from service codes and identifies transmission, reception, or both. Its tables connect fault descriptions with possible causes and remedy logic, covering document-feed, memory, polling, paper, and dialing faults alongside carrier detection, modem compatibility, and ECM/V.34 communication errors.

Model-dependent entries also address thermal heads, stepping motors, backup memory, and control boards. These belong to the broader Canon fax reference, rather than indicating that every listed component is fitted to the PIXMA models.

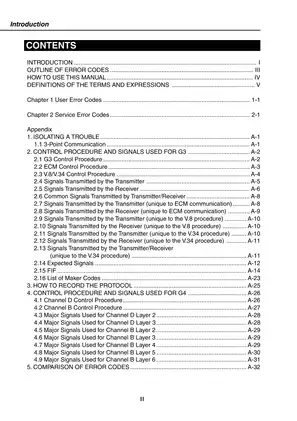

The Three-Point Communication flowchart helps distinguish faults in the local machine, the remote machine, and the telephone line. G3, ECM, and V.8/V.34 control diagrams accompany expected-signal tables, FIF bit fields, maker codes, and the Wiring Diagram for Recording the Protocol.

G4 sections explain channel D and channel B procedures and layer signals. The reference also includes error-code conversion tables and definitions for transmission levels, the NL equalizer, page timing, T0/T1/T5 timers, and echo-related settings.

Parts Views and Disassembly Limits

Canon states that the service manual alone does not provide sufficient detail for full disassembly and reassembly. The included Parts Catalog supplies thirteen exploded figure groups and component callouts, but it is not a step-by-step teardown sequence.

SPCNT board part-number assignments differ between the service manual and the later parts documents, so board selection requires checking the installed unit.

The SPCNT Board Ass’y Wiring, Relay Board Ass’y Wiring, and Power Supply Unit Wiring illustrations show connector routing. These photographs and cable-placement views support assembly work but do not replace the missing electrical schematics.

Examples of Lubrication and Waste-Ink Data

The carriage lubrication table specifies 200–400 mg of FLOIL KG107A at the carriage-to-shaft sliding contact, with illustrations identifying the application area.

The waste-ink section documents a 0–100% capacity-entry range for the SPCNT board’s EEPROM. Its instructions distinguish transferring the recorded amount after board replacement from resetting the counter after absorber replacement.

Searchable PDFs, Bookmarks, and Image Detail

Text search and navigation: All nine PDFs contain searchable text, although report images in the service manual and some exploded-view labels are not searchable. Embedded bookmarks are present in the service manual, error-code reference, Parts Catalog, and Quick Start Guide. Legacy menu links in the error-code reference and Parts Catalog point to files outside this set. Small parts-view callouts benefit from zooming; some service-report samples remain soft when enlarged.

The ZIP contains nine printable English PDFs totaling 511 pages. That total includes an additional service-manual cover, the Parts Catalog cover, an introductory menu page in the error-code volume, its one blank page and four unused error-table pages, and the Quick Start Guide’s software-license page, together with the remaining covers, dividers, and back matter.
