Honda VF500C / VF500F 1984–1986 Clymer Repair Manual (P/N M329)
350 Pages • Printable PDF • 145.11 MB • Download
Honda Models Covered & Key Technical Specifications
Models: VF500C, VF500F, V30 Magna, 500 Interceptor
Sub-models / Variants: Magna, Interceptor, 49-state models, California models
Model Years: 1984–1986 (1984, 1985, 1986)
Serial Numbers: Frame serial numbers for the 1984 Interceptor engine-replacement notice: 000255–000584 (CA), 001839–001876, 001879–002023, 002025–002071, 002073–002157, 002159–002358, 002360–002556, 002558–002779 (49-state)
Frame-drain procedure applicability: Interceptor: 1984 California models—all frames; 1984 49-state models—000001–007500 and 002558–002779; 1985 California models—none affected; 1985 49-state models—000001–001624
-
Engine displacement: 498 cc
-
Engine type: Water-cooled, 4-stroke, DOHC, V-4
-
Transmission: 6-speed, constant mesh
-
Firing order: 1-4-3-2
-
Valve clearance (Intake): 0.12 mm (0.004 in.) for 1984-1985; 0.15 mm (0.006 in.) for 1986 (cold engine, below 35°C/95°F)
-
Valve clearance (Exhaust): 0.13 mm (0.005 in.) for 1984-1985; 0.15 mm (0.006 in.) for 1986 (cold engine, below 35°C/95°F)
-
Coolant capacity (Magna 1984-1985): 2.2 liters
-
Coolant capacity (Interceptor 1984-1985): 2.05 liters
-
Coolant capacity (1986): 1.70 liters
-
Idle speed: 1,300 ± 100 rpm
Honda Manual Features & Selected Content Preview
Clymer/Intertec's independent service and repair manual (P/N M329) covers the 1984-1985 Honda VF500C V30 Magna and 1984-1986 VF500F 500 Interceptor. This is a Clymer publication, not a Honda factory manual.
Text Search, Bookmarks, and File Condition
Search and diagram detail: Text search works through much of the book, with OCR errors and gaps in the electrical chapter and final wiring diagrams. Embedded bookmarks lead to chapter openings, the supplement, index, and wiring section. Small wiring labels require zooming.
Engine-page gaps: Printed pages 87 and 103 are missing from the engine chapter. Printed carburetor-service page 146 is upside down and needs viewer rotation.
One printable, English-language PDF contains 350 pages: seven front-matter pages, 310 main-chapter pages, 26 pages of 1986 Service Information, four index pages, and three wiring-section pages. The main-chapter count includes six duplicated pages; the final two PDF pages contain wiring-diagram spreads.
V-Four Repair, Tune-Up, and Electrical Diagnosis

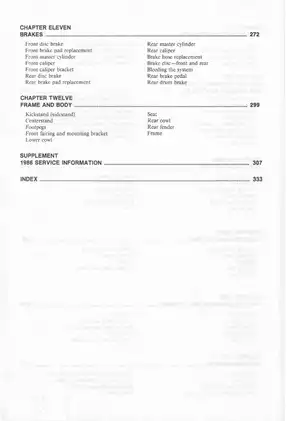

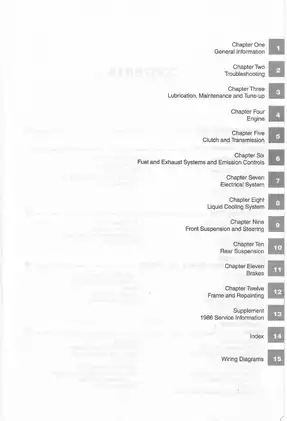

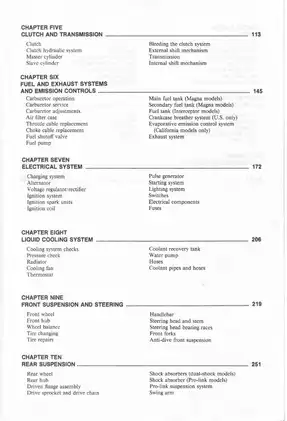

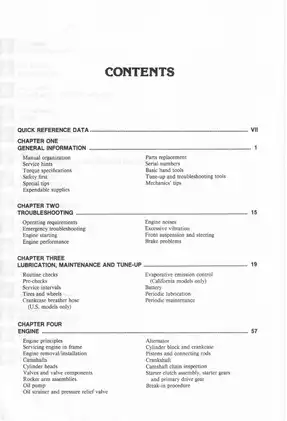

These selected contents show the main service areas rather than reproduce the full table of contents. Other topics include tire changing and instrument-cluster service.
-
Engine and timing: Step-by-step engine removal and installation, camshaft and chain service, cylinder heads, valves, rocker arms, oil-system inspection, crankcase work, pistons, connecting rods, crankshaft, and starter clutch.
-
Clutch and transmission: Hydraulic clutch, master- and slave-cylinder service, bleeding, transmission shaft and gear inspection, and external and internal shift mechanisms.
-
Fuel and emissions: Carburetor removal, cleaning, inspection, synchronization, and adjustment; model-specific fuel tanks and pump service; exhaust removal; and emission-control hose routing.
-
Cooling system: Pressure checks, radiator removal, fan and thermostat testing, water-pump inspection and replacement, coolant pipes, and hose service.
-
Chassis and brakes: Front-fork overhaul and oil replacement, TRAC anti-dive, steering bearings, wheels and hubs, dual-shock and Pro-Link suspension, swingarm bearings, drive-chain work, hydraulic discs, the Magna rear drum brake, and bleeding.
-
Electrical diagnosis: Charging-system leakage and output tests, alternator and regulator/rectifier checks, CDI ignition and pulse-generator diagnosis, starter troubleshooting, switch and sensor checks, lighting service, and wiring diagrams.
-
1986 revisions: Updated tune-up data, timing references, engine hardware, bearing selection, carburetion and emissions layouts, fuel-pump equipment, cooling service, and chassis procedures.
With routine maintenance sections plus internal engine and transmission repair coverage, this manual is suited to mechanically experienced owners for regular service; major disassembly, precision measurement, hydraulic work, and complex electrical testing call for technician-level skills and proper shop equipment.
Tune-Up and Internal Repair Depth
The tune-up material connects compression testing, spark-plug condition, ignition timing, valve clearance, and four-carburetor vacuum balance to actual symptoms instead of stopping at a maintenance schedule.
Engine inspection is supported by component torque tables, camshaft and valve limits, piston and cylinder measurements, oil-pump clearances and pressure-test data, connecting-rod and main-bearing selection charts, and transmission and shift-fork specifications.
The camshaft chapter warns that allowing the chains to lose engagement while the crankshaft is turned can kink them and damage the crankshaft sprockets, tensioners, or crankcase. The clutch chapter identifies piston damage from an unrestrained slave-cylinder piston during removal.
Magna and Interceptor Service Differences
Magna procedures cover the main and secondary fuel tanks, dual rear shocks, and rear drum brake. Interceptor sections address its fairing and lower cowl, single fuel tank, Pro-Link suspension, and rear disc brake.
Model-specific cooling layouts, wheel and hub procedures, brake hoses, and access steps help match the work to the correct machine before disassembly.
Component limits: The Magna shock's sealed damper is replaced as a unit; Pro-Link shock work requiring a hydraulic press is directed to a dealer. Damaged water-pump bearings also require replacement of the pump assembly.
Using the 1986 Service Information
The supplement works with the main chapters, supplying changed procedures and specifications. For 1986, the front-cylinder timing reference changes from TF to T-2, while the rear changes from TR to T-1. Valve-clearance, spark-plug, carburetor-synchronization, oil-capacity, and coolant-capacity data are revised.
Engine hardware: Updates include additional camshaft-holder fasteners, pressed-in locating dowels that are not to be removed, and a different clearance-measurement method for the line-bored camshaft-holder and cylinder-head assemblies.
Cylinder-head studs with cap nuts, revised oil-strainer retention, new connecting-rod identification marks, and updated bearing-selection tables are also covered.
Fuel, cooling, and chassis: The fuel pump and fuel-pump relay are deleted for 1986. Revised California evaporative-emissions hose routing, ignition-coil test data, radiator removal, and front-wheel, handlebar, and rear-wheel service changes are documented.
Electrical References and Service Tools
Spark-unit diagnosis: The ignition spark units have no component bench-test procedure or specification. The electrical chapter directs diagnosis through the ignition coils, pulse generators, and wiring harness before substitution with known-good units.
Illustrated references include the charging-system circuit, ignition-system circuit, Magna radiator assembly, TRAC anti-dive exploded view, and wiring diagrams titled 1984-1985 VF500C Magna and 1984-1986 VF500F Interceptor.
Specified service tools include Honda valve-adjusting wrenches 07708-0030100 and 07708-0030400, carburetor pilot-screw wrench 07908-KE70000, steering-stem socket 07916-3710100, and fork-seal driver 07947-3710101.
Engine removal and fork or shock service require proper support and pressure release where specified; brake and clutch work requires suitable eye protection and careful handling of hydraulic fluid.
A Preview of Thermostat and Ignition-Coil Test Data
The main cooling-system chapter specifies thermostat opening at 80–84°C and a minimum valve lift of 8 mm at 95°C, alongside its hot-water inspection procedure.
For the 1986 ignition coil, the supplement specifies 14,000 ohms for the resistance check between a secondary-lead receptacle and a mounting bolt.
