MV Agusta F4 Serie Oro Engine Workshop Manual (P/N 8A0092871)

This factory workshop manual covers the MV Agusta F4 Serie Oro engine, clutch, and gearbox (P/N 8A0092871). It is the engine volume: chassis, suspension, brakes, bodywork, and full motorcycle wiring and electrical diagnostics are outside its scope.

PDF Search, Bookmarks, and Page Count

Text lookup and navigation: The manual text is not searchable, and there are no embedded PDF bookmarks.

One printable English PDF contains 67 pages, including the original cover and contents page.

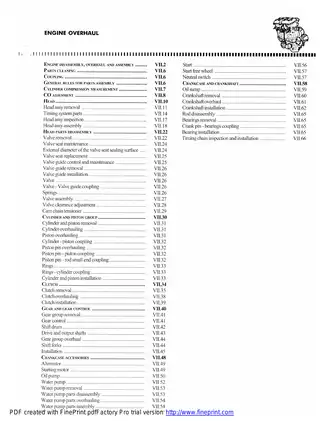

Engine Overhaul, Clutch Repair, and Gearbox Checks

These selected workshop topics outline the coverage rather than reproduce the complete contents list. Further topics include parts cleaning and general assembly guidance.

• Compression and fueling checks: Cylinder compression testing, throttle-body synchronization, and CO adjustment using Marelli DST, a vacuum gauge, and an exhaust-gas tester.

• Cylinder head and timing: Head removal and reassembly, head-gasket selection, camshaft timing, and cam-chain tensioner inspection and adjustment.

• Valves, cylinders, and pistons: Valve-seat and guide repair, clearance-shim selection, cylinder ovality checks, piston matching, and piston-ring inspection and installation.

• Clutch and transmission: Clutch-pack overhaul, gear-group removal, shift-drum and fork inspection, shaft and bearing checks, and gearbox bench testing.

• Crankcase and rotating assembly: Oil-sump service, crankcase separation, crankshaft and connecting-rod work, bearing selection, and timing-chain inspection.

• Engine accessories: Alternator and starter-motor removal and installation, oil-pump and water-pump service, starter-freewheel inspection, and neutral-switch replacement.

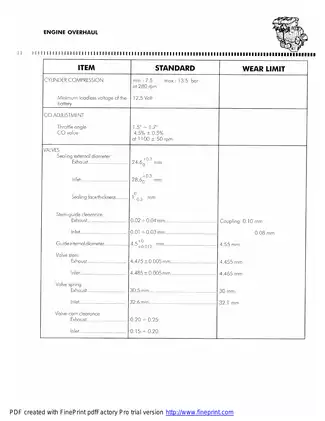

• Workshop reference data: Dedicated tool numbers, component-specific tightening values, wear and clearance limits, dimensional classes, and color-coded bearing-selection tables.

It is suited to professional technicians and experienced engine builders who already have precision measuring equipment, special tools, and the skills needed for valve-seat machining, bearing selection, and crankcase work.

Compression Testing and CO Adjustment

The compression section relates abnormal readings to combustion-chamber deposits, valve sealing, head-gasket condition, and piston/cylinder wear. It also explains why battery condition and cranking speed matter when interpreting the test.

CO adjustment combines Marelli DST readings with cylinder-vacuum balancing and exhaust-gas measurement. The procedure includes checks for stable throttle return and air leakage in the vacuum-gauge connections.

Cylinder Head, Timing, and Top-End Repair

Head inspection covers combustion chambers, cooling passages, mating-surface flatness, and spark-plug threads. Head-gasket selection uses piston-to-cylinder deck-height measurements and distinguishes two gasket thickness classes.

Camshaft positioning is tied to the phonic-wheel mark, cam-gear references, and timing-chain pin locations. The manual provides step-by-step procedures for head disassembly and reassembly, with separate instructions for the chain tensioner.

Valve and piston work: Valve repair extends to three-angle seat cutting, seat replacement, guide removal and installation, spring checks, and sealing checks. Shim selection is calculated from measured valve clearance and the installed shim thickness.

Cylinder and piston coverage includes letter-class matching, pin and small-end inspection, and ring end-gap checks. The cylinder-installation cautions identify brittle piston rings as vulnerable to breakage during insertion.

Clutch, Gearbox, and Bottom-End Work

Clutch-stack illustrations show the special indexing of the final plate. Gearbox checks use the specified simulation tool to assess engagement, disengagement, and fork-to-groove clearance before installation.

The gearbox installation warning links incorrect neutral positioning to damage at the neutral switch.

Bearing selection: Journal-size classes, bearing-thickness ranges, and shell colors support matching replacement bearings to the measured crankshaft and connecting-rod components. This gives a rebuilder a basis for selecting bearing grades alongside the working-clearance checks.

Oil Pump, Water Pump, and Starting Components

Water-pump instructions extend to rotor, shaft, bearing, O-ring, and sealing-component inspection. Oil-pump checks address scoring and deformation.

Starter-freewheel coverage includes disassembly, inspection, and installation orientation. The neutral switch is treated as a replacement item rather than a serviceable assembly.

Special Tools, Illustrations, and Safety Notes

Compression testing references spark-plug tool 89013, while head-gasket selection uses measuring tool 94793. Clutch, gearbox, and valve-seat work reference 79015, 94792, and 95321; starter-freewheel tools are 94794/94795.

Additional numbered tools support valve, cotter, stem-seal, seat, and guide work.

Visual references include cam-timing and phonic-wheel alignment views, piston/cylinder measurement drawings, and a multi-angle valve-seat section. Clutch-stack and gearbox-control illustrations accompany exploded views of the water pump and starter-freewheel assemblies.

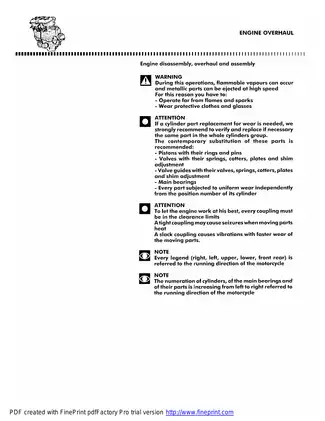

Safety notes address flammable vapors and metal parts that may be ejected during overhaul work, the cool-engine requirement for water-pump removal, and burn hazards when pump housings or cylinder-head components are heated.

Selected Piston-Fit and Clutch-Wear Specifications

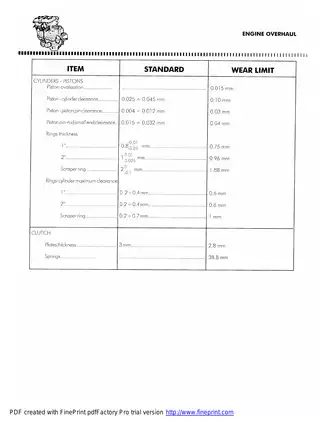

Piston-to-cylinder clearance is specified at 0.025–0.045 mm, measured at 20°C. The piston/cylinder section identifies the measurement locations and distinguishes standard clearance from the wear limit.

For clutch inspection, friction plates have a standard thickness of 3 mm and a wear limit of 2.8 mm.
