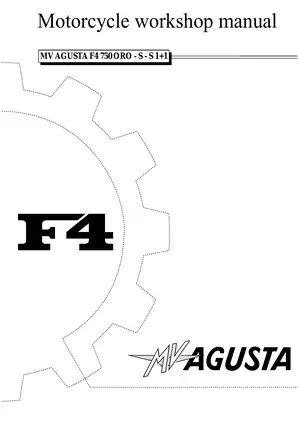

MV Agusta F4 750 – 2003 Chassis Service Manual (P/N 8A0092874)

This MV Agusta chassis workshop manual covers the F4 750 ORO, F4 750 S, and F4 750 S 1+1. Part No. 8A0092874, Edition No. 1, was printed in April 2003.

PDF Search, Wiring Detail and File Layout

Search and diagram detail: Body text is searchable across the files, but cover artwork and some diagram lettering are outside text search. There are no chapter bookmarks; the opening PDF has only a cover-page link. Small labels in the main wiring and injection diagrams require zooming.

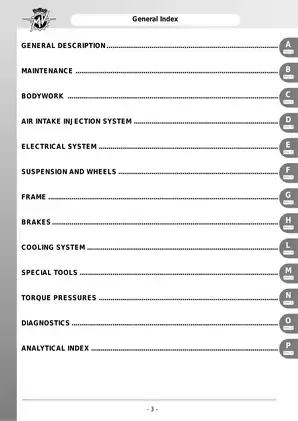

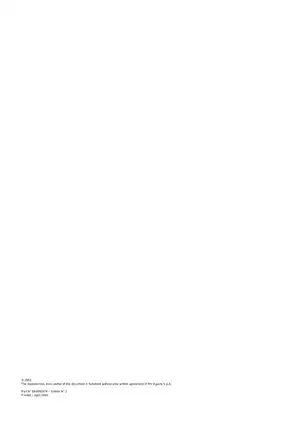

One ZIP contains 14 printable PDFs totaling 388 pages. This includes six opening pages, two closing imprint/cover pages and five section-ending divider pages, together with the chapter title pages and analytical index.

Chassis Repair, Maintenance and Electrical Diagnosis

These selected topics show the main workshop coverage rather than a complete contents list. Other examples include headlight alignment and instrument-display settings.

• Maintenance and tuning: Periodic service schedules, oil and filter replacement, valve-clearance measurement, spark-plug service, throttle-body vacuum balancing and CO adjustment.

• Fuel management: Injector and fuel-pump checks, intake-air and throttle-position sensor tests, plus fuel-filter and pump-flange service.

• Electrical diagnosis: Charging and starter-system troubleshooting, ignition checks, safety interlocks, relays, fuses and instrument-connector tests.

• Suspension and wheels: Front-fork overhaul, steering bearings, rear-shock removal and adjustment, linkage and swingarm bearings, rear-hub service and wheel balancing.

• Brakes: Pad replacement, caliper and master-cylinder removal, disc inspection, fluid replacement and bleeding.

• Cooling: Leak and cap-pressure tests, radiator and fan removal, thermostat and temperature-sensor checks, refilling and final operation checks.

• Bodywork and frame: Illustrated removal sequences for fairings, tail, tank, airbox, exhaust, throttle body, frame, subframe, starter motor and engine.

Written for MV Agusta dealers and qualified mechanics, this manual assumes motorcycle-repair knowledge and access to the specified stands, meters, pressure testers and special tools.

Valve Checks and Internal Engine Work

For the DOHC radial-valve engine, valve-clearance coverage includes illustrated access and measurement procedures, timing-mark references and recording sheets. Adjustment-pad replacement, timing-chain, guide and tensioner work, and internal engine rebuilding require the separate F4 workshop engine manual, code 8A00A1592, which is not included.

ORO Components and Production Changes

ORO-specific material identifies carbon-fiber bodywork, magnesium wheels, the magnesium swingarm and pivot plates, adjustable footrests, and different front-disc hardware and fastener treatment.

The maintenance chapter explains the early oil-filter mounting-area correction and updated black filter/band kit 8000A1428. Alongside the production-specific rear-shock settings and cooling-fan wiring layouts, these details help match parts and procedures to the motorcycle's build.

Fuel, Ignition and Electrical Fault Tracing

The Weber-Marelli IAW 1.6M sections explain injection-time compensation, pressure regulation, pump timer/relay control and direct-induction airflow. Component checks cover injector coils, ignition coils, the engine pickup, battery current loss and charging output.

Connector references identify RX, ground and TX functions at the diagnostic socket, throttle-position sensor terminals and the instrument panel's 20-contact connector. The circuit drawings and component tests can be used together to trace starting and charging faults.

Drawings include separate F4 ORO and F4 S/S 1+1 electrical diagrams, the injection-system electrical diagram, starter-system diagnostic flowchart, charging-circuit operating diagrams and frame reference-measurement drawing.

Workshop Equipment and Assembly Cautions

Step-by-step instructions cover fork disassembly and reassembly, swingarm-bearing replacement, rear-hub inspection and frame removal. Rear-shock coverage is limited to removal, external checks and settings; the manual warns against opening the pressurized shock body.

The tool register identifies front-wheel spindle wrench 800092872, steering-bearing wrench 800091645 and fork spring tool 800094919. It also lists chain tool 800095389, rear-suspension setting rod 800093347 and diagnostic software 800093877; procedures call for a vacuum gauge, multimeter, press and dial indicator where applicable.

Reference tables supply approved fluids, capacities, clearances, wear limits, suspension settings and electrical test data. Separate ORO and S/S 1+1 torque tables cover chassis components and exclude internal-engine fasteners.

The rear-wheel retaining nut has a left-hand thread, and excessive rear-hub clamp torque can damage the eccentric hub. The cooling-fan instructions distinguish lead routing that prevents contact with fan blades or hot exhaust parts.

Secure the motorcycle on the specified supports and follow the factory cautions for fuel, hot or pressurized coolant, corrosive brake fluid, the nitrogen-charged rear shock and lifted chassis assemblies.

Selected Spark-Plug, Pickup and Fuel-Pressure Data

Spark-plug service specifies an electrode gap of 0.6–0.7 mm. The engine-pickup check gives approximately 680–700 ohms, measured across the disconnected pickup connector.

The fuel-system description lists regulated injector supply pressure as 3.0 kg/cm² (300 kPa). This is the pressure-regulator specification, distinct from the pump's pressure-release setting.
