Bernette 334DS/334S (1999) Overlock Sewing Machine Instruction Manual
30 Pages • Printable PDF • 6.41 MB • Download
Bernina Models Covered & Key Technical Specifications
Models: 334DS, 334S
Sub-models / Variants: 2-needle 4-thread overlock, 1-needle 3-thread overlock, 1-needle 2-thread overlock
Trade Names: Bernette, Made for Bernina
Model Year: 1999
-
Sewing speed: Up to 1500 stitches per minute
-
Needle system: 130/705 H
-
Stitch length: 0.8–4 mm
-
Seam width (2/3 thread): 3–7 mm
-
Seam width (4 thread): 5–7 mm
-
Weight (334DS): 7.5 kg (approx. 16 lbs)
-
Weight (334S): 7.4 kg
-
Dimensions: 300 W x 325 D x 300 H mm
Bernina Manual Features & Selected Content Preview
Bernette’s instruction manual for the 334DS and 334S overlock machines covers threading, sewing adjustments, routine maintenance, and stitch troubleshooting. The printed document code is 501 546 13 GB.
Printable PDF and Page Navigation

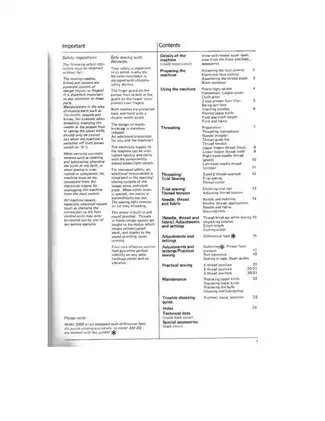

Text search and navigation: PDF text search is not available, and there are no embedded PDF bookmarks. The printed contents page and index provide topic references.

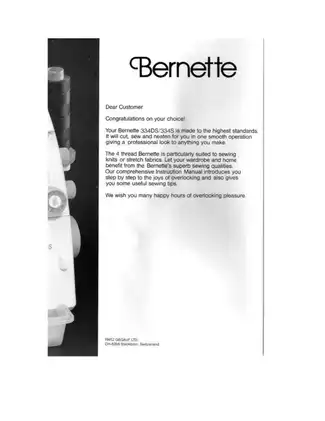

The download contains one printable, English-language 30-page PDF. This total includes 24 numbered pages and six unnumbered pages covering the front cover, introduction, machine views, technical data, and rear-cover accessory overview.
Threading, Stitch Adjustment, and Owner Maintenance
These selected topics outline the manual’s coverage rather than reproduce its full contents. Other illustrated subjects include securing thread chains and unpicking seams.
-
Stitch configurations: Two-needle, four-thread overlock with integrated safety seam, plus single-needle, three-thread and two-thread configurations, including the conversion attachment.
-
Threading paths: Step-by-step instructions for both loopers and needles, with color-coded routing, tension-disc guidance, and the lower-looper threading device.
-
Stitch and fabric adjustment: Trial-sewing checks, thread-tension corrections, cutting-width adjustment, presser-foot pressure, roll hemming, and fabric-specific sewing settings.
-
334DS differential feed: Front and rear feed-dog operation, settings for controlling fabric distortion, and gathering guidance; these sections do not apply to the 334S.
-
Maintenance and troubleshooting: Illustrated replacement procedures for needles, presser feet, the lower knife, and the bulb, plus cleaning, lubrication, and a problem/cause/solution guide.
The illustrated setup explanations suit owners learning to use these overlockers and those handling the routine maintenance described in the manual.
Machine Layout and Threading Configuration

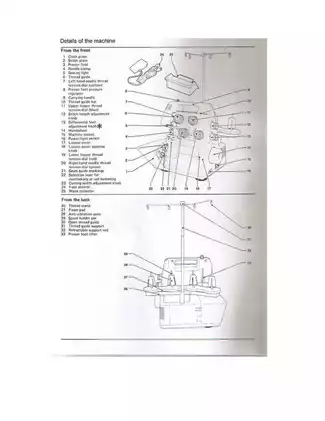

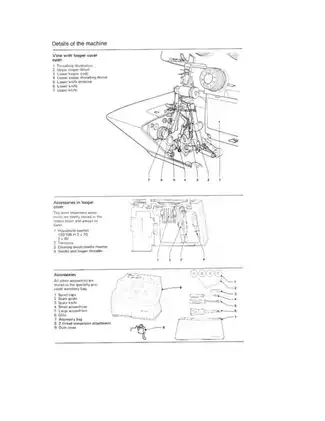

Labeled machine views identify the upper and lower loopers, lower-looper threading device, upper and lower knives, stitch plate, and swing-out presser foot. They also locate the pressure regulator, tension dials, cutting-width adjustment, roll-hemming selector, thread guides, and waste collector.
Threading is broken out by path: upper looper in blue, lower looper in red, right-hand needle in green, and left-hand needle in yellow. Separate illustrations explain the thread guide bar, tension-disc routing, and needle threader.
Needle-position illustrations distinguish narrow stitching with the right-hand needle from wider stitching with the left-hand needle for both two-thread and three-thread overlocking. The two-thread conversion instructions include attachment checks and the change back to three-thread or four-thread operation.
Two-thread seam limits: This configuration is described for edge finishing, decorative work, and flat joining with special threads. The manual cautions against using it for ordinary overlocked construction seams because they can come apart over time.
Stitch Balance and Fabric Settings
Trial-sewing pages show how stitch appearance changes when individual looper or needle tensions are incorrect, making the guide useful for diagnosing an unbalanced seam instead of simply giving one generic tension number.
The needle/thread/application table distinguishes fine seams and roll hemming, general seams, edge finishing, stretch seams in knits, and decorative thread use. The cutting-width illustrations relate knife position to the active needle and show how fabric-edge curling differs from loose loop formation.
Differential feed: The 334S has no differential feed; asterisks identify guidance exclusive to the 334DS. Its fabric table covers thick wool knits, cotton and synthetic jerseys, woven fabrics, fine nylon jersey, lining fabric, satin, and poplin.
Presser-foot pressure guidance distinguishes firm fabrics such as denim and tweed from lightweight fabrics such as chiffon, georgette, and batiste. Excessive pressure is identified as a cause of waving in knits.
Practical sewing examples cover four-thread seams in thick knits, jerseys, and fine woven fabrics; narrow and wide edge finishing; three-thread stretch seams; two-thread flatlock; and three-thread decorative edging. Separate roll-hemming settings cover two-thread and three-thread work. Gathering guidance combines differential feed with stitch, cutting-width, and tension settings, while tape insertion and seam-guide illustrations address seam stabilization and consistent fabric guidance.
Maintenance and Troubleshooting
The lower-knife replacement illustration shows its alignment with the stitch plate. The moving upper knife is a special-material component that normally does not need replacement; damage is referred to a Bernette dealer. Cleaning and lubrication drawings identify the limited lubrication points.
The troubleshooting table covers uneven fabric feed, thread breakage, needle breakage, skipped stitches, poor stitch formation, waviness, puckering, and curling fabric edges, with references to the relevant adjustment pages. A blunt or incorrectly positioned lower knife is identified as a possible cause of uneven feeding.
Incorrect needle insertion and pulling the fabric while sewing are linked to needle breakage. The needle illustrations show the required orientation and seating, while the troubleshooting guidance distinguishes these faults from tension problems.
Always disconnect the machine from the electricity supply before maintenance work or working around the needle, knife, or looper area.
Repair Scope
This is an instruction and maintenance manual, not an internal workshop repair manual. It contains no motor teardown, internal timing procedures, electrical wiring diagrams or repair schematics, torque specifications, or specialist service-tool procedures. The safety section directs machine repairs, especially electrical repairs, to service agencies.
Selected Needle, Feed, and Lamp Specifications
The needle-selection section specifies sizes 70–90 and explains how needle size relates to thread choice and skipped stitches.
For the 334DS, the differential-feed reference gives N–2 for preventing waving or fluting in knits and 0.7–N for reducing puckering. The accompanying fabric table links settings to different materials.
The bulb-replacement section distinguishes a 15 W lamp for 115 V machines from a 10 W lamp for 220/230/240 V machines.
