2000 Piaggio Vespa ET4 150 cc Scooter Service Station Manual (P/N 594458 11/00)

Piaggio's Service Station Manual for the 2000 Vespa ET4 150 cc covers engine repair and scooter chassis service across ten chapters. The cover carries the document reference Dis. 594458 11/00.

PDF Languages, Search and Diagram Detail

Search, bookmarks and wiring labels: PDF text search and embedded bookmarks are not available. Small wire-color codes and connector labels in the main wiring diagram require zooming.

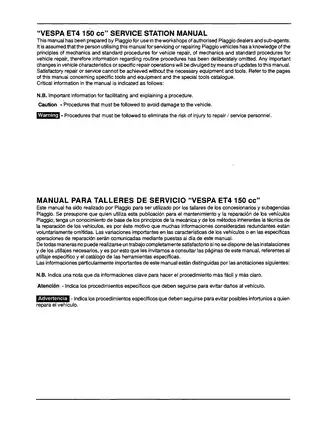

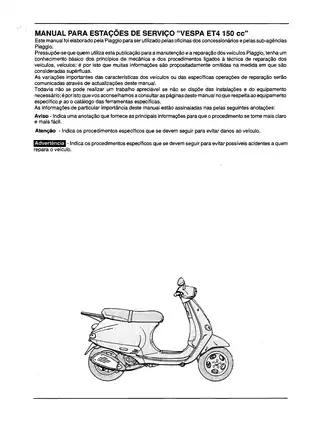

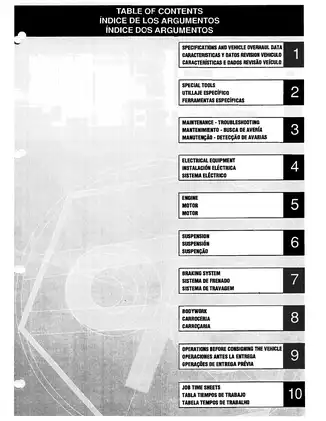

One printable 282-page PDF combines English, Spanish, and Portuguese text. The total includes the cover, two introduction pages, one contents page, eight blank pages, and the 24-page job-time section.

Engine, CVT and Scooter Electrical Service

These are selected workshop topics; the manual also covers headlamp aiming and flexible control-cable servicing.

• Engine repair: Step-by-step engine removal, cylinder-head and crankcase disassembly, valve-clearance adjustment, timing-system assembly, compression testing, and lubrication-system inspection.

• CVT and reduction gearbox: Variator rebuilding, drive-belt inspection, clutch and driven-pulley overhaul, kick-start sector service, and gearbox bearing replacement.

• Fuel system: WALBRO WVF6 vacuum carburetor overhaul, automatic choke testing, vacuum fuel-tap checks, and idle-mixture adjustment with exhaust-gas analysis.

• Electrical diagnosis: Wiring diagrams, immobilizer LED flash codes, transponder-key programming, ignition pick-up and high-voltage coil tests, and charging-system checks.

• Brakes and suspension: Front disc-brake caliper and master-cylinder repair, hydraulic bleeding, rear brake adjustment, steering-bearing service, and front suspension overhaul.

• Workshop references: Maintenance schedules, vehicle overhaul data, special-tool identification, bodywork removal procedures, pre-delivery checks, and illustrated job time sheets.

Written for authorized Piaggio dealer workshops, this manual assumes knowledge of mechanics and standard vehicle repair procedures, together with the necessary workshop tools.

Engine Overhaul and Lubrication

Internal engine coverage includes piston-to-cylinder mating classes, oversize piston selection, piston-ring inspection, and crankshaft alignment checks. Base-gasket selection tables relate piston position to compression ratio, while cylinder-head reassembly includes the factory tightening sequence.

Camshaft, rocker, valve-guide, and valve-seat inspections accompany timing-chain and automatic valve-lifter procedures. Forced-air cooling components, oil-pressure testing, oil-pump inspection, and pressure-regulating bypass-valve service are also covered.

Crankshaft limits: The instructions call for replacement when the crankshaft main-bearing seats are defective; reconditioning those seats and separate replacement of the big-end bearings or connecting rod are not provided for.

The lubrication notes explain how a blocked piston-cooling jet can overheat and damage the piston, while a displaced jet can reduce bearing oil pressure.

Variator, Clutch and Gearbox Service

CVT inspection extends to roller and guide-shoe wear, pulley bushings, driven-pulley seals and bearings, and clutch springs. Reduction-gearbox illustrations show shaft, gear, bearing, and oil-seal removal and installation, including the gear arrangement for short-wheelbase vehicles.

The clutch instructions warn that prying the shoes apart can deform their retaining springs and upset the balance between the shoes. Special-tool references include clutch drum retainer 19.1.20423 and kick-start spring fitting tool 19.1.20432.

WALBRO Carburetor and Fuel-Supply Diagnosis

Carburetor procedures address the diaphragm and vacuum valve, float and needle, accelerator pump, automatic choke, and electric heater. Vacuum fuel-tap testing and a California evaporative-emission system diagram extend the coverage beyond the carburetor.

Exhaust-gas analysis: Idle setup discusses CO, CO2, and hydrocarbon readings alongside possible mixture, ignition, timing, and valve-sealing faults. Gas analyzer 494929 is identified, with measurement conditions explained for interpreting the readings.

Immobilizer, Ignition and Wiring

The electrical section distinguishes missing-transponder or antenna faults from an unrecognized key code. Its LED diagnostic charts help narrow down an immobilizer-related no-start before ignition components are replaced.

Master and service key programming accompanies control-unit power-supply checks, variable spark-advance testing, coil resistance and peak-voltage measurements, and three-phase stator and voltage-regulator diagnosis.

Illustrations include the main wiring diagram with wire-color codes, ignition/automatic starter/heater circuit, battery recharge and starting circuit, and instrument-panel schematic. Connector-terminal drawings support the electrical tests.

Chassis Repair and Workshop Data

Front suspension procedures cover the steering-column pivot pin, needle bearings, seals, and retaining washers. Brake service includes disc inspection, caliper rebuilding, master-cylinder repair, bleeding, and rear shoe replacement.

Bodywork instructions address access to the instrument panel, immobilizer antenna, ignition switch, side panels, and footboard. Exploded views accompany the job time sheets and their operation codes.

Maintenance references supply fluid capacities, spark-plug settings, clearances, and wear limits.

Torque-reference limitation: Printed pages 1-9 through 1-12 are absent from this file. The engine torque-summary tables are present in Spanish and Portuguese; English torque values also appear within the repair procedures.

Work on ignition systems and internal engine components calls for appropriate shop equipment and the safety precautions specified in the manual.

Sample Clutch Wear Limits and Pick-Up Test Data

The clutch inspection section lists a normal drum internal diameter of 134.2 mm and a wear-limit diameter of 134.5 mm. These are component inspection dimensions for assessing the drum during driven-pulley service.

For ignition diagnosis, the pick-up resistance specification is 105–124 Ω with the engine switched off at 68°F (20°C). The temperature condition matters because resistance readings taken with a hot engine can be higher.
