Canon Models Covered & Key Technical Specifications

Models: Pixma MP620, Pixma MP620B

Model Years: 2008–2010 (2008, 2009, 2010)


  • Compatible AC adapter: 100V-240V 50/60HZ

Canon Manual Features & Selected Content Preview

Publication Pages
Canon PIXMA MP620 / MP620B Service Manual, 2008, including embedded Service Information Notice 5712 47
Canon PIXMA MP620 / MP620B Parts Catalog, 2009 7
Canon Service Information Notice 5709 — MP620 ink-tank installation, November 7, 2008 2
Canon Service Information Notice 5712 — MP620 service-manual addendum, December 10, 2008 1

The catalog’s assembly callouts support parts identification alongside the service manual’s removal procedures. The notices add ink-tank installation guidance and revisions to Section 3-2, Special Notes on Repair Servicing.

The set covers mechanical disassembly, assembly-level replacement, adjustment, error isolation, and parts identification. It includes cable-routing and connector-location material, but no component-level circuit-board repair chapter or electrical schematic set. Service-mode procedures require Canon’s computer-based Service Tool, described as operating only on a pre-registered computer; that software is not included.

PDF Text Search, Bookmarks, and File Contents

Search and illustration detail: All four PDFs have searchable main text. The service manual and parts catalog have embedded bookmarks; the two standalone notices do not. Text within some illustrations and test-print samples is not searchable. Small connector and pin labels in the catalog’s assembly illustrations require zooming.

The ZIP download contains four printable English PDFs totaling 57 pages. The service manual includes 44 numbered service pages, its cover, contents page, and an embedded copy of Notice 5712. The catalog’s cover and the separate copy of Notice 5712 are also included in the total.


Printer Fault Diagnosis, Disassembly, and Service Adjustments

The following selected contents outline the repair documentation rather than reproduce its complete contents. Additional topics include customer maintenance and transport preparation after repair.

  • Error diagnosis: LCD messages, Alarm/Power LED indications, and symptom-based troubleshooting for printing, paper feed, scanning, ink-system, and network faults.

  • Mechanical repair: Step-by-step removal procedures for the housing, scanner, operation panel, print unit, ASF, carriage, spur, platen, purge-drive, and switch-system assemblies.

  • Factory adjustments: EEPROM initialization, destination settings, absorber-counter reset or transfer, LF/Eject correction, button/LCD tests, print-head alignment, and LAN reset.

  • Post-repair verification: EEPROM and service-test printing, nozzle checks, copying, USB printing from both paper sources, and checks for the applicable direct-printing and communication functions.

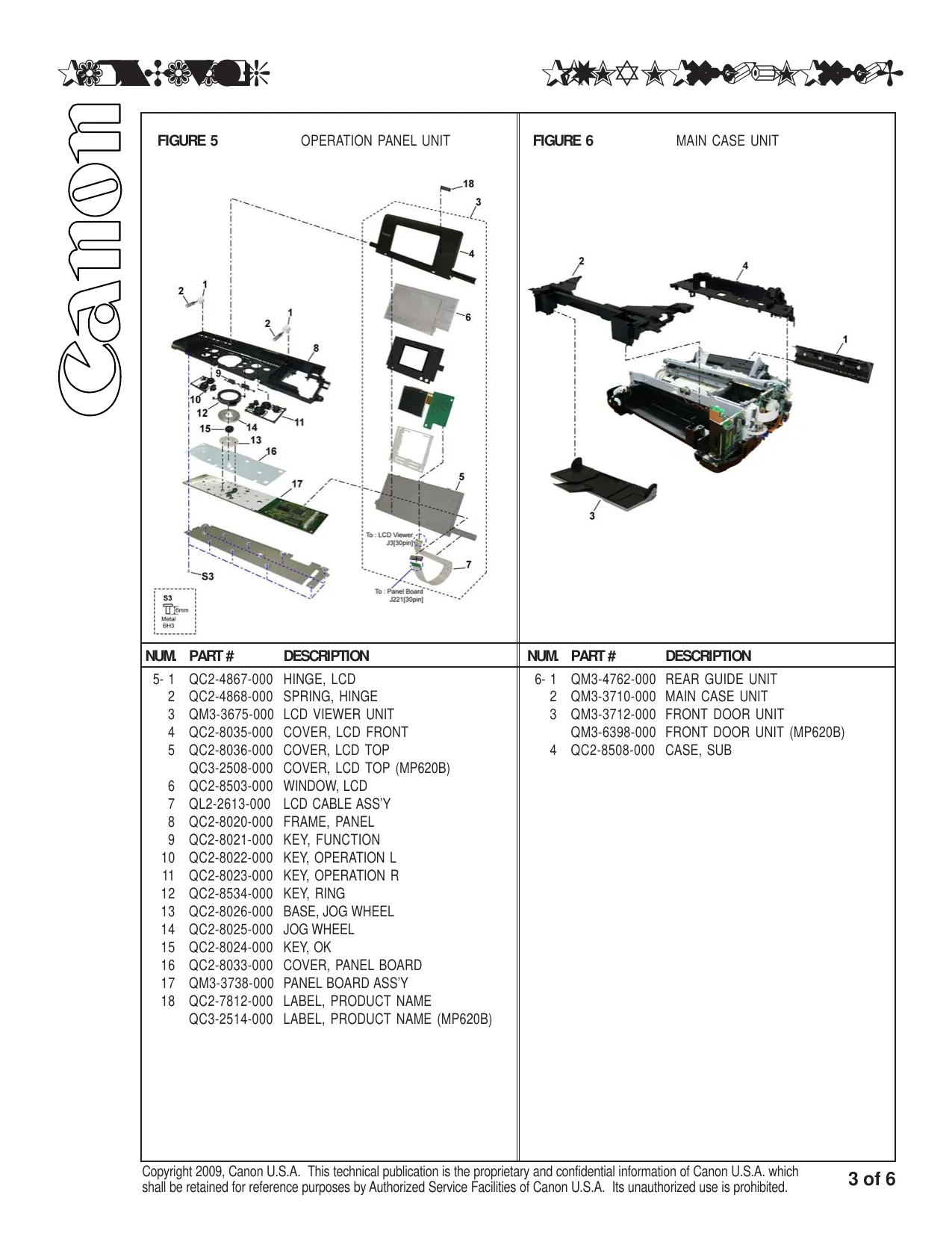

  • Parts identification: Twelve illustrated parts figures, including exploded assembly views, connect component callouts to replacement part numbers and identify MP620B-specific exterior parts.

This documentation is suited to experienced printer technicians and repair shops comfortable with mechanical teardown, electronics handling, EEPROM work, and Canon service-mode software. It is not an operator guide or a beginner repair manual.

Error Tables and Symptom-Based Troubleshooting

The error tables cover carriage and line-feed encoders, purge and pump sensing, ASF and APP mechanisms, ink-tank recognition and position, print-head faults, ink absorbers, EEPROM, USB-host overcurrent, scanner time-outs, flatbed-motor faults, and network hardware.

The symptom section addresses no power, sudden shutdown, abnormal noise, LCD faults, misfeeds, poor scanning, missing colors, white lines, paper smearing, image enlargement in either travel direction, and failed network printing. These checkpoints connect reported faults to contamination, cable, sensor, mechanism, motor, or board checks before replacement parts are selected.

EEPROM information printing provides recent operator-call and service-call error records for bench diagnosis.

Replacement Settings and Functional Checks

Logic-board replacement is followed by initialization, destination and absorber-data settings, ink-system checks, feed correction, panel testing, print-head alignment, language settings, and network initialization. The manual ties replacement assemblies to their required adjustments and verification work.

Separate instructions address paper-feed motor positioning, document-pressure-sheet replacement, and carriage-rail positioning. Cable-routing photographs show right-side harnesses, ink-sensor and WLAN wiring, and the left-side ground cable.

Post-repair checks extend to PictBridge, IrDA, wired LAN, WLAN, Bluetooth, Scan-to-Memory, and Card Direct operation where applicable, followed by internal inspection and transport preparation.

Assembly Views and Service Parts

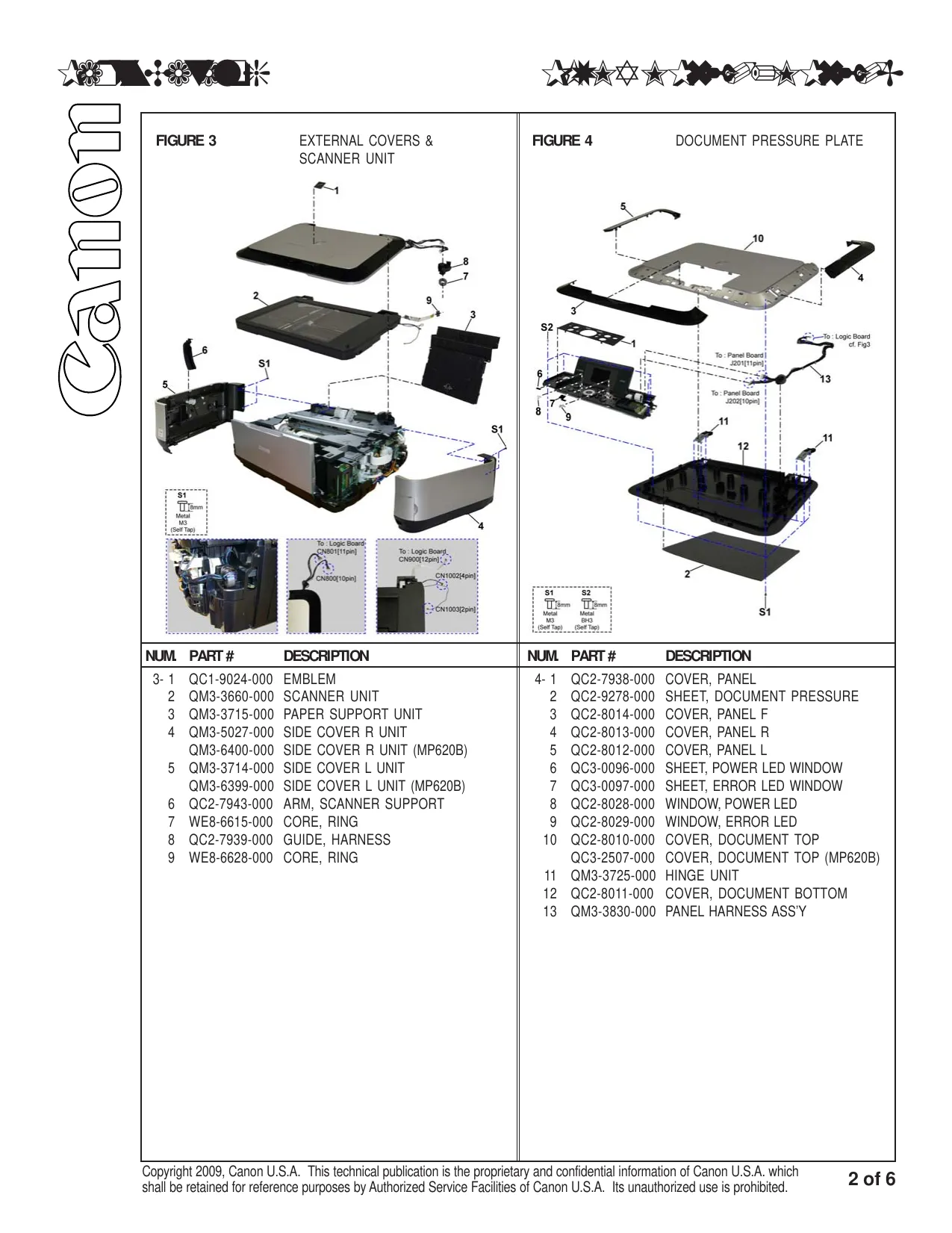

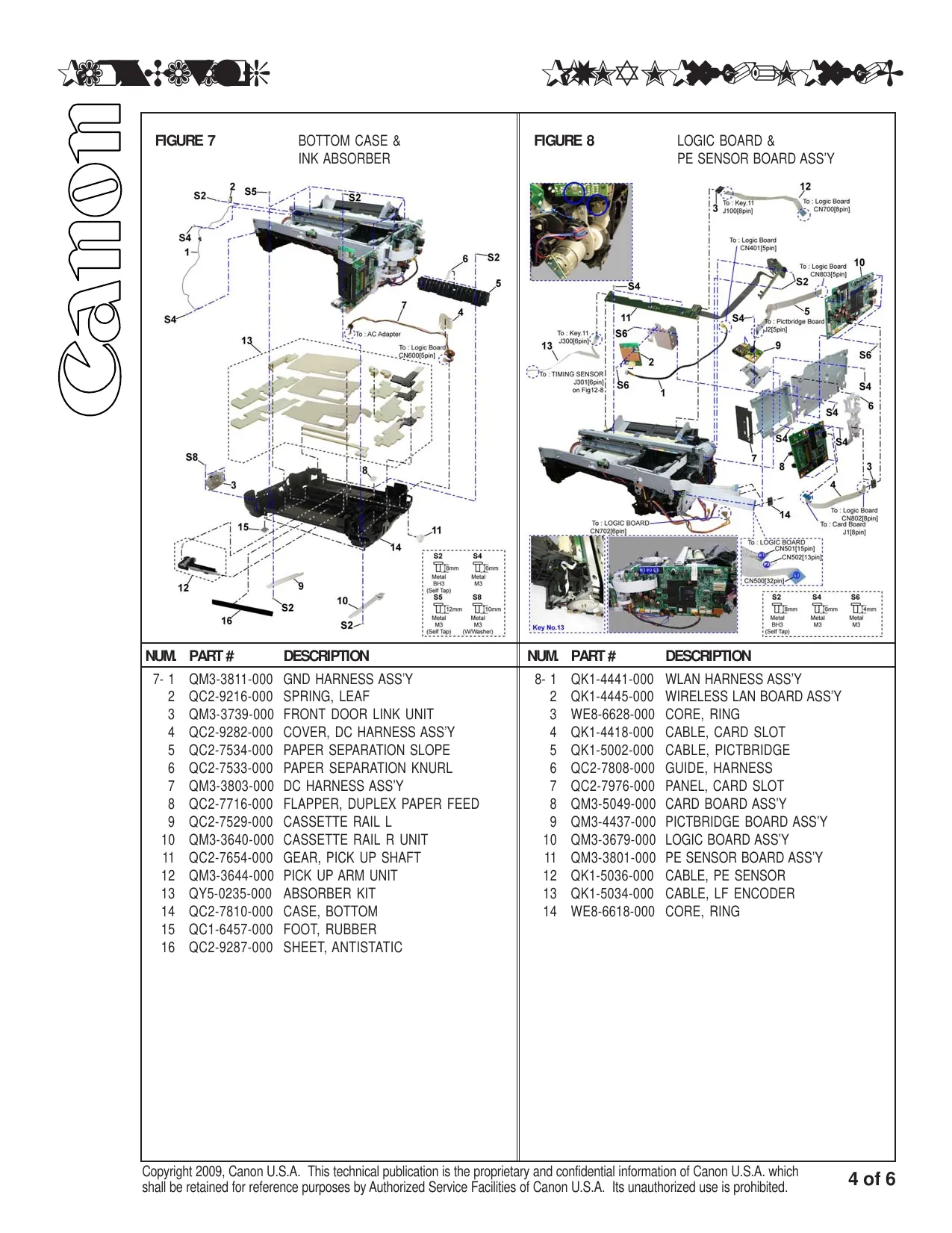

Catalog figures include External Covers & Scanner Unit, Logic Board & PE Sensor Board, and Sheet Feed Unit. Further views cover Carriage & Pressure Roller, Platen & Spur Unit, and Purge Drive & Switch System.

Listed service parts include the QM3-3716-000 cassette unit, QY6-0073-000 print head, QM3-3679-000 logic board assembly, QY5-0235-000 absorber kit, and QM3-5031-000 purge drive system unit.

Ink-Tank and Carriage Repair Cautions

Notice 5709 describes an incorrectly seated ink tank striking the main case, producing a 5100 carriage error and potentially a C000 drive-switch error after restarting.

Carriage servicing includes cautions about restoring the original rail position and protecting the timing slit films from grease, scratches, and bending; damage or contamination can disrupt position feedback.

Before internal service, Canon specifies power-cord removal, an approximately one-minute capacitor-discharge wait, and static precautions around the logic board, LCD, scanner, sensor, card, and WLAN electronics.

Selected Carriage-Rail and Scroll-Wheel Lubrication Data

The grease chart identifies FLOIL KG-107A, tool No. QY9-0057-000. For the carriage-rail sliding surface identified as drawing (1), it specifies 270–330 mg; the Easy-Scroll Wheel base sliding portions in drawing (8) are assigned 9–18 mg.

The chart also identifies separate lubrication locations on the main chassis, idler-pulley parallel pin, and APP code-wheel gear shaft, with illustrations linking the quantities to their respective contact areas.
