Ford Mustang/Cobra 2004 Repair Manual Set

The repair articles provide workshop procedures, while the Ford owner publications cover vehicle operation and scheduled maintenance. This mixed-year collection combines Mitchell repair information, ALLDATA service sheets, and Ford owner literature rather than one Ford-published workshop manual.

Coverage limits: Most workshop articles address the 2003 Mustang/Cobra, with selected 2002–04 applications and dedicated 2004 Cobra engine material. Match each article’s heading and configuration to the vehicle. The separate SVT Cobra Owner’s Guide supplement is not included, and the wiring files cover 2000 and 2003 rather than a complete 2004 wiring manual.

PDF Search, Bookmarks, and Diagram Detail

Text search and wiring labels: The PDFs contain searchable text, but many illustrated specification tables and wiring labels are outside the text layer. The Owner’s Guide has embedded chapter bookmarks; the other files do not. Small pin numbers and wire codes in the sampled wiring diagrams are readable when enlarged.

The ZIP contains 96 printable PDFs totaling 4,898 pages. That total includes two blank end pages in the Owner’s Guide, one additional end page in the in-vehicle engine file, and both copies of the identical drive-belt sheet. The porting supplement and recall note are also included in the total.

Cobra Engine Work, Drivetrain Repair, and System Diagnosis

The following highlights are a selection of the contents, rather than a complete contents list. Other covered topics include audio-system fault tracing and exterior-lighting pinpoint tests.

• Engine repair: Step-by-step removal and installation, engine disassembly, cylinder-head service, timing-drive work, camshafts, valvetrain, oiling, and sealing systems.

• Transmission and driveline: T56 internal repair, clutch diagnosis, cable controls, automatic-transmission in-vehicle service, driveshaft repair, and vibration diagnosis.

• Rear axles: Separate solid-axle and Cobra IRS procedures, including differential service, Traction-Lok clutch packs, bearing preload, backlash, and shim selection.

• Brakes and chassis: ABS and traction-control diagnosis, Hydro-Boost testing, disc and parking brakes, steering pressure tests, front suspension, and Cobra IRS service.

• Electrical and engine controls: System wiring diagrams, component locations, starter and charging tests, EEC-V fan-control diagnosis, and selected PCM and EVAP tests.

• HVAC, body, and restraints: Climate-control pinpoint tests, refrigerant service, convertible-top hydraulics, window adjustment, instrument-cluster diagnosis, and SRS information.

The workshop material is suited to technicians and experienced owners who can use scan tools, electrical test equipment, lifting equipment, and the specified service tools; the Owner’s Guide also supports routine owner checks.

Engine Repair and Cooling-System Differences

The 2004 Cobra engine files cover the lower intake and supercharger-related components, valve covers, accessory and crankshaft pulleys, front cover, exhaust manifolds, oil pan, flywheel, seals, and mounts. Disassembly extends to the timing chains and tensioners, oil pump and pickup, pistons, connecting rods, crankshaft, and main bearings.

The timing section identifies the engine as non-free-wheeling: incorrect crankshaft-to-camshaft synchronization can cause valve-to-piston contact. Copper-link alignment figures show the indexed timing positions.

Engine-cooling and supercharger-cooling articles treat the two circuits separately, with leak diagnosis, draining, filling, bleeding, and component replacement. Their application-specific coolant instructions matter when selecting the procedure and materials.

T56, Clutch, and Rear-Axle Setup

The T56 chapter reaches shafts, gears, synchronizers, shift forks and rails, housings, bearings, and seals. Endplay measurement and shim selection accompany reassembly, while the related diagnostic article separates clutch drag, slip, chatter, vibration, hard shifting, and noise.

Axle coverage distinguishes Ford 7.5-inch, solid 8.8-inch, and Cobra 8.8-inch IRS assemblies. Contact-pattern checks, pinion setup, runout, and bearing adjustments help identify which measurements belong to the assembly being repaired.

The collapsible pinion spacer is part of the bearing-preload setup; incorrect reuse or adjustment can damage bearings and gears. The automatic-transmission file concentrates on in-vehicle work and should not be treated as a complete internal-overhaul manual.

Brake, Steering, and Suspension Diagnosis

Brake articles separate four-wheel ABS with and without traction control. Scan-tool communication checks, DTC and active-command tables, warning-lamp diagnosis, bleeding, and Hydro-Boost tests support fault isolation before component replacement.

Steering coverage distinguishes CII and CIII pumps and includes rack, hose, pressure/flow, flushing, vacuum-purging, and steering-effort work. Suspension procedures address the modified MacPherson-strut front end and Cobra IRS hubs, bearings, control arms, toe links, halfshafts, and subframe alignment.

Wiring and Engine-Control Testing

The wiring files distinguish engine and equipment configurations, including separate supercharged-engine circuits. Starting/charging, power distribution, lighting, anti-theft, ABS, SRS, windows, locks, climate control, and convertible-top circuits can be used alongside the component-location references.

The earlier EEC-V cooling-fan article includes KOEO, KOER, continuous-memory, PID, and readiness information, with detailed fan-control relay and CCRM tests. Its stated diagnostic scope is the fan-control system.

The gasoline system/component article includes PCM power and ground checks and EVAP testing. Many sensor entries refer to separate diagnostic articles, so it does not provide every referenced engine-management pinpoint test.

HVAC, Body Systems, and Workshop References

HVAC material covers leak detection, flushing, recovery, evacuation, charging, compressor-related service, heater components, and airflow-control faults. Convertible-top sections add hydraulic diagnosis, bleeding, linkage adjustment, and lift-cylinder and motor replacement.

Body coverage includes instrument-cluster self-tests, glass and regulator adjustment, keyless entry, doors, trim, wipers, audio, and restraints. Matching the symptom charts to the appropriate circuit or mechanism gives these sections practical value beyond a component list.

Representative visual references include timing-chain copper-link alignment figures, T56 exploded views and endplay diagrams, IRS bearing-shim and backlash charts, supercharged-engine wiring diagrams, convertible-top hydraulic test charts, and ABS DTC/active-command tables.

Tool references include transmission tools 100-001, 307-001, and 308-227, subframe support 014-00765, CV-joint tool 205-461, and earlier engine-positioning tools T93P-6256-A, T93P-6256-AH, and T93P-6303-A.

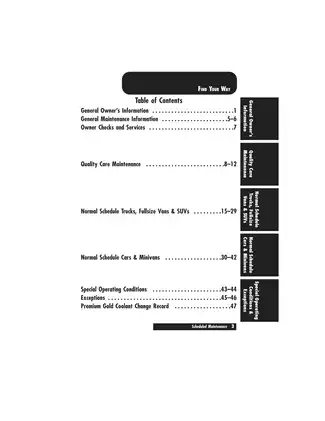

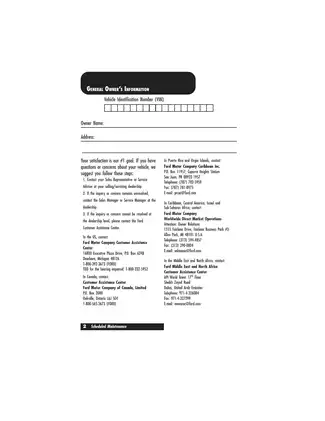

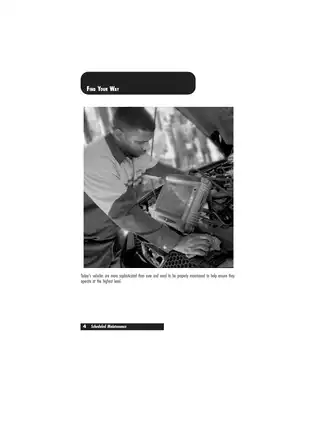

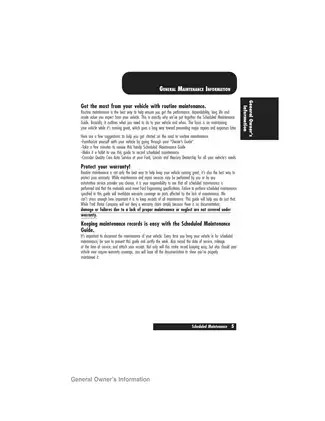

The owner literature covers operation, restraints, towing, roadside procedures, fuses, Motorcraft references, capacities, and lubricants. The maintenance guide is a general Ford/Lincoln/Mercury publication with normal and special operating schedules, owner checks, inspections, and service-record fields. The porting document and recall note are supplemental material rather than Ford workshop chapters.

For under-car, fuel, brake, suspension, A/C, or SRS repair, use properly rated support equipment and follow the system-specific depressurization, electrical-isolation, refrigerant-handling, and restraint-system precautions in the relevant article.

A Preview of Cobra Camshaft and Cylinder-Bore Inspection Data

The 2004 Cobra 4.6L (4V) engine tables list camshaft journal-to-bearing clearance of 0.025–0.076 mm and camshaft endplay of 0.025–0.165 mm. These inspection specifications accompany the engine repair material.

Cylinder-block data include a maximum bore taper of 0.016 mm. The same tables provide piston-ring, crankshaft-journal, and connecting-rod-bearing measurements for evaluating the internal components.
