Mercedes-Benz M-Class ML 320, ML 430, ML 55 AMG 2001 Operator's Manual (P/N 163 584 28 83)

317 Pages • Printable PDF • 10.40 MB • Download

4.6starstarstarstarstar_half(5)
$6.33 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercedes Models Covered & Key Technical Specifications

Models: M-Class

Sub-models / Variants: ML 320 (163 154; engine 112), ML 430 (163 172; engine 113), ML 55 AMG (163 174; engine 113)

Model Years: 1999–2001 (1999, 2000 2001)


  • Engine configuration: 6 cylinders (ML 320); 8 cylinders (ML 430, ML 55 AMG)

  • Maximum engine output: 215 hp (ML 320); 268 hp (ML 430); 342 hp (ML 55 AMG)

  • Engine oil capacity: 8.0 L (ML 320, ML 430); 7.5 L (ML 55 AMG), including oil filter

  • Fuel type: Premium unleaded gasoline

  • Drive system: All-wheel drive

  • Transmission: 5-speed automatic with LOW RANGE transfer case

Mercedes Manual Features & Selected Content Preview

This Mercedes-Benz M-Class operator's manual covers the ML 320, ML 430, and ML 55 AMG in USA Edition B 2001, P/N 163 584 28 83. It explains factory-installed controls, optional equipment, routine owner checks, and emergency procedures.

PDF Text Search and Included Pages

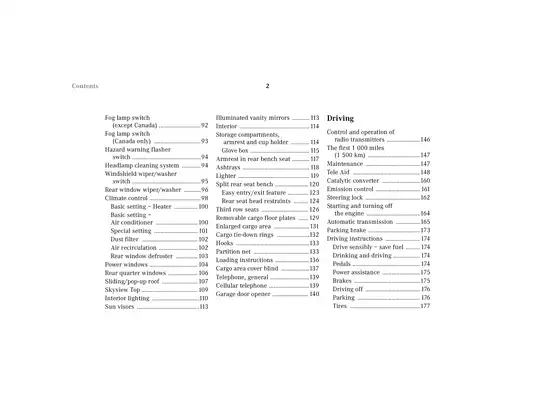

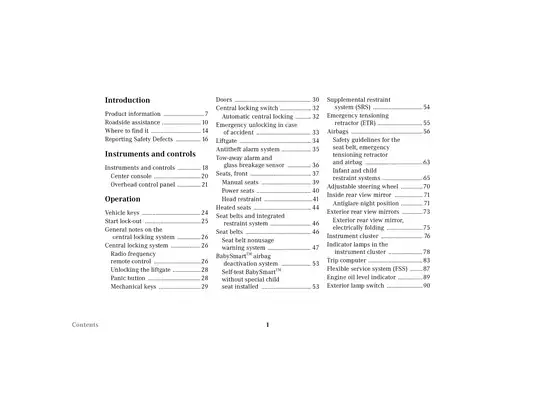

Search and navigation: The manual's text sections are searchable. No embedded PDF bookmarks are included; the printed contents and alphabetical index provide topic references.

One printable 317-page PDF in English includes three unnumbered opening pages, five blank pages, and two closing service and publication-information pages within that total.


Cabin Controls, Driving Systems, and Roadside Procedures

These selected topics outline the manual's coverage rather than reproduce its full contents. Other examples include Tele Aid self-check messages and garage door opener programming.

  • Cabin controls: Instrument cluster, climate control, mirrors, manual and power seats, seat-position memory, and interior lighting operation.

  • Central locking: Remote and mechanical-key operation, antitheft and tow-away alarms, remote battery replacement, and step-by-step remote synchronization instructions.

  • Occupant restraints: Seat belts, emergency tensioning retractors, Supplemental Restraint System (SRS), BabySmart airbag deactivation, and child-restraint installation guidance.

  • Service displays: Flexible Service System (FSS) messages and reset procedure, engine oil level display, dipstick checks, and coolant-level checks.

  • Driving systems: Automatic transmission ranges, Limp home mode, LOW RANGE selection, and the operation of BAS, ABS, 4-ETS+, EBP, and ESP.

  • Roadside assistance: Step-by-step wheel changing, space-saver spare handling, jump-starting, towing precautions, and manual release of the transmission selector lever.

  • Lighting and roof operation: Exterior bulb replacement, headlamp aiming, wiper-blade replacement, and emergency manual operation of the sliding/pop-up roof and Skyview Top.

Written for vehicle owners, the manual explains everyday operation and the owner checks and emergency tasks described above.

Control Behavior Before Electrical Repair

The factory control descriptions provide a baseline before electrical diagnosis. For example, the seat heaters and rear window defroster can shut down when available electrical power is insufficient, helping distinguish automatic load management from an apparent switch failure.

The seat section distinguishes manual and power-operated configurations. Memory storing and recalling is identified as optional on the ML 320 and ML 430.

Mechanical-key operation is explained separately from remote central locking: using the key does not operate central locking or arm or disarm the antitheft alarm. The roof sections also explain the timing synchronization required after emergency manual operation.

LOW RANGE and Warning-Lamp Interpretation

The driving chapters explain how LOW RANGE changes ABS, 4-ETS+, and ESP behavior for off-road use. The low-range ABS description covers cyclic front-wheel locking and its effect on steering.

The malfunction sections distinguish normal brake operation from the loss of electronic assistance after a system fault. They also describe low-voltage effects and ESP synchronization after interruption of the battery supply.

LOW RANGE changeover warnings address possible transmission and engine damage when switching conditions are not met. The battery section warns that disconnecting terminals with the engine running can damage the alternator and other electronic components.

Review the manual's high-clearance handling warnings before road testing, and allow the pressurized cooling system to cool before opening it.

Practical Illustrations and Maintenance Scope

Visual references include the poly-V-belt drive layout, North and South American compass zone maps, engine-compartment and passenger-footwell fuse-box views, and the headlamp aiming illustration.

Fuse instructions refer to the charts inside the vehicle's fuse-box covers. Road-tire inflation guidance refers to the pressure label inside the fuel filler flap.

This is an operator's manual rather than a workshop repair manual. It documents FSS operation and resetting, while the detailed scheduled maintenance work is assigned to the separate Service Booklet. SRS work is referred to an authorized Mercedes-Benz Light Truck Center; Xenon lamp work is recommended for a qualified technician.

Selected Wheel-Change Specifications

The wheel-change section specifies a wheel-bolt tightening torque of 110 ft-lb (150 Nm). The temporary space-saver spare is limited to 50 mph (80 km/h).

For the ML 55 AMG, the spare-tire inflation procedure specifies 61 psi (4.2 bar). Its storage instructions require the space-saver tire to be deflated in its holder to preserve the rear crumple zone.
