Kawasaki Jet Ski Xi Sport JH750-G1 1998–1999 Service Manual (P/N 99924-1222-01)

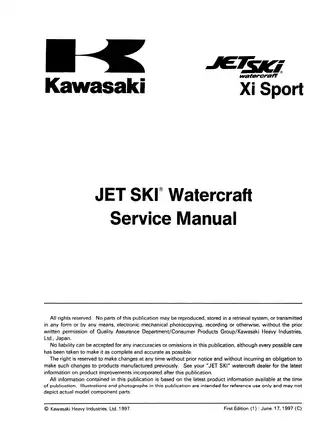

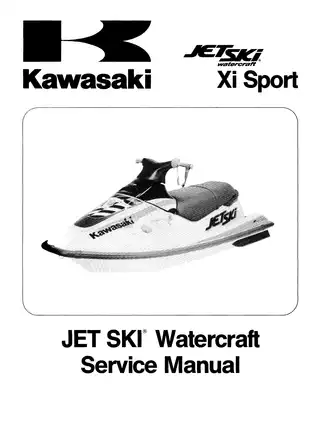

Kawasaki’s factory service manual for the 1998 Jet Ski Xi Sport JH750-G1, P/N 99924-1222-01, First Edition dated June 17, 1997, covers maintenance, diagnosis, and mechanical repair.

Printable PDF and Wiring Diagram Detail

Search, navigation, and diagram detail: PDF text search and embedded bookmarks are not available. Small wire-color codes in the main electrical and warning-system wiring diagrams require zooming.

The ZIP download contains one printable, English-language PDF with 191 pages total. This includes an additional cover image (1 page), front matter (7 pages), the rear cover/model-application page (1 page), and nine other blank pages.

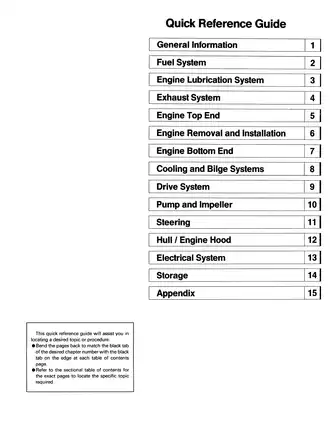

Engine, Jet-Pump and Electrical Service

The selected topics below outline the repair coverage. Further sections include the Periodic Maintenance Chart and procedures for storage preparation and return to service.

• Fuel and oil injection: Twin Keihin carburetor synchronization, idle and mixture adjustment, high-altitude correction, internal carburetor service, reed-valve inspection, and oil-pump bleeding and output testing.

• Engine repair: Step-by-step top-end disassembly and assembly, compression testing, cylinder and piston inspection, boring and honing, engine removal, crankcase splitting, and crankshaft checks.

• Exhaust and cooling: Exhaust-pipe, expansion-chamber, manifold, and water-box muffler service, plus cooling and bilge flushing, hose inspection, and blockage checks.

• Drive shaft and jet pump: Drive-shaft holder overhaul and alignment, pump removal and reassembly, bearing and seal service, and impeller and pump-case wear inspection.

• Steering and hull: Steering-cable adjustment and replacement, handlebar and steering-shaft service, hull-replacement preparation, and hatch, bumper, seal, and mat work.

• Electrical diagnosis: Wiring diagrams support starter, charging, digital magneto CDI, switch, and sensor testing, including LED fuel-gauge and warning-unit checks.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners with basic mechanical knowledge undertaking basic maintenance and repair; work beyond their experience calls for qualified mechanics.

Carburetors, Fuel Delivery and Oil Injection

The Fuel System Diagram and Cable, Wire and Hose Routing views show hose connections and cable paths. Procedures also cover throttle and choke cables, flame-arrester cleaning, intake-manifold and reed-valve inspection, sediment-bowl service, fuel-tank and filler work, filter screens, vent check-valve testing, and fuel-tap cleaning.

Fuel-pump limit: The diaphragm fuel-pump unit is replaced if leakage or internal damage is suspected; the manual specifically excludes disassembling it. Oil-injection coverage includes pump removal and installation, oil-tank cleaning, and filter cleaning.

The carburetor mixture screws were individually flow-metered at the factory. The adjustment section warns that forcing them against their seats can damage the screws or carburetor, while an excessively lean high-speed setting can damage the engine.

Top-End Repair and Crankshaft Inspection

Top-end inspection covers cylinder-head warp, cylinder wear, piston diameter and clearance, ring condition, ring grooves, and end gaps. Assembly notes explain piston and ring orientation; they also caution against forcing the cylinder block over the rings and reusing piston-pin snap rings, which can come loose and score the cylinder wall.

Bottom-end work: Engine-bed fit and shim selection accompany engine installation. Internal service covers coupling and flywheel removal, stator work, the water-drain valve, crankcase sealing, connecting-rod bend and twist, big-end clearances, main bearings, and crankshaft runout.

Crankshaft assembly specifications are included, but crankshaft disassembly procedures are not. Damaged assemblies are replaced or rebuilt by a properly equipped shop. Tool references include rotor puller 57001-1258 and rotor holder 57001-1368.

Exhaust, Cooling and Bilge Service

Exhaust instructions address joint disassembly, gasket and sealant orientation, carbon and corrosion inspection, manifold water-passage cleaning, and water-box muffler leak and heat-damage checks.

Cooling and bilge coverage includes breathers, filters, hose and clamp selection, and a flow-direction illustration. The cooling and steering sections warn that incorrect flushing or laying the craft on its left side can allow exhaust-system water to enter and damage the engine.

Propulsion, Steering and Hull Fittings

The axial-flow, single-stage jet-pump sections include exploded assembly views, shaft and impeller clearances, coupling alignment, and drive-shaft runout checks. Impeller-clearance diagnosis helps distinguish pump wear from engine-related causes of poor propulsion.

Special-tool references identify impeller wrench 57001-1228 and drive-shaft holder 57001-1327 with adapter 57001-1231.

Steering coverage extends to nozzle centering, cable connections, bushings, and steering-shaft installation. Hull instructions give a component-removal order for hull replacement and address hatch fittings, handrails, air ducts, stabilizers, bumpers, adhesive-mounted seals, and mats.

Electrical Tests and Workshop References

The Electrical System Wiring Diagram and Warning/Indicator Lights System Wiring Diagram accompany battery-condition and test-charging charts, starter-relay tests, starter-motor overhaul, and reduction-gear inspection.

Charging diagnosis covers coil output and resistance, the regulator/rectifier, and the DC-DC converter. Ignition testing includes pickup and ignition coils, spark-plug inspection, and CDI resistance tables specifying Kawasaki Hand Tester 57001-1394.

The LED section explains the self-check, oil and fuel indications, temperature-sensor testing, and the overheat warning’s intermittent ignition cutback. Electric-case service and start/stop switch checks are also covered.

Torque and locking-agent tables, exploded views, wear limits, sealant notes, and electrical test data support assembly and inspection. Symptom-based troubleshooting charts help separate fuel, ignition, compression, and jet-pump causes of starting trouble, uneven running, and poor performance.

Fuel, battery, and live electrical work involve gasoline vapors, corrosive electrolyte, and high voltage; follow the manual’s safety instructions and use suitable workshop equipment.

A Preview of Carburetor and Piston Fit Data

Carburetor inspection specifies a float-arm level of 1.0–2.0 mm, measured from the plastic tip of the float arm to the carburetor case.

Top-end data lists a standard piston-to-cylinder clearance of 0.095–0.115 mm. For both top and second piston rings, the standard end gap is 0.25–0.40 mm, with a 0.70 mm service limit.
