Mercury 175XR2 Sport Jet 1997–2000 Service Manual (P/N 90-852396R1)

207 Pages • 1 Printable PDF (English) • Download

5.0starstarstarstarstar(1)
$15.90 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercury Models Covered & Key Technical Specifications

Model: Mercury 175XR2 Sport Jet

Model Years: 1997–2000 (1997, 1998, 1999, 2000)

Serial Numbers: Powerhead: 0E203000 and up, Pump Unit: 0E151580 and up


  • Engine displacement: 153.0 cu. in. (2507 cc)

  • Engine type: V-6 cylinder, two cycle, loop charged

  • Horsepower: 175 (130.5 kW)

  • Cylinder bore: 3.501 in. (88.925 mm)

  • Stroke: 2.650 in. (67.31 mm)

  • Idle RPM: 1000–1100 RPM

  • WOT RPM range: 5000–5500 RPM

  • Fuel pressure @ idle: 2 PSI

  • Fuel pressure @ WOT: 8 PSI

  • Ignition type: Capacitor Discharge (CDI)

  • Spark plug type: NGK BU8H

  • Alternator output: 12 Amperes @ 3000 RPM

Mercury Manual Features & Selected Content Preview

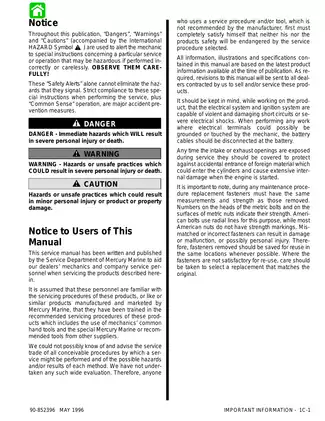

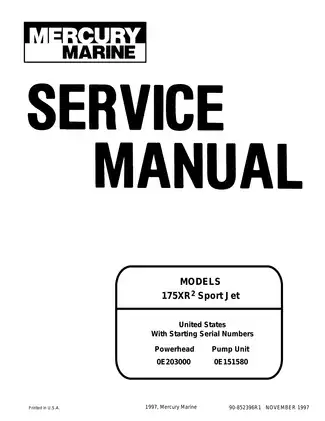

This Mercury Marine service manual (P/N 90-852396R1, November 1997 edition) covers the 1997–2000 Mercury 175XR2 Sport Jet powerhead and jet pump. U.S. coverage begins at powerhead serial 0E203000 and pump-unit serial 0E151580.

PDF Search, Wiring Detail and Included Pages

Search and diagram navigation: Text searches work across the service chapters, but most lettering within the main engine wiring diagram is not searchable. Embedded bookmarks link only to the opening pages. Small wire-color abbreviations and connector numbers in that diagram require zooming for comfortable reading.

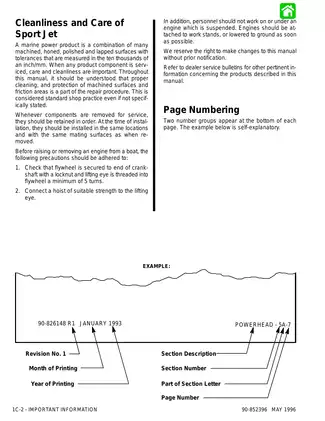

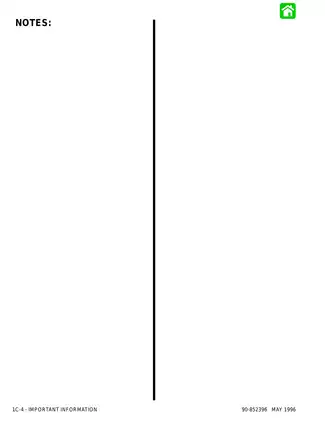

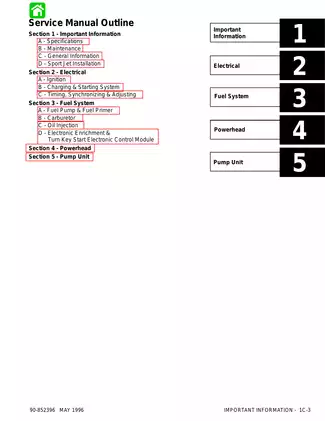

One printable, English-language 207-page PDF contains 202 manual pages, the cover, and four duplicated introductory pages. Section dividers and notes pages are included in those totals.


Powerhead, Jet Pump and Engine-System Service

These selected service topics provide an overview of the contents. Additional subjects include corrosion protection and pre-delivery inspection.

  • Powerhead repair: Step-by-step procedures for removal, crankcase disassembly and reassembly, plus cylinder honing and inspection of pistons, bearings, and reed blocks.

  • Ignition and starting: CDI fault tracing, timing adjustments, stator and trigger checks, charging-system diagnosis, and starter-motor overhaul.

  • Fuel delivery and carburetors: Diaphragm-pump repair, electric fuel-primer operation, carburetor removal and installation, float-level adjustment, and synchronization.

  • Oil injection and TKS: Pump bleeding, carburetor/oil-pump synchronization, delivery testing, warning-system troubleshooting, and enrichment-valve checks.

  • Jet pump service: Drive-housing teardown, impeller and wear-ring replacement, pinion shimming, backlash measurement, and steering/reverse-gate adjustment.

  • Maintenance and installation: Cooling-system flushing, compression and water-pressure testing, treatment after submersion, seasonal storage, and installation of the powerhead and pump.

Written for Mercury dealer mechanics and company service personnel, the manual assumes training in Mercury servicing procedures and familiarity with the required shop tools.

CDI, Starting and TKS Diagnosis

The Ignition System Test Chart gives coil-primary, stop-circuit, stator low- and high-speed, and switch-box bias test data. Its accompanying diagnostic sequence helps distinguish ignition-circuit faults from fuel-system or mechanical problems.

The Starter Circuit Troubleshooting Flow Chart follows no-crank faults through the controls and wiring. Charging diagnosis addresses low output and overcharging; starter overhaul includes brush inspection and armature testing.

Ignition-coil resistance data accompany trigger checks and replacement instructions for the stator assembly and trigger plate. Multimeter/DVA Tester 91-99750A1 is specified because resistance measurements alone cannot thoroughly evaluate the coils and switch boxes.

Cranking with ungrounded switch boxes can damage them—a specific risk identified in the ignition-test cautions.

TKS scope: The Turn-Key Start ECM coverage explains cold-start enrichment, timing advance, warning-horn operation, and over-rev protection. Enrichment-valve and engine-temperature-sensor tests are provided; the ECM itself has no dedicated troubleshooting procedure, with suspect-module isolation and replacement described instead.

Fuel-system servicing and high-voltage ignition tests involve fire and shock hazards. Review the manufacturer's safety instructions before undertaking this work.

WMV Carburetors and Oil Injection

Fuel-pump troubleshooting distinguishes air entering the supply line from insufficient delivery by the crankcase-pressure-operated diaphragm pump. Anti-siphon valve restrictions are addressed as a possible cause of poor fuel flow.

Carburetor identification: WMV-9-1, WMV-9-2, and WMV-9-3 correspond to the top, center, and bottom positions. Carburetor Placement and Jet Location for Each Cylinder drawings clarify the cross-bank fuel supply, helping avoid port/starboard errors when identifying jets.

Carburetor Fuel Circuits drawings trace float-bowl, idle, off-idle, main, and back-draft operation. The Jet Orifice Size/Part Number Chart links jet sizes with their replacement-part references.

Oil-system diagnosis: Coverage follows the remote tank, engine-mounted reservoir, pump drive, and motion sensor. Warning-system checks distinguish low oil, pump-drive failure, and sensor faults; the Oil Pump Volume (Flow) Test supplies a separate delivery check.

V-6 Powerhead Overhaul

Internal inspection covers crankshaft and connecting-rod condition, standard and oversize piston measurements, and half-keystone piston-ring combinations. Bleed Line Routing views identify hoses and check valves, while exhaust-manifold and adapter-plate procedures extend the reassembly coverage.

Residual honing abrasive can rapidly wear replacement rings, cylinder walls, and bearings. The overhaul instructions include inspection limits, clearances, and component tightening sequences, supported by standard, metric, and pump-specific torque tables.

Jet Pump Repair and Hull Installation

Pinion and impeller shafts, bearings, seals, and color-coded shims receive internal service coverage. The shimming section identifies which component replacements require renewed pinion-position and backlash checks.

Specified equipment includes Jet Pump Tool Kit 91-809957A1 and Impeller Shaft Pre-Load Kit 91-824871A2.

Exploded views identify drive-housing and nozzle/rudder components. Tunnel Dimensions drawings support hull-cutout, mounting-grommet, and ride-plate requirements; installation instructions also address steering-cable fine adjustment, reverse-gate alignment, trim-plate adjustment, and the automatic bilge siphon.

Sample Piston-Ring and Temperature-Sensor Specifications

The piston-installation section specifies a new ring end gap of 0.018–0.025 in. (0.45–0.64 mm), checked with each ring positioned 1/2 in. (12.7 mm) into its intended cylinder.

For TKS enrichment diagnosis, the engine-temperature-sensor chart specifies 1,250 ohms at a block temperature of 68°F (20°C), with ±10% tolerance. The chart supplies resistance references across the temperature range.
