2002–2007 Mercury/Mariner 40/50/60 HP EFI FourStroke Outboard Service Manual (P/N 90-883065)

Mercury Marine service manual P/N 90-883065, dated April 2001, covers 2002–2007 Mercury/Mariner 40, 50, and 60 HP EFI FourStroke outboards starting at serial number 0T409000, including Non-Bigfoot and Bigfoot configurations.

• Powerhead repair: Powerhead removal, cylinder-head overhaul, crankcase disassembly, piston and bearing inspection, timing-belt replacement, and valve-clearance adjustment.

• EFI service: Mechanical fuel-pump tests, vapor-separator overhaul, pressure-regulator checks, injector removal, and sensor replacement procedures.

• Electrical diagnosis: Ignition-coil testing, charging-system checks, starter-circuit troubleshooting, and starter-motor disassembly and repair.

• Lower-unit service: Separate Non-Bigfoot and Bigfoot procedures for water pumps, bearing carriers, pinion location, and forward-gear backlash.

• Trim and tilt: Power Trim hydraulic and electrical troubleshooting, Manual Tilt Assist service, seal placement, reassembly, and bleeding procedures.

• Controls and rigging: Tiller-handle overhaul, throttle/shift linkage adjustment, SmartCraft connections, and single- and dual-outboard wiring layouts.

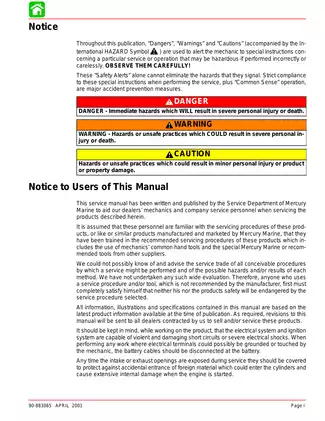

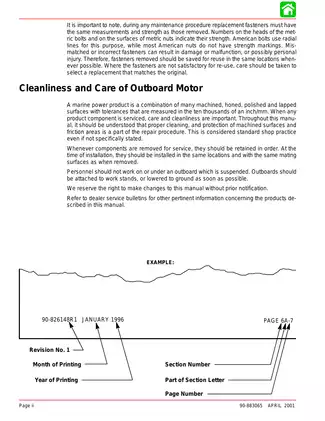

Mercury wrote this manual for dealer mechanics and company service personnel already trained in outboard service and the use of standard and specialized shop tools.

Powerhead Overhaul and Maintenance

Maintenance schedules cover oil and filter changes, cooling-system flushing, corrosion checks, and winter storage. Internal engine repair extends to valve-guide replacement, valve-seat reconditioning, cylinder-bore inspection, and color-coded selection of main and connecting-rod bearings.

Compression and cylinder-leakage tests support mechanical diagnosis. Thermostat inspection and oil-pressure-switch testing accompany the cooling and lubrication specifications. Torque tables, tightening sequences, wear limits, and fluid capacities are documented throughout.

Timing-belt illustrations identify gear alignment marks and belt orientation. The oil-pump overhaul section warns that twisting the pump during removal or installation can cut its sealing O-rings.

EFI, Sensor Tests and Guardian Diagnosis

The fuel-system chapters detail the Vapor Separator Tank (VST), fuel cooler, fuel distribution manifold, and Idle Air Control (IAC) valve. Fuel-pump disassembly includes diaphragm and check-valve inspection. The valve-cover removal instructions flag fuel-pump fittings that can break when hoses are pulled or twisted.

ECM and DDT: The Digital Diagnostic Terminal (DDT, P/N 91-823686A2) monitors Electronic Control Module (ECM) data and fault history. Cylinder-misfire and output-load tests help distinguish a problem at one injector or ignition coil from faults affecting the whole engine.

Troubleshooting tables address no-start, stalling, poor idle, and reduced-power conditions. Checks cover the Manifold Absolute Pressure (MAP) and Throttle Position Sensor (TPS), while resistance charts cover Engine Coolant Temperature (ECT) and Manifold Air Temperature (MAT) sensors. Guardian Protection System tables explain warning-horn patterns and power reduction.

Adjustment limits: Ignition timing and idle speed are ECM-controlled; the TPS is also non-adjustable. The manual documents verification and diagnostic checks for these functions.

Ignition, Charging and Starter Repair

Ignition testing covers the Crank Position Sensor (CPS), coils, and high-tension leads. Charging checks include the stator, suppression diode, and regulator/rectifier. Starter coverage extends to armature tests, brush replacement, and reassembly, supported by a Starting Circuit Troubleshooting Flow Chart and a full-size Brush Retainer Tool Layout.

Exploded views identify ignition-coil mounting parts, starter components, and fuel-filter assemblies. Fuel-system and ignition work must follow the manual's precautions for pressurized gasoline and high-voltage testing.

Non-Bigfoot and Bigfoot Lower Units

Separate gear-housing chapters document disassembly, bearing-carrier and propeller-shaft service, seal installation, and water-pump repair. Each provides its own pinion-location and forward-gear backlash setup, with the required gauging tools. Quicksilver service-tool and lubricant lists identify the recommended tools, sealants, and fluids.

Gear-housing pressure tests address leakage after reassembly. Propeller information charts distinguish the two configurations and list propeller dimensions, materials, and part numbers alongside boat-load and performance guidance.

Power Trim and Manual Tilt Assist

Power Trim Flow Diagrams show the up, down, tilt, and shock circuits. Hydraulic troubleshooting charts address leak-down and failure to hold position; electrical tables separate switch, relay, wiring, and motor faults.

Manual Tilt Assist has its own valve-block, accumulator, filling, and bleeding coverage. The power-trim motor and nitrogen-charged tilt accumulator are tested and replaced as assemblies.

Control Linkage and Wiring References

Tiller-handle procedures cover cable routing, pulley assembly, and throttle adjustment. Rigging diagrams show SmartCraft gauge connections and dual-outboard instrument/lanyard-stop wiring. Separate Fuel Flow, Oil Flow, and Water Flow Diagrams trace the engine's supply and circulation paths.

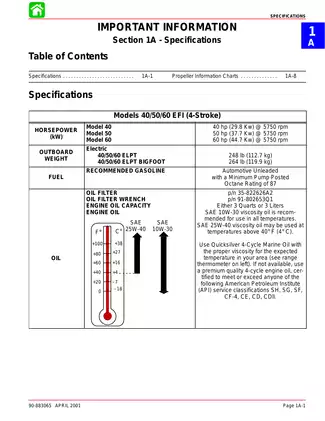

A Preview of Powerhead and Electrical Specifications

These examples are a small selection of the manual's mechanical and electrical reference data.

For electric-start models, peak cylinder compression is listed at 180–210 psi with a cold engine at wide-open throttle. Cold intake-valve clearance is 0.006–0.010 in. (0.15–0.25 mm).

The electrical specifications use a reference temperature of 68°F (20°C). Stator resistance is 0.20–0.30 ohms between the yellow leads; typical TPS output is 0.39–1.00 V at idle and 3.66–4.80 V at wide-open throttle (6000 rpm), providing reference readings for sensor diagnosis.

Searchable Text, Bookmarks and Color Diagram Pages

Finding text and reading diagrams: Searchable text and embedded PDF bookmarks provide chapter and subsection navigation. The large-format color wiring diagrams have separate component legends; small ECM pin numbers require zooming.

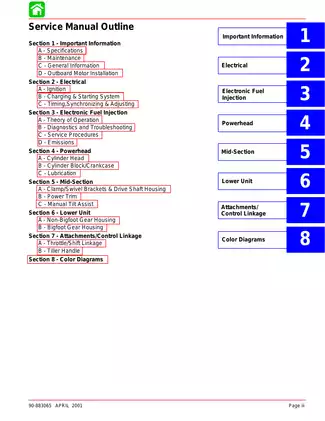

The download is one printable, English-language 590-page PDF: one cover page, three introductory pages, 566 pages in Sections 1–7, and 20 pages in Section 8, Color Diagrams. All notes pages and diagram legends are already included in this total.
