Mercury 90–300 HP Outboard Service & Repair Manual (1965–1989)
632 Pages • Printable PDF • 49.08 MB • Download
Mercury Models Covered & Key Technical Specifications
Models: 90 HP, 95 HP, 100 HP, 110 HP, 115 HP, 125 HP, 135 HP, 140 HP, 150 HP, 155 HP, 175 HP, 200 HP, 225 HP, 250 HP, 275 HP, 300 HP
Models & Model Codes:
850XS — 850XS (four-cylinder)
900 / 90 — 900, 900E, 900EL, 900ELPT, 90 (L6)
950 — 950, 950E, 950SS (L6)
1000 — 1000, 1000E, 1000SS (E, EL, ELS variants), 1000BP, 1000 Super BP (L6)
1100 — 1100, 1100E, 1100SS (L6)
1150 / 115 — 1150, 1150E, 1150EL, 1150ELPT, 1150XLPT, 115 (L6)
1250 — 1250, 1250SS (E, EL, ELS variants), 1250BP, 1250 Super BP (L6)
1350 / 135 — 1350, 1350E, 1350EL (L6); 135 (V6)
1400 / 140 — 1400, 1400E, 1400EL, 1400ELPT, 140 (L6)
1500 / 150 — 1500, 1500E, 1500EL, 1500ELPT (L6); 1500, 1500ELPT, 1500XLPT, 150, 150XR2, 150XR4 (V6)
1500XS — 1500XS (155 HP, L6)
1750 / 175 — 1750, 1750ELPT, 1750EXPT, 1750XLPT, 175 (V6)
2000 / 200 — 2000, 2000ELPT, 2000XLPT, 200, 200 XRi, 220 XRi (V6)
225 — 225 (V6)
250 — 250 (V6)
275 / 3.4 Litre — 275, 3.4 Litre (V6)
300 — 300 (V6)
Sub-models / Variants: L6, V6 60-degree, V6 74-degree / 3.4 Litre; Cam-Shift Type I lower units for early L6 and V6 applications; Cam-Shift Type II lower units for late L6 and 150XR4 applications; E-Z Shift lower units.
Trade Names: Autoblend, Thunderbolt, Commander, E-Z Shift
Model Years: 1965–1989 (1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985, 1986, 1987, 1988, 1989)
Serial Numbers: The following references distinguish particular timing procedures, carburetor configurations, cylinder finishes, wiring diagrams, and specification-table entries.
Timing: Model 1150 — 3761035; Model 1500 — 3628318–3752840. The appendix further separates Model 1500 timing references into 3628318–3751849, 3751850–3752839, and 3752840 & higher.
V6 timing: Models 1500 / 150 — 5203428 and below; Models 150 / 150XR2 / 150XR4 — 5203429 and above. The earlier Model 150 with WH9 carburetors uses the later timing procedure.
V6 timing: Models 2000 / 200 — 5363917 and below; Model 200 — 5363918–6073191 or 6073192 & higher; Model 175 — 6618751 & higher; Model 135 timing-section reference — A907777 & higher. Model 200 / 225 primary-pickup references distinguish 6537932 and below from 6537933 and above, with a separate WH28 carburetor condition.
Carburetor references: Model 200 jet locations — 6055032 and below or 6055033 and above; Model 115 L6 jet chart — below 5050763 or 5050763 & above; Model 140 L6 jet chart — below 5327663 or 5327663 & above.
Cylinder-finish references: Model 175 — 6618750 and below for hardened-steel cylinder sleeves; 6618751 & higher for chrome-finished bores.
Wiring diagrams: V6 models — 4301235–5129480; V6 Models 150 / 175 / 200 — 5129481–5363918, 5363919–5464484, or 5464485–C100860; Model 225 — 5615282 & higher. Separate diagrams cover Models 135 / 150 / 175 and Model 200 without EFI at C100861 & higher.
Specification-table starting serials, listed individually:
900E — 1755444; 900EL / 900ELPT — 4854301; Model 90 — 5160324, 5594657, 5996390, 6246856, 6436123, 6623151, A902436.
950E / 950SS — 1869776; 950SS — 2097280; 1000E — 1755459; 1000SS E / ELS variants — 2318586; 1000SS E / EL variants — 2484633; 1100E / 1100SS — 1870204; 1100SS — 2097385; 1250SS E / ELS variants — 2314956; 1250SS E / EL variants — 2536210.
1150E / 1150EL — 2836019, 3023086, 3270480; 1150EL / 1150ELPT — 3761035, 4310785, 4567952; 1150EL — 4112635; 1150ELPT — 4115160; 1150EL / 1150ELPT / 1150XLPT — 4855153.
Model 115 — 5168574, 5600967, 6006834, 6262961, 6440183, 6630171, A907777; 1350E / 1350EL — 2839369, 3036066; Model 135 — A909997; 1400E / 1400EL — 3293234; 1400EL / 1400ELPT — 4865678; Model 140 — 5189788, 5625108.
1500E / 1500EL / 1500ELPT — 3752620; 1500E — 4125985; 1500EL — 4123985; 1500ELPT — 4121435; 1500EL / 1500ELPT and 1500XS — 4319880, 4602012; V6 1500ELPT / 1500XLPT — 4868998.
Model 150 — 5129480, 5503247, 5944791, 6220254, 6443213, 6616991, A904646; 150XR2 — 6616991, A905191.
1750ELPT — 4301235; 1750ELPT / 1750EXPT — 4563802; 1750ELPT / 1750XLPT — 4838074; Model 175 — 5180109, 5488752, 6618751, A918329.
2000ELPT / 2000XLPT — 4839034; Model 200 — 5158929, 5464486, 6073192, 6203991, 6435503, 6625221, A913228; Model 225 — 5615282; Model 300 — 6239853; 3.4 Litre — 6436883, A129445, A912426.
- Fuel pressure: 2 psi minimum at full throttle (carbureted fuel-pump test, measured at the upper carburetor).
Mercury Manual Features & Selected Content Preview
This Mercury outboard service and repair manual covers the listed 90–300 HP models across 1965–1989, including L6, V6, XR2/XR4, XRi EFI, and 3.4 Litre configurations. Model-specific procedures and serial-number references distinguish the applicable systems.
PDF Search, Bookmarks, and Wiring Detail
Search and diagram access: Most chapter text supports OCR text search, but many wiring labels and some table entries are not searchable. Two embedded bookmarks lead to mid-chapter locations rather than a chapter index. Small wiring labels require zooming, and some diagram pages need rotation.

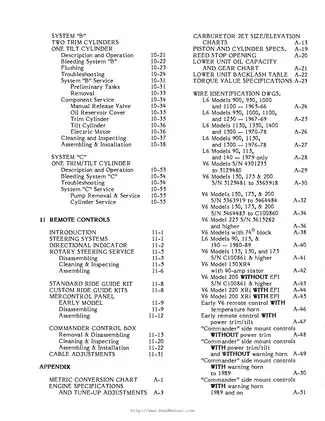

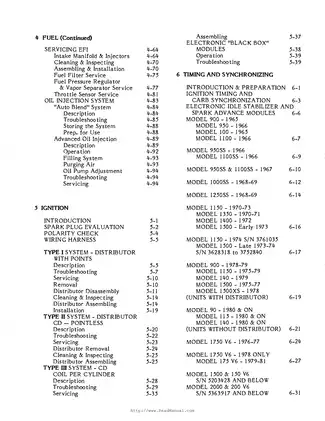

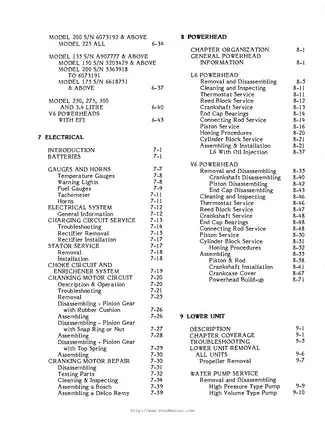

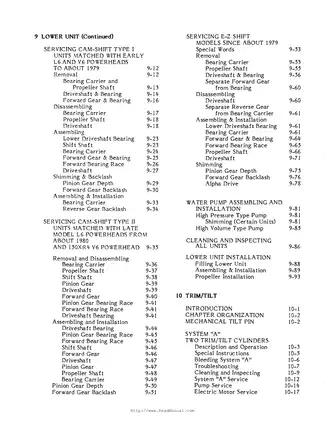

One printable, English-language PDF contains 632 pages: six contents pages, 556 chapter pages, a 69-page appendix, and a one-page Engine Finder. These reference and navigation pages are included in the total.
Outboard Tuning, Powerhead Repair, and Gearcase Service
The following highlights are selected examples of the manual’s contents, rather than a complete table of contents. Other topics include corrosion control and propeller selection.
-
Fuel and oil injection: Carburetor A/B/C overhaul, fuel-pump testing, EFI fault tracing and component service, Auto Blend diagnosis, and advanced oil-injection adjustment and bleeding.
-
Ignition and timing: Type I points, Type II distributor CD, and Type III coil-per-cylinder CD diagnosis, with model-specific timing, synchronization, and electronic-module checks.
-
Electrical repair: Charging-circuit diagnosis, stator and rectifier service, cranking-circuit tests, starter overhaul, gauges, warning horns, and choke/enricher circuits.
-
Powerhead overhaul: Step-by-step L6 and V6 removal, disassembly, internal inspection, piston and crankshaft service, reassembly, and installation procedures.
-
Lower-unit service: Cam-Shift Type I, Cam-Shift Type II, and E-Z Shift repair, including water pumps, bearing carriers, pinion-depth setup, shimming, and gear backlash.
-
Power trim and tilt: Systems A, B, and C troubleshooting, hydraulic bleeding, pump and motor service, cylinder repair, and configuration-specific wiring diagrams.
-
Steering and controls: Rotary steering, Ride Guide kits, early MerControl panels, Commander control-box repair, and shift/throttle cable adjustment.
The manual is suited to experienced owners and marine mechanics comfortable with two-stroke diagnosis and precision measurement; its EFI section recommends a certified marine mechanic for testing suspected electronic-component faults.
Maintenance and Procedure Selection
Tuning and maintenance coverage includes compression and spark evaluation, fuel-system checks, starter and harness testing, cooling and lower-unit inspection, serial-number identification, submerged-engine service, and storage.
Timing sections distinguish distributor-equipped L6 engines from later distributorless units and divide V6 procedures by model and serial range. Appendix cross-references connect ignition type, carburetor family, firing order, and timing notes, helping identify the applicable procedure before repair work begins.
Coverage limits: The Engine Finder’s main model coverage ends in 1989. Selected appendix specifications and control/trim wiring sheets carry later labels; these do not establish general 1990-up engine coverage.
Carburetors, EFI, and Oil Injection
The carburetor sections distinguish Type A side-bowl/back-drag units, Type B dual-float center-bowl units for 60-degree V6 powerheads, and Type C center-square-bowl units for 3.4 Litre and 250/275/300 applications. Exploded views accompany cleaning, inspection, bench adjustment, and installation coverage.
Jet-size/elevation charts support configuration selection. Troubleshooting addresses restrictions, air leaks, primer-bulb problems, diaphragm faults, rough idle, surge, and excessive fuel consumption. Carburetors and jets can differ by top, center, bottom, port, and starboard position, so their original locations matter.
XRi EFI: Coverage describes the indirect multi-port system used on the 200 XRi and 220 XRi Lazer. Its component layout identifies the ECU, five sensor inputs, six injectors, mechanical and electric booster pumps, filters, vapor separator, pressure regulator, and injector rail.
Service sections address injector wiring, the intake manifold, filters, regulator, vapor separator, and throttle-position sensor calibration. The electric booster pump is a sealed replacement unit. A misaligned throttle-position sensor can alter ECU signals, EFI operation, and ignition timing.
Auto Blend and advanced oil-injection sections cover warning circuits, storage preparation, filling, air purging, oil-pump adjustment, troubleshooting, and component service.
Ignition, Charging, and Starting
Ignition diagnosis includes spark-plug evaluation, polarity and harness checks, switch-box tests, idle-stabilizer and spark-advance modules, and model-specific synchronization.
Starter coverage distinguishes Bosch, Delco Remy, and heavy-duty Prestolite configurations. Electrical reference drawings include the 150XR4 stator installation and separate 200/220 XRi EFI wiring, alongside charging and cranking-circuit test information.
L6 and V6 Internal Engine Work
Chapter 8 extends from powerhead removal to thermostat and reed-block service, crankshaft and end-cap bearings, connecting rods, pistons, cylinder measurement, final assembly, and installation. Tool references include flywheel puller 91-48501A1 and crankshaft protector 91-24161.
Cylinder-finish differences: Hardened-steel sleeves and chrome-finished bores receive different inspection and cleaning treatment. The chrome-bore sections exclude reboring and routine honing; the model tables identify the affected configurations.
Striking a stuck flywheel can loosen the lower seal, damage the lower bearing, or harm the crankshaft. Improper prying during crankcase-cover removal can damage the sealing surfaces.
Four-cylinder scope: The 850XS/90 HP four-cylinder appears in the Engine Finder, while the complete internal powerhead overhaul chapter covers L6 and V6 assemblies.
Gearcases, Water Pumps, and Backlash
Cam-Shift Type I covers early L6/V6 applications; Type II addresses late L6 units and the 150XR4. E-Z Shift sections include separate Alpha-drive details.
Mechanism drawings support work on the propeller shaft, driveshaft, shift shaft, gears, bearings, and races. High-pressure and high-volume water pumps receive separate treatment, while shimming procedures distinguish driveshaft designs and their preload arrangements.
Trim/Tilt Hydraulics and Remote Controls
System A has two trim/tilt cylinders, System B has two trim cylinders and one tilt cylinder, and System C has one combined cylinder. Their sections distinguish bleeding, flushing where applicable, fault isolation, manual-release valves, pumps, motors, and cylinder reassembly.
Corresponding wiring sheets separate the hydraulic/electrical configurations. Control coverage extends to rotary steering, standard and custom Ride Guide kits, early MerControl panels, Commander mechanisms, and cable setup.
Review the manual’s safety material before service: pressurized EFI leaks can spray fuel over the powerhead, and opening a manual-release valve can allow a raised outboard to drop rapidly.
Sample Reed Inspection Clearances
The reed inspection data lists a reed-to-block clearance of 0.007 in. (0.18 mm) for L6 powerheads and 0.020 in. (0.51 mm) for V6 powerheads. Separate reed-stop opening tables distinguish configurations with stops from later 60-degree designs that omit them.
