1990–2000 Mercury Mariner 2.5–275 HP 2-Stroke Outboard Service Manual (P/N 90-879365)

This maintenance and repair manual covers 1990–2000 Mercury and Mariner 2-stroke outboards from 2.5 to 275 HP, with model-specific sections for carbureted, EFI and OptiMax DFI configurations, plus jet-drive units.

• Tune-up and maintenance: Compression testing, ignition timing and carburetor synchronization, idle adjustments, winter storage and spring commissioning checklists.

• Fuel systems: Carburetor overhaul, EFI fuel-injector testing, fuel-pressure diagnosis, vapor separator service, and OptiMax air-compressor and sensor procedures.

• Ignition and electrical: Magneto and CDI diagnosis, switch box and stator/alternator testing, starter circuit checks, and model-specific wiring diagrams.

• Cooling and oil injection: Water-pump and thermostat service, oil-system bleeding and pump checks, plus overheat and OptiMax warning-system diagnosis.

• Powerhead repair: Removal and reinstallation, reed valve inspection, cylinder, piston and crankshaft inspection, and powerhead reconditioning specifications.

• Lower unit and jet drive: Propeller-shaft inspection, lower-unit removal and installation, jet-drive disassembly and reassembly, and impeller shimming.

• Trim, controls and starting: Single-ram and three-ram trim/tilt service, hydraulic bleeding, remote-control and tiller adjustments, and hand rewind starter repair.

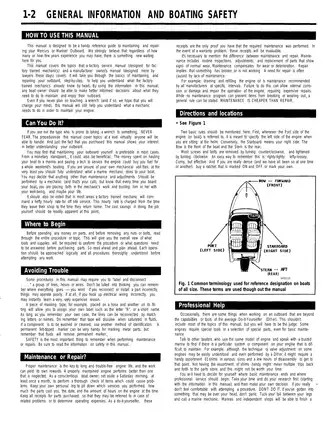

Written for owners who want to maintain their outboard or understand its repairs, the manual also identifies work that calls for specialized diagnostic equipment or professional machining.

Timing, Fuel Injection and Electrical Diagnosis

Timing and synchronization procedures vary by model. Ignition timing on the 2.5, 3 and 3.3 HP models is nonadjustable; the Tune-Up Specifications chart provides model-specific idle speed, WOT RPM and timing data.

OptiMax diagnosis covers ECM fault history, cylinder misfire testing and injector output tests using the Digital Diagnostic Terminal (DDT). Without a DDT or equivalent tester, electronic diagnosis is limited to basic checks, including resistance tests on certain sensors.

Wiring coverage distinguishes manual and electric starting, remote and tiller controls, and red versus black stators. These distinctions help identify the appropriate circuit before tracing an ignition, charging or stop-switch fault.

Powerhead Reconditioning and Cooling

The powerhead chapter includes exploded views, torque sequence diagrams, Engine Torque Specifications and Engine Rebuilding Specifications charts. Inspection coverage extends to cylinder bores, piston rings, connecting rods, crankshafts and bearings.

For 20 and 25 HP models, the rebuilding table distinguishes chrome bores through serial 0G202749 from Mercosil blocks starting at 0G202750. This distinction matters when planning machine work: the chrome bores are not suitable for reboring, while the Mercosil entries include an oversize repair allowance.

The cylinder block and crankcase halves are machined as a matched pair. The manual warns that altering their mating faces can change the bearing bores and prevent the crankcase from sealing properly.

Separate OptiMax water flow diagrams show the cylinder-block, adapter-plate, compressor and fuel-rail cooling paths. Water-pump coverage distinguishes the propeller-shaft-mounted pump on the smallest models from driveshaft-mounted designs.

Lower Units, Trim and Controls

The jet-drive shimming procedure addresses clearance between the jet impeller and intake-housing cone. For lower-unit installation, the manual warns that lubricant trapped above the driveshaft splines can prevent proper engagement and damage the powerhead or lower unit.

Some gear-oil capacity entries differ between the maintenance Capacities chart and the Lower Unit Specifications chart.

Trim coverage separates manual tilt, gas assist, and single-ram and three-ram hydraulic systems. The three-ram hydraulic pump is non-serviceable; the manual describes replacement. Power-trim wiring diagrams show both relay and solenoid arrangements.

Remote-control sections include cable adjustment and neutral-start, lanyard-stop and ignition-switch testing. Hand rewind starter procedures cover rope, spring, sheave and pawl service for the listed model groups.

Note on shop safety: Observe the manual’s hoisting and ventilation precautions when handling heavy engine assemblies and combustible fluids.

Examples of Sensor and Jet-Drive Clearances

These clearances are a small selection of the adjustment data provided in the manual.

For the 115, 135 and 150 HP OptiMax models, the crankshaft position sensor air gap is specified at 0.025–0.040 in.

The jet-drive shimming section specifies approximately 1/32 in. (0.8 mm) between the impeller’s outer edge and the intake-housing cone wall.

PDF Search, Bookmarks and Page Count

Text search and diagram navigation: Most manual text is searchable through OCR; four torque and rebuilding-table pages are not. Page and topic bookmarks are included, with some generic labels. Dense wiring diagrams require zooming, and the smallest connector and wire labels can remain soft.

Supplied as one printable, English-language, 405-page PDF. The total includes 402 manual pages, two supplemental notice pages and one blank page.
