Mercury Mariner 2.5–250 HP 2-Stroke Outboard Repair Manual 2001–2005

This Seloc aftermarket repair manual covers 2001–2005 Mercury and equivalent Mariner 2.5–250 HP two-stroke outboards. Its model-specific repair chapters cover carbureted, EFI, and OptiMax DFI engines rather than FourStroke models; it is not a Mercury factory service publication.

PDF Navigation and Wiring Detail

Search and diagram readability: PDF text search is not available. Ten embedded bookmarks provide access to the main chapters. Small wiring labels require zooming, and some fine wire-color markings remain soft at higher magnification.

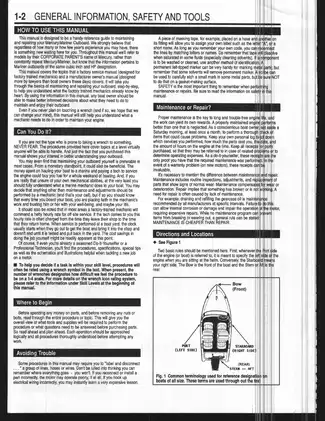

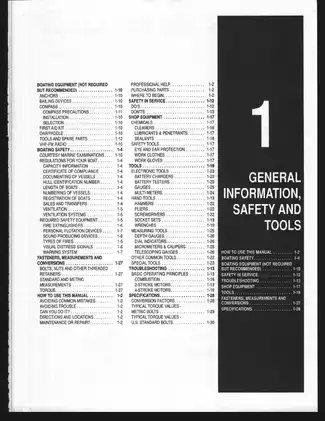

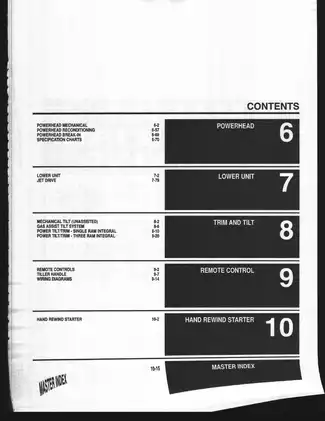

One printable English PDF contains 622 pages, including two general contents pages and two unnumbered safety and skill-level pages.

Outboard Tune-Up, Fuel Diagnosis, and Rebuilding

These selected topics illustrate the manual’s coverage rather than reproduce its complete contents list. Recovery of a submerged motor is also covered.

• Tune-up and maintenance: Cooling-system flushing, lubrication, fuel filters and water separators, drive belts, anodes, propeller and jet-impeller checks, compression and leak testing, storage, recommissioning, timing, and synchronization.

• Fuel and engine management: Carburetor overhaul, EFI vapor separator tank service, pump and sensor tests, plus OptiMax air-compressor, air/fuel rail, injector, regulator, and tracker-valve diagnosis.

• Powerhead and gearcase repair: Step-by-step removal, disassembly, reassembly, and installation procedures, with piston and connecting-rod inspection, cylinder reconditioning guidance, gearcase shimming, backlash checks, and break-in instructions.

• Cooling, oiling, and trim: Water-pump and thermostat service, oil-injection pump testing and bleeding, warning-system diagnosis, and mechanical, gas-assist, single-ram, and three-ram trim/tilt systems.

• Electrical and controls: Ignition, charging, and starter test charts; switch and solenoid service; Commander 2000/3000 and MPC 4000 control coverage; wiring and SmartCraft rigging diagrams.

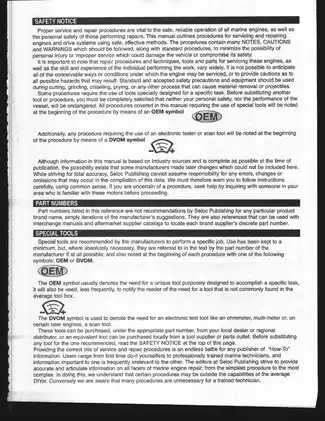

Seloc addresses first-time DIYers through professional technicians and rates procedures by four wrench-based skill levels, reserving machine work, internal engine work, and gearcase rebuilding for highly skilled technicians with previous experience.

Match the Mercury or Mariner Configuration

Seloc uses Mercury model names throughout but states that the information also applies to Mariner outboards with the same displacement and horsepower designation. Configurations span one- through four-cylinder and V6 engines, Jet and Bigfoot drives, and standard-rotation and counter-rotation gearcases.

The broad 2001–2005 span does not put every horsepower family in every model year. The carburetor table limits 10 and 55 hp to 2001, 30 hp to 2001–2002, and 6, 20/20 Jet, and 40 hp twin-cylinder models to 2001–2003. Coverage for the 75/90/115 hp 1.5L OptiMax family begins in 2004.

Separate procedures address 2001 versus 2002–2005 2.5L and 3.0L EFI layouts, plus 2001–2002 and 2003–2005 3.0L OptiMax systems with mechanical or Digital Throttle and Shift controls. These configuration splits help you select the appropriate maintenance, diagnostic, and rebuilding references for the engine being serviced.

Engine-ID illustrations show the powerhead and swivel-bracket tags used to match model year, horsepower, displacement, and cylinder layout.

EFI and OptiMax Diagnostic Requirements

EFI and OptiMax coverage includes ECM self-diagnostics, vapor separator tank overhaul, pressure regulators, position and temperature sensors, MAP sensors, electric fuel pumps, injectors, direct injectors, and fuel/air pressure testing.

Checks without a scan tool are included, but OptiMax fault-code access and several ECM-controlled tests require a Mercury Digital Diagnostic Terminal (DDT) or equivalent. Discussed functions include fault history, cylinder-misfire and injector output tests, oil-pump priming, and break-in oil reset. Pressure-testing tool references include 91-852087A1/A2/A3.

EFI and OptiMax fuel work requires system depressurization and battery isolation because a damaged high-pressure line can release an atomized, readily ignitable fuel spray.

Powerhead Reconditioning and Gearcase Setup

Powerhead inspection: Rebuilding references cover cylinder condition, piston and bearing clearances, and component-specific torque specifications. Chrome and Mercosil bore types require different reconditioning decisions; the chrome bores identified in the specifications cannot be rebored or efficiently honed.

Connecting rods, caps, bearings, and pistons must remain matched and correctly oriented; mixing or reversing a rod cap can cause bearing failure. Flywheel tool callouts include Puller 91-73687A1 and Crankshaft Protector 91-24161.

Lower-unit differences: The chapter separates non-shifting and forward-neutral small gearcases from standard and Bigfoot forward-neutral-reverse units, counter-rotating V6 drives, and jet pumps. Detailed work includes bearing-carrier removal, seal replacement, pinion-depth measurement, forward and reverse backlash, shimming, shift and gate adjustment, and final checks.

Backlash Indicator Rod 91-78473 and Bearing Preload Tool 91-14311A1 are specified for applicable gearcases. On units with two upper driveshaft bearings, changing the wrong bearing-cup shims alters pinion depth and can compromise gear alignment.

Electrical Drawings and Reference Tables

Named visuals include the 2001 150/175 hp 2.5L V6 EFI wiring diagram and the 2003–2005 200/225 hp 3.0L OptiMax Digital Throttle and Shift wiring diagram. Other examples are the 75–115 hp 1.5L OptiMax cooling-system schematic, 2.5L OptiMax air-compressor exploded view, standard-rotation lower-unit cutaway, and Commander 2000 key-switch continuity chart.

The wiring section represents popular model and option combinations rather than every possible rigging configuration. Reference tables cover maintenance intervals, carburetor setup, spark-plug heat ranges, EFI adjustments, electrical tests, cooling specifications, inspection limits, standard and metric torque data, and gearcase capacities.

Beyond engine repair, the manual covers battery testing and storage, fiberglass-hull inspection and care, fastener and measurement guidance, boating safety, and hand-rewind starter service.

A Preview of OptiMax Sensor Specifications

For the 75/90/115 hp 1.5L OptiMax engines, the fuel-injection adjustment table lists a crankshaft-position-sensor air gap of 0.025–0.040 in. (0.635–1.010 mm).

For those same engines, throttle-position-sensor output is listed as 0.14–1.05 V at idle and 3.76–4.64 V at wide-open throttle, alongside the manual’s sensor-testing material.
