Kawasaki KZ13001979–1983 Factory Service Manual OEM

• Coverage and document identity: 371-page PDF reproducing the Kawasaki Heavy Industries KZ1300 Motorcycle Service Manual, Fifth Edition (9), dated September 12, 1991, with coverage for the KZ1300-A1, A2, B2, A3, A4, and A5.
• Model-year repair structure: Uses the 1979 A1 material as the base, followed by cumulative 1980, 1981, 1982, and 1983 supplements. The B2 pages isolate its touring-body and chassis differences while directing other service work to the A2 procedures.
• Engine repair procedures: Covers carburetor synchronization and fuel-level work, valve-clearance service, camshaft and timing-chain work, cylinder-head and cylinder-block removal, piston service, oil-pump and clutch repair, cooling-system service, and water-pump mechanical-seal replacement.
• Engine-out and drivetrain work: Details engine removal, crankcase splitting, transmission shaft service, crankshaft and connecting-rod inspection, primary and secondary chain work, bevel-gear backlash and tooth-contact checks, and engine-side shim adjustment.
• Chassis and shaft-drive service: Includes wheels and tubeless tires, front and rear disc brakes, steering stem, pneumatic front fork, rear shock absorbers, swingarm, propeller shaft, final gear case, bearing preload, and chassis-side shim adjustment.
• Electrical diagnosis: Provides charging-, ignition-, starter-, lighting-, automatic turn-signal canceling-, gauge-, and oil-pressure/level-warning tests, plus model-specific wiring diagrams and troubleshooting flowcharts.

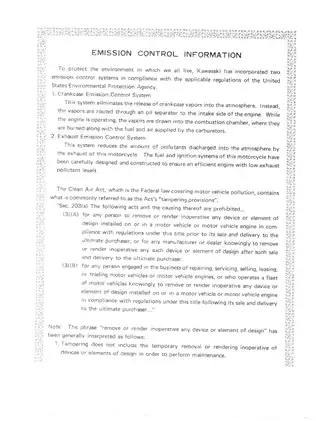

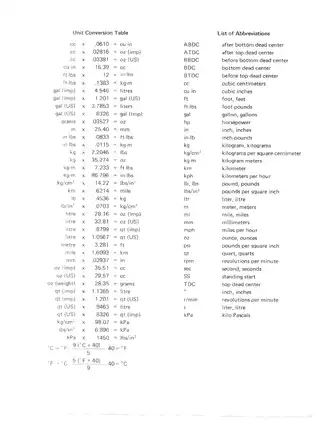

• Factory reference data: Supplies component torque tables, wear and inspection limits, clearances, fluid and lubrication specifications, carburetor data, electrical test values, and Kawasaki special-tool callouts with part numbers.

Built for professional technicians, independent repair shops, and experienced DIY owners, this factory publication documents the 1,286 cc DOHC six-cylinder, four-stroke, water-cooled engine, its three Mikuni BSW32 carburetors, five-speed constant-mesh transmission, wet multi-disc clutch, and shaft final drive. Its workshop layout separates adjustments, work performed with the engine installed, full engine-out disassembly, component inspection, chassis repair, electrical diagnosis, troubleshooting, and appendix data.

Coverage and Workshop Scope

The base service information is written for the 1979 KZ1300-A1. Later machines are handled through supplements for the 1980 KZ1300-A2 and KZ1300-B2, 1981 KZ1300-A3, 1982 KZ1300-A4, and 1983 KZ1300-A5. Kawasaki's supplement instructions matter: repair information for a later model is cumulative, so the applicable year section must be read together with earlier changes and the front portion of the manual.

The 1980 supplement gives the B2 its own coverage where the touring equipment changes the job. It includes fairing removal, saddlebags and tail trunk, B2 rear-wheel and rear-caliper work, the headlight unit, turn-signal assemblies, wheel information, disc-brake notes, rear-shock data, and a separate B2 wiring diagram. Unless a B2 exception is stated, the manual directs the mechanic back to the A2 procedure. That distinction helps when selecting parts and planning a repair on a fully dressed B2.

Engine, Chassis, and Electrical Detail

The in-frame engine section covers the carburetors, cooling system, pickup and timing-advance components, camshaft-chain tensioner, water pump, cylinder head, camshafts, cylinder block, pistons, starter clutch, shift mechanism, oil pump, clutch, alternator, oil filter, and relief valve. The engine-out section continues with crankcase splitting, drive, driven, and output shafts, transmission assembly, crankshaft and rods, chain drives, cam damper, and the shim calculations used for bevel-gear contact and internal clearances.

Chassis repair includes wheel and brake disassembly, tubeless-tire service information, steering and fork work, rear suspension, swingarm, propeller shaft, and final-drive teardown. The final gear case receives detailed treatment of bearing preload, backlash, tooth-contact patterns, seal and bearing installation, and shim selection rather than a simple replacement procedure.

Electrical coverage changes with the production year. The 1981 supplement explains the Hall-effect pickup system, IC igniter, and electronic timing advance, then adds an oil-pressure/level-warning troubleshooting guide with individual circuit tests. The 1982 material covers its revised pickup-coil ignition, higher-output charging system, and the additional sub-alternator used on U.S. and Canadian models. The 1983 section adds the revised driven-shaft arrangement, suspension updates, solenoid-fuel-valve simulation testing, and the A5 wiring diagram.

Diagrams, Tools, and Repair Cautions

Useful visual references include the engine and chassis disassembly flow charts, oil-pressure/level-warning troubleshooting chart, 1981 ignition-system block diagram, 1982 charging-system schematic with sub-alternator, final-drive bevel-gear tooth-contact drawings, and model-specific A1, A2, B2, A3, A4, and A5 wiring diagrams. Exploded assembly views support the carburetor, clutch, transmission, cooling, brake, suspension, and final-drive sections.

The special-tools appendix identifies the equipment the procedures were written around. Examples include the 57001-127 vacuum gauge set, 57001-1034 balance adjuster, 57001-164 oil-pressure gauge with 57001-1033 adapter, and 57001-1035 valve lifter holder. The 1980 supplement also calls for fuel-level gauge P/N 57001-1017 because the carburetor drain-plug arrangement changed.

Several warnings show why the factory procedure matters. The valve-clearance section forbids placing shim stock beneath a shim or grinding the shim; either mistake can let it escape or fracture at engine speed and cause major damage. A paint-locked screw on the carburetor diaphragm cover sets spring preload, and turning it can upset carburetor operation. During final-drive repair, the manual warns against prying between the wheel coupling and gear-case cover and specifies the oil-seal direction and needle-bearing oil-hole alignment.

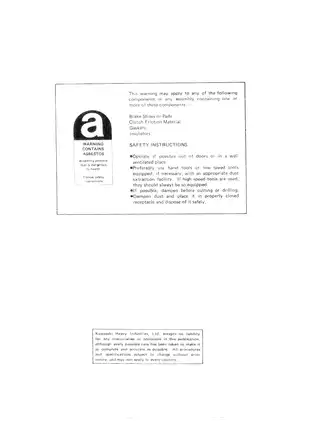

Use calibrated torque and measuring tools, support the motorcycle and engine securely, and follow the manual's cautions for hot coolant, brake and clutch dust, battery service, press work, and pressurized suspension components before beginning repair.
