Honda VF750F V45 Interceptor Parts Catalog, 1983–1984
86 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications
Model: VF750F (engine RC15E)
Sub-models / Variants: V45 Interceptor (area A; VIN positions 4–8: RC150), 750 Interceptor (area A, except California; VIN positions 4–8: RC150), California model (area AC; VIN positions 4–8: RC151)
Model Years: 1983–1984

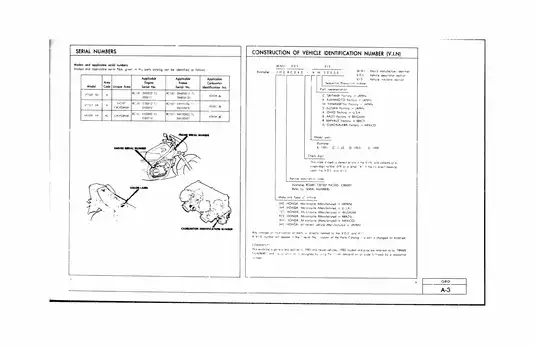

Serial Numbers: RC15E 2000022–2008111, RC15E 2100012–2103474, RC15E 2102802–2103712, RC150 DM000017–DM008120, RC150 EM100006–EM103270, RC151 EM100002–EM100437
Engine Parts Application Limits:
-
Crankshaft bearing selection: RC15E through 2001586 / from 2001587.
-
Clutch pressure plate and retaining circlip: RC15E through 2002370 / from 2002371.
-
Neutral-switch rotor: Original part application through RC15E-2003114.
-
Oil pan and oil strainer: RC15E through 2004887 / from 2004888.
-
Teikoku oversize piston-ring sets: Earlier listings through RC15E-2005051.
-
Cylinder block, area A: Earlier listing through RC15E-2103273; revised listing from RC15E-2103274.
-
Countershaft, area A: Earlier listing through RC15E-2103112.
-
Carburetor assemblies: 16100-MB2-671 through RC15E-2000153; 16100-MB2-672 through RC15E-2007711; 16100-MB2-673 from RC15E-2007712.
Frame Parts Application Limits:
-
Main footrests, RC150: Earlier replacement applications through DM003610; later applications from DM003611.
-
Front brake and clutch master cylinders, RC150 area A: Earlier listings through EM100107; clutch-master-cylinder diaphragm plate from EM100108.
-
Electrical panel: RC150 area A through EM102000 / from EM102001; RC151 area AC through EM100205 / from EM100206.
-
Engine: Liquid-cooled, 4-stroke, 4-cylinder, DOHC
-
Displacement: 748 cc
-
Transmission: 5-speed manual
-
Fuel System: Carburetors: VD52A A, VD52A B and VD52A C application identifiers for V45 Interceptor; VD52C A for 750 Interceptor except California; VD05A A for California model
-
Ignition: CDI
-
Tire Size (Front/Rear): 120/80-16 / 130/80-18
-
Fuel Tank Capacity (Standard/Reserve): 5.8 gal / 1.1 gal
-
Valve Clearance (Intake/Exhaust): 0.12 mm (0.005 in)
-
Spark Plug Gap: 0.8–0.9 mm (0.031–0.035 in)
Honda Manual Features & Selected Content Preview

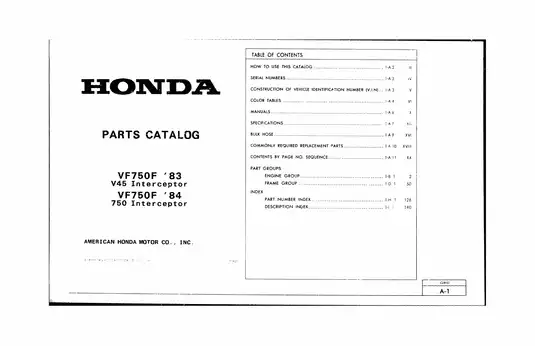

This PDF reproduces the American Honda Motor Co., Inc. parts catalog for the 1983 VF750F V45 Interceptor and 1984 VF750F 750 Interceptor, including the 1984 California version. It provides factory part-number references for replacement-parts ordering and repair planning.
Catalog Navigation and PDF Format
Search, bookmarks and detail: Catalog pages do not support PDF text search. Embedded bookmarks provide access to sections and component groups, although the “Main Index” bookmark requires a separate Index.PDF file that is not included. Small parts-table text requires zooming, and some model-identification photographs are faint.
One printable English PDF contains 86 pages, including one introductory project-information page and 85 catalog pages. The introductory page is already included in the total.
Engine, Chassis and Replacement-Parts Identification
The following selected catalog contents highlight the main assembly groups. Additional sections include instruments and the original onboard tool kit.
-
Engine assemblies: Front and rear cylinder heads, camshaft and valve assemblies, cam-chain tensioners, cylinder block, and oil-pump component breakdowns.
-
Crankshaft and pistons: Bearing-selection charts, color-coded main and connecting-rod bearing listings, and standard and oversize piston and ring options.
-
Clutch and transmission: Internal component identification, with California-specific transmission gears, shift forks, and gearshift-drum assemblies.
-
Carburetors and emissions equipment: Complete assemblies, linkage, floats, vacuum pistons, needles, and jets, plus a separate Canister/Purge Control Valve breakdown.
-
Suspension and brakes: Front-fork internals, rear-shock linkage, swingarm bearings, calipers, and brake and clutch master-cylinder parts.
-
Electrical and cooling components: Wire Harness/Ignition Coil, Water Pipe/Thermostat, and Radiator assembly views, with alternator, starter-motor, and water-pump listings.
It suits mechanics and restorers who can interpret exploded assembly drawings and match application columns to the vehicle’s engine, frame, and carburetor identifiers.
Part Numbers, Production Changes and Ordering

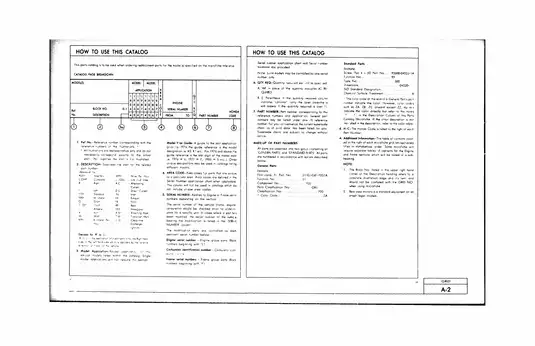

The catalog connects illustration reference numbers to component descriptions, quantities, Honda part numbers, and Honda codes. Model-year and area-code columns distinguish applications, while “From” and “To” entries identify production changes.
Engine and frame applications are tracked separately. Carburetor identification also controls certain component listings, so model year alone does not settle every parts application.
Separate part-number and description indexes support lookup by either identifier. Supersession references reflect the catalog’s publication date. Commonly Required Replacement Parts provides a shorter lookup for filters, cables, brake pads, spark plugs, and gasket kits.
Bearing Selection and Internal Engine Parts
The crankshaft-bearing charts distinguish earlier and later engine applications and provide the associated oil-clearance information. Connecting-rod selection tables and bearing color codes support matching the listed components before ordering parts for an engine repair.
Clutch pressure-plate and retaining-circlip applications also change during production. These component-specific distinctions prevent an exploded drawing alone from being treated as proof that every listed part fits every engine.
California Equipment and Bodywork Colors
California applications have distinct emissions equipment and selected drivetrain components. The Canister/Purge Control Valve plate separates its valves, tubes, joints, and mounting parts from the general fuel-system listings.

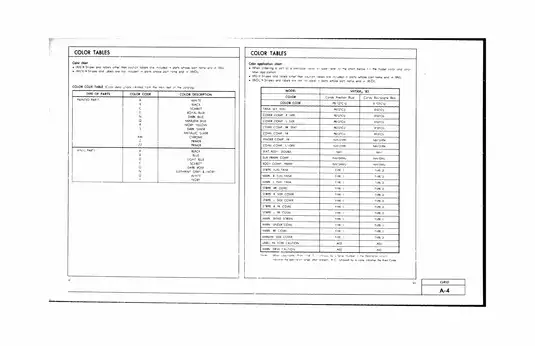

The color tables connect paint codes to fuel tanks, bodywork, frames, and subframes. They distinguish Candy Aleutian Blue (PB-127C-U) and Candy Bourgogne Red (R-107C-U), with model-year applications for stripes and emblems.
WL/WOL designations explain whether stripes and labels accompany a part. Caution labels are ordered separately.
Reference Tables and Catalog Scope
Factory reference tables cover carburetor jetting, valve clearances, tire pressures, drive-chain and sprocket specifications, and fluid types and capacities. Electrical component listings include battery, bulb, and fuse ratings.
The Bulk Hose section cross-references cut fuel and vacuum hoses to bulk replacement stock and explains hose part-number construction. Its material warning is specific: contact with fuel damages vacuum hose, making hose type an important distinction when identifying replacements.
This publication provides parts identification and reference data. It does not include step-by-step diagnostic or repair procedures, electrical wiring schematics, or component torque tables. The separate service manual listed as Manual Number 61MB203 is not included.
Working on vintage motorcycles requires proper tools and expertise. Always prioritize shop safety when handling heavy engine and chassis components.
Selected Fuel-Hose Identification Sizes
The Carburetor (Assy. Link) listing identifies California-model fuel tubes with a 3.5 mm inside diameter and cut lengths of 70 mm and 180 mm. Their part numbers are 95001-35070-40 and 95001-35180-40, respectively.
Both cross-reference bulk fuel hose 95001-35003-40M. These dimensions identify replacement parts; they are not inspection tolerances or service-adjustment values.
