Honda VF700F/VF750F Interceptor Service Manual 1983–1985

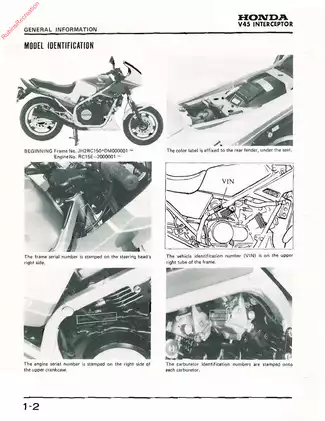

Honda factory service manual for the 1983–1984 VF750F and 1984–1985 VF700F Interceptor. The procedures use the VF750F as the base model, with VF700F differences and California-specific information identified in the text.

PDF Bookmarks, Text Search and Wiring Detail

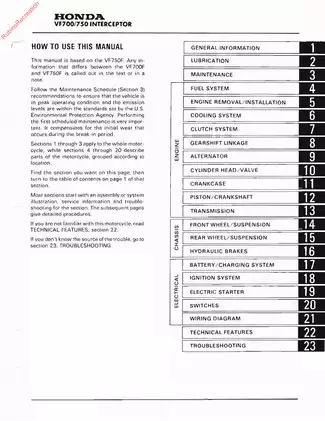

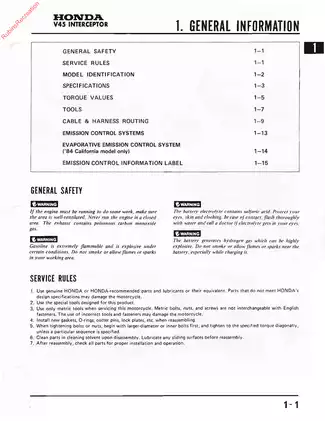

Search and diagram access: Embedded bookmarks provide access to all 23 sections. Text search works across much of the manual, but many early pages are not searchable. The full wiring diagrams span multiple pages; small wire codes require zooming, and some labels remain indistinct.

A single printable, English-language PDF contains 308 pages: one introductory cover page and 307 manual pages, including 10 memo pages.

V-4 Overhaul, Carburetors and Chassis Service

The following selected coverage highlights summarize major workshop areas. Other topics include instrument removal and ignition-switch disassembly.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head disassembly, valve-guide replacement, valve-seat refacing, crankcase separation, and piston and crankshaft service.

• Clutch and transmission: Hydraulic clutch bleeding, master- and slave-cylinder inspection, one-way sprag clutch service, starter-clutch repair, gearshift linkage, and transmission disassembly.

• Fuel system: Keihin VD carburetor overhaul, vacuum-gauge synchronization, pilot-screw adjustment, fuel-pump testing, and California evaporative-emission system checks.

• Cooling and lubrication: Cooling-system pressure tests, thermostat inspection, radiator removal, water-pump replacement, oil-pressure measurement, and oil-pump inspection.

• Suspension and steering: TRAC anti-dive fork service, rear shock oil-seal replacement, suspension-linkage inspection, swingarm bearings, and steering-head bearing adjustment.

• Hydraulic brakes: Front and rear caliper overhaul, master-cylinder inspection, brake-pad replacement, disc measurements, and fluid replacement and bleeding procedures.

• Electrical diagnosis: Charging-system tests, transistorized ignition checks, starter-motor inspection, switch-continuity charts, wiring diagrams, and symptom-based troubleshooting.

Suited to experienced mechanics with appropriate measuring equipment and special tools; Honda recommends dealer-only service for specified maintenance items.

Engine Access, Bearing Selection and Clutch Operation

Planning engine work: The front cylinder head can be removed with the engine installed, while rear-head removal requires engine removal. Internal transmission repairs require crankcase separation; the external gearshift linkage can be serviced in the frame.

Internal inspection: Color-coded bearing-selection tables match crankshaft and connecting-rod codes to replacement inserts. Main-bearing tables distinguish an engine-number change, helping identify the applicable selection data before ordering bearings.

Camshaft inspection includes Plastigauge oil-clearance checks, with notes on keeping the cams stationary during measurement and positioning the longer holder bolts correctly. The installation section warns that forcing a valve open with the camshaft holders can damage the holders or camshaft bearing surfaces.

One-way clutch: The Technical Features section explains the split clutch inner and sprag mechanism. Its Power Flow Diagram distinguishes normal drive from deceleration backload, alongside the clutch inspection and assembly procedures.

Carburetor Differences and California Equipment

The rear No. 1 and No. 3 carburetors use thinner jet needles and shorter springs than the front units. Separate identification and jetting data distinguish the applicable carburetor configurations.

Pilot-screw coverage includes the idle-drop procedure and high-altitude adjustment. The manual warns that overtightening a pilot screw can damage its seat.

California-specific material includes purge-control-valve vacuum and airflow tests and a Vacuum Hose Routing Diagram. These routing references, together with Cable & Harness Routing views, help check hose and wiring placement during reassembly.

Cooling, Suspension and Brake Details

Cooling-system scope: The water-pump section covers inspection and assembly replacement when the mechanical seal leaks. Thermostat testing and radiator-cap pressure checks support diagnosis of overheating and coolant loss.

Chassis variations: Fork illustrations distinguish earlier and later bushings and anti-dive components. Rear suspension instructions also distinguish linkage bushings from needle bearings. Brake sections provide separate front and rear inspection dimensions and service limits.

Electrical Tests and Fault Tracing

The Ignition System Diagram separates the cylinder-pair ignition circuits, while the Battery/Charging System circuit supports alternator and regulator/rectifier checks. Starter diagnosis covers the relay, clutch diode, brushes, commutator, and field coil.

The Engine Does Not Start or Is Hard to Start chart connects fuel delivery, spark, and compression checks to possible causes. Other charts address power loss, low-speed running, high-speed performance, and poor handling.

A Preview of Valve, Compression and Clutch Inspection Data

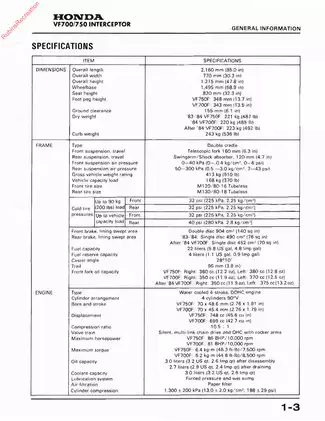

For cold valve-clearance inspection below 35°C (95°F), the maintenance section specifies 0.15 mm for both intake and exhaust valves. Cylinder-compression testing specifies 1,300 ± 200 kPa with the engine warm and throttle fully open.

The clutch master-cylinder inspection lists a standard bore of 14.000–14.043 mm and a 14.06 mm service limit, distinguishing the normal dimension from the replacement threshold.

Use suitable motorcycle support and follow the manual’s precautions for fuel, brake fluid, and pressurized coolant.
