1983-1986 Honda VF1100C V65 Magna Shop Manual

Covers VF1100C, VF1100 V65 with procedures for engine, chassis, and electrical systems. Documents maintenance and troubleshooting. PN C4077-90960

4.5starstarstarstarstar_half(4)
visibility Preview Available

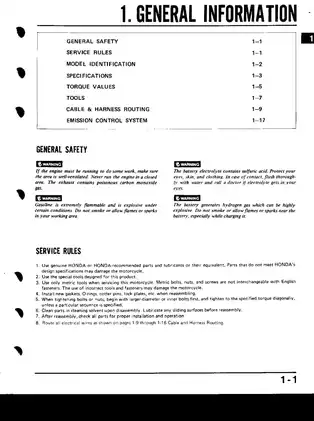

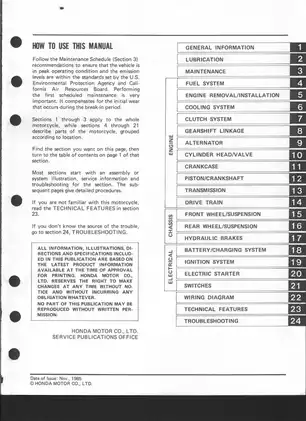

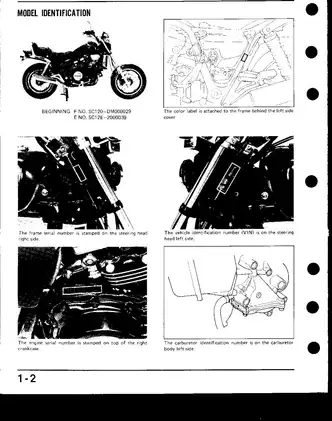

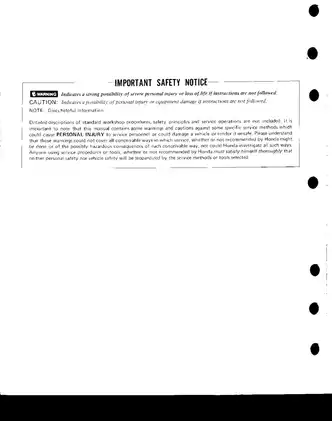

Honda 1983-1986 Honda VF1100C V65 Magna Shop Manual manual page preview - page 1 of

Sample pages from the 1983-1986 Honda VF1100C V65 Magna Shop Manual manual

Honda 1983-1986 Honda VF1100C V65 Magna Shop Manual manual preview page 1 - thumbnail
Honda 1983-1986 Honda VF1100C V65 Magna Shop Manual manual preview page 2 - thumbnail
info_outline Click thumbnails to preview different pages
$17.83 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Honda Models Covered & Key Technical Specifications

Models: Honda VF1100C V65 Magna
Build Years: 1983–1986
Serial Numbers: Beginning F NO. SC120-DM000029, E NO. SC12E-2000039
Technical Data:

  • Engine: Water-cooled 4-stroke, 4-cylinder, 90-degree V-type
  • Displacement: 1,098 cc
  • Bore and Stroke: 79.5 x 55.3 mm
  • Compression Ratio: 10.5:1
  • Horsepower: 116.0 BHP at 9,500 rpm
  • Transmission: 5-speed with overdrive
  • Fuel System: 4-carburetor configuration (CV 36 mm)
  • Dry Weight: 96.7 kg (213.2 lbs)
  • Coolant Capacity: 3.45 liters ('83-'85), 3.2 liters (after '85)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
26447 / Robert Bell
File Size:
91.85 MB
File Type:
ZIP
Language:
English
Printable:
Yes
Category:
Bike
Last updated / verified
Feb 5, 2025

Honda Manual Features & Content Preview

1983–1986 Honda VF1100C V65 Magna Technical Publication

  • Covers 1983–1986 Honda VF1100C V65 Magna motorcycle service specifications for engine, chassis, and cooling systems
  • Official Honda Motor Co., Ltd. shop manual, November 1985 edition
  • Contains 56 high-resolution technical data tables, 40+ system exploded-view illustrations, and 12 detailed wiring and cable-routing schematics
  • Accessible from your device as soon as the order is placed
  • Laid out for standard letter and A4 printing
  • This 1985 edition provides the specific assembly torque values and wear limits for the 1,098 cc 90-degree V4 engine variant

Engine and Chassis Documentation

The 1983–1986 Honda VF1100C V65 Magna shop manual documents all primary service categories including lubrication, fuel system calibration, engine removal, and cooling system maintenance. Detailed text and imagery illustrate the teardown and assembly of components ranging from the multi-plate clutch to the final drive gear assembly. Technical chapters organize information by system, providing clear visual aids for cable and harness routing, carburetor synchronization settings, and throttle operation adjustments. The publication includes specific diagnostic indicators for oil pressure, cylinder compression, and anti-dive damper force, serving as a reliable reference for evaluating overall mechanical health.

Specification Highlights and Reference Values

Cylinder head bolt torque values are documented in a multi-stage sequence, with final-stage settings specified at 48–52 Nm for the 10 mm bolts. Coolant system capacity for the 1983–1986 Honda VF1100C V65 Magna is documented at 3.45 liters for initial models. Intake valve clearance is listed at 0.15 mm in the cylinder head specification table. The manual also provides what an OEM service publication covers regarding electrical system limits, including battery capacity and ignition timing requirements. Reference only — always consult a certified technician before performing service on this equipment.

An official Honda shop manual for the 1983–1986 Honda VF1100C V65 Magna, documenting engine, chassis, and electrical specifications for the V-4 engine platform, including model-specific adjustments for late-production variations.

Manual FAQ, Purchase & Download Details

Which chapters of the manual provide cable and harness routing diagrams for the ignition and electrical systems? keyboard_arrow_down

Manual includes dedicated General Information sections that provide detailed cable and harness routing illustrations for various systems, including the ignition and charging components.

Are specific edition or revision markers included in this Honda VF1100C shop manual? keyboard_arrow_down

Document displays official publication cues, including a November 1985 date of issue. These markers confirm the edition status for the 1983-1986 model range covered in the publication.

Is there a breakdown of parts or exploded views for the engine and clutch assembly? keyboard_arrow_down

Manual contains a series of exploded views and assembly illustrations for engine, transmission, and clutch components. These diagrams show the layout of parts and help reference the structure of the internal systems. Users can navigate to the specific engine removal or clutch system sections to view these detailed illustrations.

What specification tables are listed for tightening torques and clearance references? keyboard_arrow_down

Manual features comprehensive specification tables that list standard torque values, engine clearances, and other technical data required for reference.

Does the document provide coverage details for the engine top end and transmission components? keyboard_arrow_down

Shop manual contains dedicated chapters that cover the cylinder head, valve train, and transmission assemblies. These sections provide organizational structure for the engine and drivetrain systems of the V65 Magna.
