Honda VF1100S V65 Sabre 1984–1985 Service Manual (P/N 61MB301)

This PDF contains Honda Motor Co., Ltd.’s October 1986 factory service manual for the 1984–1985 VF1100S V65 Sabre, P/N 61MB301. Its 24 sections cover scheduled maintenance, subsystem diagnosis, and major engine, drivetrain, chassis, and electrical repair.

PDF Navigation and File Contents

Search, bookmarks, and wiring detail: PDF text search is not available, and there are no embedded PDF bookmarks. The full-machine wiring diagram requires zooming; some small wire-color and connector labels remain soft and difficult to distinguish at higher magnification.

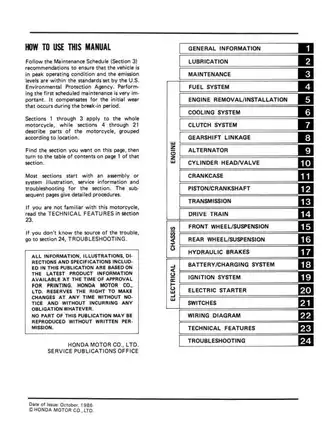

The ZIP download contains one printable English PDF with 355 pages, including four opening safety, publisher, and contents pages, 11 memo pages, and one final blank page.

V4 Engine, Shaft-Drive, and Chassis Service

The following selected coverage highlights summarize the main workshop areas. Other topics include cable and harness routing and headlight aiming.

• Engine and lubrication: Oil-pressure testing, oil-pump service, engine removal and installation, cylinder-head repair, valve-guide and seat work, camshaft timing, and piston/crankshaft inspection.

• Fuel and emissions: Carburetor separation, overhaul, synchronization, pilot-screw adjustment, and California evaporative-emission valve testing.

• Cooling system: Pressure testing, coolant replacement and air bleeding, thermostat inspection, radiator and fan removal, and water-pump replacement.

• Clutch and drivetrain: Hydraulic clutch bleeding, master/slave-cylinder service, clutch and starter-clutch overhaul, internal transmission repair, drive-shaft service, and final-drive adjustment.

• Chassis and brakes: Wheel and bearing service, front-fork and NEW TRAC anti-dive repair, steering-stem work, rear-shock and swingarm service, and hydraulic brake repair.

• Electrical diagnosis: Charging, transistorized ignition, starter, switch, instrument, sensor, fuel-pump, and turn-signal-cancel testing, with circuit illustrations and continuity charts.

Honda identifies qualified professional technicians as the intended users and assumes basic Honda maintenance knowledge, proper tools, and suitable shop equipment. The maintenance schedule also distinguishes owner-serviceable work from items recommended for dealer service only.

Engine Repair and In-Frame Service

The manual distinguishes work possible with the engine installed from repairs requiring removal. The clutch, alternator, gearshift linkage, starter motor, cylinder heads, and carburetors are identified as in-frame service items; piston, crankshaft, connecting-rod, and internal transmission work requires crankcase separation.

Step-by-step procedures extend through cylinder-head disassembly, valve-guide replacement, seat refacing, and front/rear camshaft installation. Lower-end repair includes color-coded select-fit bearing tables and Plastigage clearance checks.

Forcing a valve open while installing the camshaft holders can damage the holders or camshaft bearing surfaces; the camshaft-installation section explains this assembly risk.

Carburetor and Emissions Differences

The fuel chapter distinguishes standard VD71A and California VD74A carburetors. It also identifies the different needle-jet holders and shorter vacuum-piston springs used in No. 1/No. 3 carburetors compared with No. 2/No. 4.

California coverage includes purge-control and air-vent-control valve tests, charcoal-canister connections, and vacuum-hose routing. Pilot-screw idle-drop procedures and U.S. high-altitude adjustment information accompany the overhaul instructions.

Cooling and Drivetrain Repair Limits

Cooling diagnosis separates radiator-cap, thermostat, fan-control, and leakage problems. A leaking water-pump mechanical seal calls for replacement of the pump assembly rather than an internal seal-rebuilding procedure.

The transmission chapter covers matched countershaft/output-driven gear replacement, tooth-contact evaluation, backlash checks, and countershaft shim or spacer selection after relevant component replacement. Final-drive work adds ring-and-pinion contact-pattern and bearing-preload checks.

Clutch illustrations distinguish 1984 and After ’84 master-cylinder arrangements, helping identify the appropriate hydraulic components before repair.

Suspension, Steering, and Brakes

Fork illustrations distinguish the dust-seal, foam-seal, plastic-washer, and slider-bushing arrangements across builds. Rear-suspension instructions cover shock oil-seal replacement, linkage bushings, and swingarm pivot bearings.

During rear-shock repair, pressing the backup ring too far can jam the guide bushing, while omitting the stop ring can allow the shock to separate.

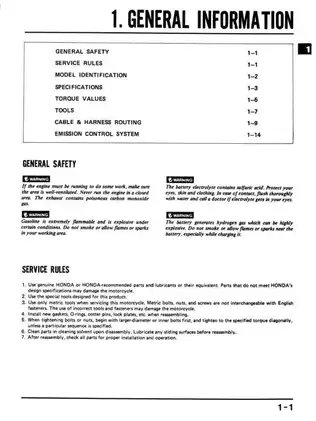

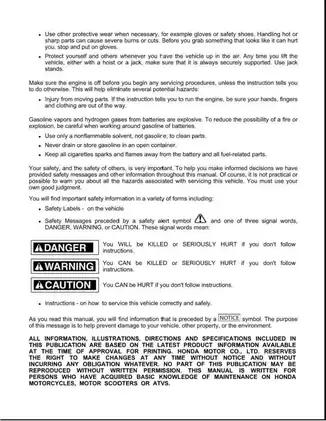

Before beginning chassis or drivetrain repair, review the manual’s safety messages and assembly-specific torque tables. The procedures address safe vehicle support, pressurized cooling and suspension components, hydraulic brake and clutch fluid, gasoline hazards, and battery gases.

Tubeless-tire repair is referred to Honda’s separate Tubeless Tire Manual; scheduled pre-ride inspection refers to the owner’s manual. This publication covers the VF1100S V65 Sabre, rather than combined Sabre/Magna service.

Diagnostic References and Special Tools

Visual references include wiring diagram 0030Z-MB3-6700 with switch continuity charts, the engine oil-routing diagram, carburetor assembly layouts, front/rear cam-timing views, final-drive contact-pattern illustrations, and the NEW TRAC operating section view.

The separate troubleshooting charts connect hard starting, power loss, and poor low-, idle-, or high-speed performance with fuel, ignition, and mechanical checks, helping narrow the system to investigate before disassembly.

Factory tables provide torque values, fluid capacities, pressure-test data, wear limits, bearing selection, and electrical test specifications. Tool references include vacuum gauge 07406-0030000, valve-adjusting wrench 07908-MB00100, steering-stem socket 07916-3710100, pinion holder 07926-ME90000, shaft puller 07931-ME40000, and rear-shock absorber compressor 07959-3290001.

Selected Valve-Clearance and Ignition Data

The maintenance specifications list intake and exhaust valve clearance at 0.15 mm (0.006 in), checked cold below 35°C (95°F).

Ignition reference data specifies 10° BTDC at idle and full advance of 37° BTDC at 3,800 rpm. These values accompany the manual’s timing checks and ignition-system diagnosis.
