2000–2007 Honda VT 1100 C2, Sabre 1100, VT 1100 Service Manual

• Honda factory service publication for the VT1100 C2, issued in February 2000, with separate 49-state/Canada and California fuel-and-emissions configurations; later-model-year supplements are not included in this PDF.
• Documents sub-frame and engine removal, cylinder-head and camshaft teardown, valve-guide and valve-seat service, hydraulic-tappet inspection and adjustment, plus cylinder, piston, and ring work.
• Follows the clutch, primary drive, gearshift linkage, crankcase, crankshaft/connecting rods, five-speed transmission, output gear, and shaft final drive through removal, inspection, reassembly, and adjustment.
• Covers the dual Constant Venturi carburetor system from removal and separation through cleaning, assembly, synchronization, pilot-screw adjustment, high-altitude setup, fuel-pump service, and California EVAP service.
• Details cooling-system testing, oil-pressure checks, wheel and suspension service, steering-stem work, and front/rear hydraulic-brake fluid replacement, bleeding, master-cylinder, caliper, and pedal repair.
• Provides charging, ignition, starter-clutch, switch, meter, and fuel-pump electrical tests, backed by harness routing, vacuum schematics, switch-continuity charts, troubleshooting flowcharts, exploded views, and the complete wiring diagram.

Honda Publication and Exact Coverage

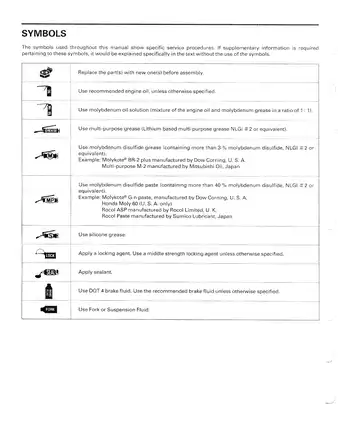

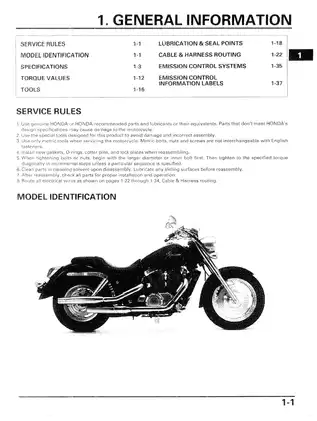

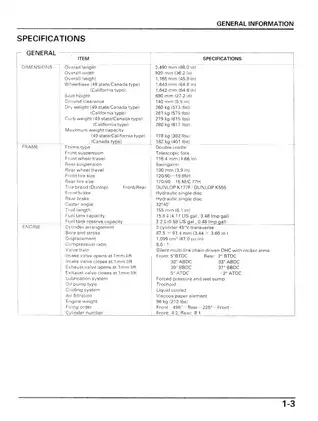

Issued by Honda Motor Co., Ltd., Service Publication Office, this 377-page PDF is arranged in 22 factory sections, beginning with model identification and specifications and continuing through maintenance, engine and chassis repair, electrical diagnosis, troubleshooting, and the index. The opening data identifies the 1,099cc liquid-cooled V-twin, five-speed transmission, shaft final drive, dual 36 mm Constant Venturi carburetors, and hydraulic disc brakes used in the documented configuration.

The fuel-system tables distinguish carburetor identification VDKED for the 49-state/Canada type from VDKEE for the California type. California coverage adds the evaporative-emission canister, EVAP CAV control valve, EVAP purge-control valve, numbered vacuum-hose routing, and related emission-label procedures. The supplied volume ends with the standard index and contains no later-model-year addenda, so its scope is the VT1100 C2 configuration documented in this edition.

Engine, Drivetrain, and Fuel-System Repair

The top-end chapter goes well beyond routine maintenance. It covers compression testing, cylinder-head-cover removal, camshaft and rocker-arm service, hydraulic-tappet bleeding and shim adjustment, cylinder-head disassembly, valve-guide replacement, valve-seat inspection and refacing, and final installation. Cylinder and piston work is divided into removal, inspection, piston-ring installation, piston installation, and cylinder installation. The manual makes the repair depth clear: cylinder-head, cylinder/piston, crankshaft, and transmission work requires engine removal, with the sub-frame procedure documented separately.

Bottom-end and drivetrain sections address clutch removal and installation, clutch outer and lifter components, primary-drive service, gearshift linkage, crankcase separation, connecting-rod and crankshaft inspection, transmission shafts and shift components, output-gear bearing replacement, and crankcase assembly. The shaft-drive chapter adds final-drive removal, ring-gear and pinion service, shim selection, preload and backlash inspection, gear-tooth contact-pattern checks, and final installation.

Fuel-system repair includes carburetor removal, separation, disassembly, cleaning, assembly, combination, installation, synchronization, pilot-screw adjustment, and high-altitude recalibration. The same section covers the air-cleaner housing, electric fuel pump, and California-only evaporative-emission hardware. Maintenance procedures also cover engine oil and filter service, coolant, final-drive oil, brake fluid, brake-pad wear, clutch adjustment, side-stand operation, suspension, wheel and tire inspection, headlight aim, and steering-head bearings.

Chassis, Electrical, Diagrams, and Factory Data

Chassis coverage runs through front and rear wheel service, bearing replacement, wheel balancing, fork disassembly and reassembly, fork-fluid specifications, steering-stem bearings, rear shock absorber, and swingarm service. The hydraulic-brake section handles fluid replacement and air bleeding, pad and disc inspection, front and rear master cylinders, both calipers, and the rear brake pedal.

Electrical diagnosis is organized by system rather than reduced to a single schematic. The charging chapter covers the maintenance-free battery, charging-system flowchart, regulator/rectifier, and alternator. Ignition pages provide ICM, coil, pulse-generator, peak-voltage, and timing checks. Starter coverage includes the motor, relay, clutch diode, flywheel, one-way starter clutch, and torque limiter. Lights, meters, switches, thermosensor, fuel pump, horn, and turn-signal relay receive their own continuity and operating tests.

Representative illustrations include the engine-removal layout, crankshaft/transmission exploded assemblies, final-drive gear-contact drawings, cable-and-harness routing pages, the California vacuum-hose and EVAP schematics, and the complete wiring diagram 0030Z-MCK-A000 with connector and switch-continuity references.

Each major section supplies the related torque tables, fluid capacities, pressure-test data, wear limits, clearances, adjustment specifications, and electrical test values. Honda special-tool references include oil-pressure gauge 07506-3000000 with attachment 07510-4220100, flywheel holder 07725-0040000, rotor puller 07733-0020001, and peak-voltage adapter 07HGJ-0020100.

Several manual-specific repair cautions are worth noting. Cleaning carburetor passages with wire can damage the carburetor body, while compressed air can damage diaphragms left in place. Incorrectly located crankshaft bearing inserts can block oil passages and lead to oil starvation and seizure. The final-drive ring and pinion are treated as a matched set, and improper clamping or skipped contact-pattern adjustment can damage the case or leave the gears incorrectly meshed.

This publication is written for technicians and owners with established motorcycle-service knowledge. Engine removal, brake-hydraulic work, battery service, and hot or pressurized cooling-system repair require secure support, electrical isolation, suitable lifting and holding equipment, and the specified service tools.
