Honda VF750C/S & VF700C/S V45 Sabre/Magna Service Manual, 1982–1985 (P/N 61MB004)
413 Pages • ZIP Download: Printable PDF • 335.93 MB
Honda Models Covered & Key Technical Specifications
Models: VF750C, VF750S, VF700C, VF700S
Sub-models / Variants: V45 Sabre (VF750S, VF700S), V45 Magna (VF750C, VF700C)
Trade Names: Sabre, Magna, V45
Model Years: 1982–1985 (1982, 1983, 1984, 1985)

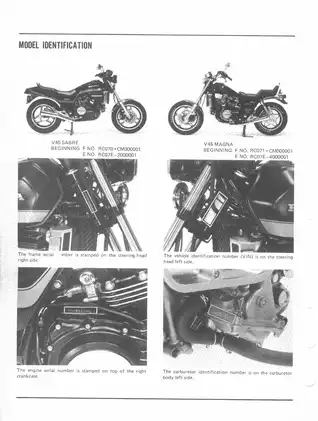

Serial Numbers: Base-manual beginning numbers — VF750S: frame RC070*CM000001, engine RC07E-2000001; VF750C: frame RC071*CM000001, engine RC07E-4000001
-

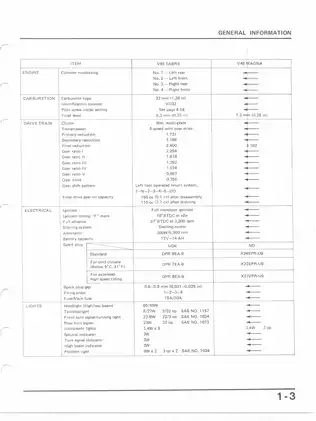

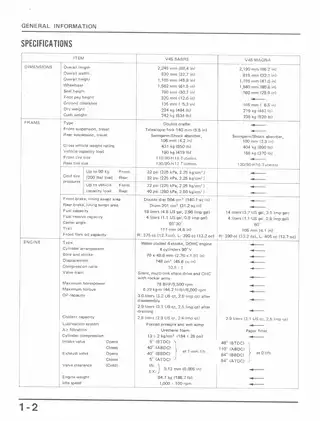

Engine displacement: 748 cc (VF750C, VF750S); 699 cc (VF700C, VF700S)
-
Engine type: Water-cooled 4-stroke, DOHC 90-degree V4
-
Compression ratio: 10.5:1
-
Transmission type: 5-speed with overdrive
-
Ignition timing: 10° BTDC at idle (VF750C, VF750S, VF700C); 15° BTDC at idle (VF700S)
-
Idle speed: 1,000 ± 100 rpm (VF750C, VF750S, VF700C); 1,200 ± 100 rpm (VF700S)
-
Bore and stroke: 70 x 48.6 mm (VF750C, VF750S); 70 x 45.4 mm (VF700C, VF700S)
-
Coolant capacity: 2.8 liters (VF750S, VF700S); 2.85 liters (VF750C, total system); 2.9 liters (VF700C)
Honda Manual Features & Selected Content Preview
Published by Honda Motor Co., Ltd., Service Publications Office, this September 1984 shop manual (P/N 61MB004) covers the 1982 VF750S V45 Sabre and VF750C V45 Magna. Its integrated addenda cover the 1983 VF750S/VF750C, 1984 VF700C/VF700S and 1985 VF700S. The 1985 material applies to the Sabre only; a separate 1985 VF700C Magna update is not included.
PDF Bookmarks and Wiring Diagram Detail
Navigation and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the main sections and addenda. Small wiring-diagram labels require zooming to read comfortably.
The ZIP download contains one printable, 413-page PDF. This total includes two introductory pages, 345 pages of base-manual sections and 66 pages of addenda: 31 for 1983, 20 for the 1984 Magna, nine for the 1984 Sabre and six for the 1985 Sabre.
V4 Engine, Shaft-Drive and Electrical Service
These selected coverage highlights outline the main repair areas. Other documented topics include headlight and instrument removal, plus clutch-diode testing.
-
Engine repair: Step-by-step engine removal and installation, camshaft and cylinder-head service, crankcase separation, and crankshaft, piston and connecting-rod inspection.
-
Clutch and drivetrain: Hydraulic clutch and starter-clutch repair, gearshift linkage service, transmission disassembly, output-gear setup, driveshaft service and final-drive overhaul.
-
Fuel system: Carburetor rack separation, reassembly, synchronization and pilot-screw adjustment, Sabre automatic fuel-valve checks, and Magna fuel-pump diagnosis.
-
Lubrication and cooling: Oil-pressure checks, oil-pump service, cooling-system pressure testing, thermostat inspection, radiator and cooling-fan service, and water-pump replacement.
-
Chassis and brakes: Fork overhaul, TRAC anti-dive inspection, steering bearings, Sabre Pro-Link and Magna twin-shock service, swingarm bearings, hydraulic bleeding and rear drum-brake repair.
-
Electrical diagnosis: Charging, ignition and starter tests, switch and sensor checks, instrument diagnosis, harness-routing illustrations and model-specific wiring diagrams.
The repair chapters suit technicians and experienced owners familiar with precision measurement and special tools. Honda’s maintenance schedules distinguish work for mechanically qualified owners from wheel and steering-bearing inspections it recommends leaving to an authorized dealer.
Internal Engine and Drivetrain Work
Top-end procedures extend to cam-chain guides and tensioners, valve-guide replacement and valve-seat refacing. Bottom-end coverage includes color-code bearing selection and clearance checks. Internal transmission repair requires engine removal and crankcase separation.
Output-gear work includes gasket selection, countershaft spacers and tooth-contact checks. The shaft-drive section adds damper-cam service, universal-joint inspection, propeller-shaft work and ring-and-pinion spacer selection.
Honda warns that torch heating during valve-guide replacement can warp the cylinder head; the procedure calls for controlled heating.
Carburetors, Lubrication and Cooling
The fuel chapter distinguishes Sabre and Magna layouts, including vacuum and float chambers, jets, the Magna auxiliary tank and high-altitude adjustment. Fuel-system views and California vacuum-hose routing diagrams support the corresponding component checks.
The carburetor instructions warn against mixing vacuum-chamber covers, pistons, springs or jet needles between carburetors, and against separating the rack in a way that damages its joint pipes.
Lubrication diagrams accompany oil-pump inspection and oil-pressure diagnosis. Cooling illustrations support radiator, thermostat, fan-switch and temperature-sensor checks. A leaking water-pump mechanical seal calls for replacement of the pump assembly, rather than a separate seal-overhaul procedure.
Suspension, Hydraulics and Electrical Fault Finding
Chassis procedures include fork bushings and seals, steering-stem races and preload, shock-linkage inspection and swingarm pivot bearings. A front-suspension adjustment chart accompanies the anti-dive system’s operating description.
Hydraulic chapters cover master-cylinder, slave-cylinder and caliper inspection, with bore measurements, piston checks, seal installation and bleeding procedures.
Electrical testing extends to starter brushes and the commutator, regulator/rectifier continuity, Sabre turn-signal cancellation, gauges and warning circuits. Wiring sheets cover the base VF750S/VF750C, both 1983 models, the 1984 VF700C and the 1985 VF700S. The 1984 VF700S addendum supplies harness-routing illustrations without a separate full wiring sheet.
System views and troubleshooting charts help connect a symptom or circuit fault with the appropriate repair section. Torque tables, wear limits, clearance specifications and special-tool listings support inspection and reassembly.

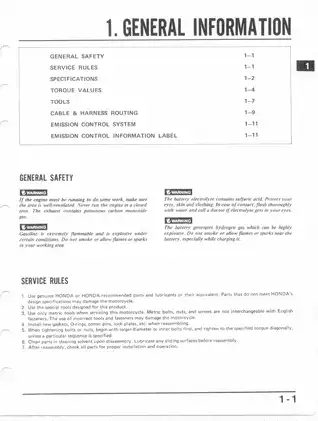

Support the motorcycle securely during engine or chassis work and isolate the battery before starter service. The manual also addresses gasoline, hot pressurized coolant, battery gas and electrolyte, and hydraulic-fluid hazards.
Changes Documented in the Addenda
The 1983 material adds one-way-clutch service and a power-flow diagram, along with an explanation of the optical-fiber antitheft device.
The 1984 Magna update covers California evaporative-emission equipment, purge-control-valve testing, steering-stem service and rear-shock changes. The Sabre update adds maintenance, carburetor, emissions and front-suspension information.
The 1985 Sabre addendum adds lubrication guidance, revised camshaft specifications, needle-bearing rear shock linkage and wiring updates. These sections supplement the base chapters; the 1985 section also refers to earlier addenda.
Selected Oil-Pressure and Final-Drive Inspection Data
For the base VF750S/VF750C, the oil-pressure check specifies 4.5 ± 0.8 kg/cm² at 5,000 rpm with oil at 80°C (176°F). The lubrication section connects this measurement with oil-system diagnosis.
The base final-drive section specifies ring-and-pinion backlash of 0.08–0.18 mm, with a 0.30 mm service limit. Contact-pattern illustrations accompany the spacer-selection procedures.
