Honda NQ50 Spree 1984–1987 Service Manual (P/N 61GK803)

Honda service manual P/N 61GK803 covers the 1984–1987 NQ50 Spree. The October 1986 issue includes year-specific service information and an April 1987 revised piston-ring page.

Printable PDF and Wiring Diagram Detail

Search, navigation, and small labels: PDF text search and embedded bookmarks are not available. Small wiring labels and connector details require zooming in the paired-page diagrams.

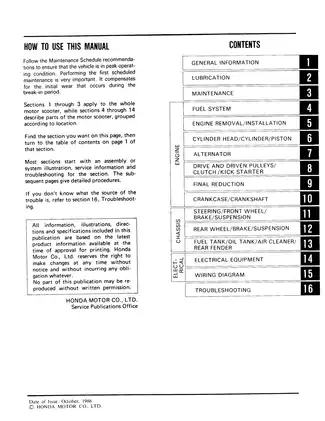

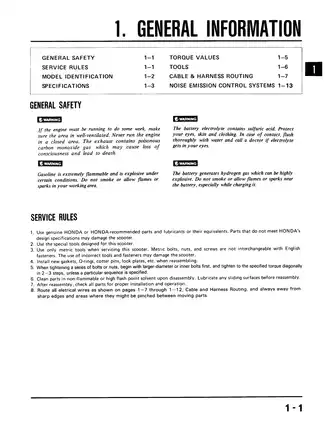

The ZIP contains one printable, English-language 161-page PDF, including the opening contents/use page and the revised piston-ring page within that total.

Two-Stroke Engine, Clutch, and Electrical Service

The following highlights are selected coverage, rather than a complete table of contents. Other topics include air-cleaner element servicing and headlight beam adjustment.

• Engine repair: Step-by-step procedures for engine removal and installation, cylinder-head, cylinder and piston service, crankcase separation, crankshaft inspection, and final-reduction overhaul.

• Oil-injection system: Oil-pump removal, inspection and installation, oil-line service, and bleeding procedures for both inlet and outlet sides.

• Carburetor and fuel supply: Throttle-valve and jet-needle service, float and jet inspection, auto bystarter electrical and pressure tests, reed-valve checks, and automatic fuel-valve diagnosis.

• Clutch and belt drive: Drive and driven pulley service, drive-belt inspection, dry centrifugal clutch repair, starter-pinion work, and after-1985 kick-starter procedures.

• Brakes, steering, and suspension: Front and rear drum-brake service, front-wheel bearing replacement, fork disassembly, steering-stem and race service, and rear-shock disassembly and inspection.

• Electrical troubleshooting: Production-specific wiring diagrams, cable-routing views, charging and ignition tests, starter-circuit diagnosis, switch checks, and fuel-gauge and oil-indicator troubleshooting.

This manual suits readers familiar with mechanical inspection and special tools; Honda’s maintenance schedules reserve selected safety-related work for an authorized dealer.

Engine Inspection and Oil-Injection Service

Internal repair: The sixteen workshop sections extend from general information and lubrication to electrical equipment and symptom-based troubleshooting. Engine coverage includes cylinder-head decarbonizing and warpage inspection, cylinder and piston measurement, piston-pin and connecting-rod checks, crankshaft runout and bearing inspection, oil-seal installation, and final assembly checks.

Cylinder-head, cylinder, and piston service can be performed with the engine in the frame. Crankshaft service requires engine removal, making the scope clear before the scooter is torn down.

Oil-pump scope: The lubrication chapter covers external inspection, replacement, and line bleeding; it specifically prohibits oil-pump disassembly. Air trapped in the oil system can restrict lubrication and cause severe engine damage.

The revised piston page distinguishes the keystone top ring from the square second ring and explains their locating-pin relationship, including the risk of ring breakage and piston or cylinder damage from incorrect placement.

Carburetor, Clutch, and Final Reduction

Fuel-system detail: The piston-valve carburetor section identifies the throttle valve, jet needle, float, float valve, jets, and auto bystarter. Resistor checks, float-level verification, throttle-cable installation, and post-installation adjustments accompany the assembly procedures.

The automatic fuel-valve section uses vacuum checks to distinguish normal shutoff from fuel-delivery faults. On after-1985 machines, the carburetor cap is integral with the throttle-cable assembly; attempting to separate it can damage the cable.

Drivetrain depth: Clutch procedures include shoe replacement and inspection of the driven-face spring, guide groove, seals, and pulley faces. The final-reduction chapter covers shaft and gear inspection, transmission-cover and final-shaft bearing replacement, oil seals, and case reassembly.

Alternator service includes flywheel, stator, and pulse-generator removal and installation. Component-specific torque tables, service limits, clearances, lubricant references, and fluid-capacity data accompany the relevant assemblies.

Chassis Service and Production Differences

Front and rear assemblies: Chassis coverage extends to handlebar and instrument removal, brake-panel assembly, speedometer drive-gear service, fork-spring inspection, and steering bearing-race replacement. Rear sections address the wheel, brake, shock absorber, fuel tank, oil tank, oil-level sensor, oil strainer, air-cleaner case, and rear fender.

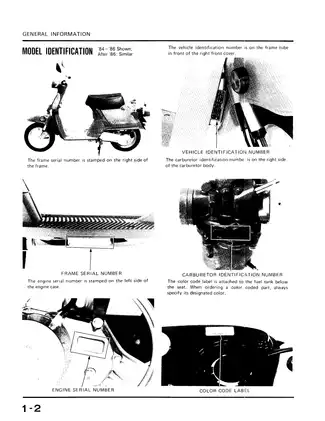

Year-specific information: Maintenance schedules, cable and harness routing, component callouts, and electrical drawings distinguish 1984–85, 1986, and after-1986 production. Iowa-specific specifications are marked separately.

The electrical chapter distinguishes the conventional 1984–85 battery from the sealed arrangement used after 1985. Spark-plug recommendations also distinguish standard use, cold weather, and extended high-speed riding; these are operating recommendations rather than separate scooter configurations.

Electrical Tests and Diagnostic Drawings

Circuit diagnosis: Coverage includes the regulator/rectifier, CDI unit, ignition coil, pulse generator, exciter and charging coils, starter motor and relay, switches, horn, fuel sender, fuel gauge, and oil indicator. Ignition timing is checked rather than adjusted.

The three production-group wiring diagrams are supported by charging-, ignition-, and starter-circuit drawings. Cable and harness routing views, oil-pump line layouts, carburetor/auto-bystarter illustrations, and clutch exploded views provide further assembly references.

Troubleshooting charts address hard starting, loss of power, low- and high-speed running faults, clutch complaints, poor braking, suspension and handling problems, and instrument faults. The starter chart separates brake-switch, battery, relay, and motor checks, helping trace a no-crank complaint through the circuit.

Factory Tools and Workshop Requirements

Named tools include flywheel puller 07733-0010000, universal holder 07725-0030000, and float-level gauge 07401-0010000.

Fork-seal driver 07947-1180001 is used for steering-stem cone-race installation. Rear-shock service calls for compressor 07959-3290001; clutch work specifies compressor 07960-KM10000, with 07960-KM1000A identified for U.S. use.

Crankcase puller 07935-GK80000 is marked as unavailable in the United States, with an alternate tool arrangement documented for that work.

Because these procedures involve gasoline, battery electrolyte, brake components, and exposed rotating drive parts, the repair work assumes proper workshop practices, correct support, and electrical isolation before service.

Preview of Float, Belt, and Charging Specifications

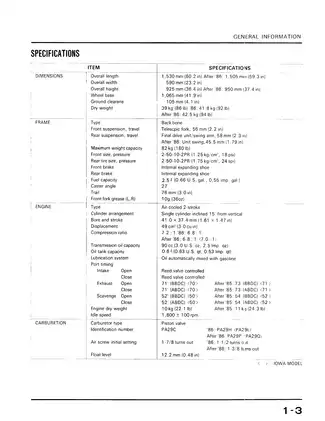

Carburetor inspection: The float-level specification is 12.2 ± 1.0 mm, measured with the float lip just contacting the float valve. The fuel-system chapter pairs this measurement with float inspection and replacement criteria.

Drive-belt wear: The belt inspection section gives a width service limit of 10.5 mm (0.41 in), alongside checks for cracks, separation, and abnormal wear.

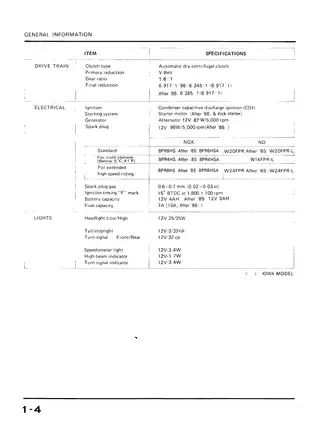

Charging-system testing: Regulated voltage is specified at 13.5–15.5 V at 5,000 rpm, with the engine at normal operating temperature and the battery in good condition.
