Honda NSR250R / SP Service & Repair Manual, 1986–1995 (P/N 60KV300Y)

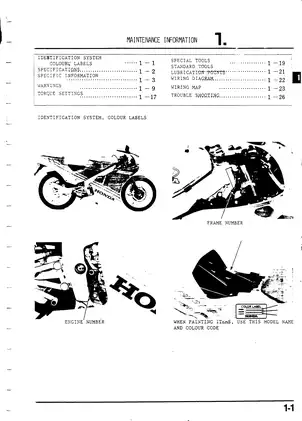

This service manual reproduces the English-language technical content of Honda's NSR250R / NSR250R SP factory service publication, P/N 60KV300Y. Its 22 numbered sections combine the MC16 repair chapters with dedicated MC18 J- and K-specific change sections. The cover and closing publication pages retain Japanese text.

PDF Access and Wiring Diagram Legibility

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Small labels in the main and J-section full-vehicle wiring diagrams are faint and partly unreadable even when enlarged. The K-section ignition and carburetor-control diagrams have clearer labels, with zooming needed for small wiring codes.

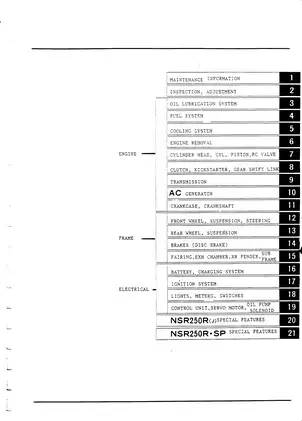

The ZIP contains one printable, 369-page PDF. This total includes the front cover, contents page, K-section divider, and two closing publication pages, along with the integrated J, SP, and K sections.

Two-Stroke Engine Repair and PGM System Diagnosis

The following selected coverage highlights outline the main workshop content rather than reproduce the complete contents list. Other topics include headlight adjustment and oil-warning-system checks.

• Engine repair: Step-by-step procedures for engine removal and installation, top-end disassembly, cylinder/piston selection, RC valve service, crankcase separation, and crankshaft inspection.

• Fuel and lubrication: Carburetor disassembly, float-level checks, air-screw adjustment, synchronization, reed-valve inspection, oil-strainer service, and oil-pump bleeding.

• Cooling system: Radiator and thermostat inspection, pressure testing, coolant replacement, water-pump removal, and mechanical-seal replacement.

• Clutch and transmission: Clutch, kickstarter, primary-drive gear, and gear-shift linkage service, plus cassette-transmission removal, gear inspection, and bearing replacement.

• Chassis and brakes: Wheel balancing, fork and steering-stem overhaul, rear-cushion and suspension-linkage service, swingarm bearings, brake bleeding, and master-cylinder/caliper repair.

• Electrical troubleshooting: Charging, regulator/rectifier, CDI/PGM ignition, pulse-generator, lighting, meter, switch, RC servo, throttle-sensor, and solenoid tests, supported by wiring diagrams.

The material is suited to experienced motorcycle mechanics and restorers who can work from factory inspection limits, special-tool callouts, exploded drawings, and electrical test charts rather than beginner-level explanations.

MC18 J, SP, and K Differences

NSR250R(J): The MC18 change section documents the TA20 carburetor arrangement, cassette transmission, short-body spark plugs, and PGM ignition/carburetion control. Revised cable routing, maintenance data, and model-specific troubleshooting accompany the mechanical changes.

NSR250R SP: Section 21 is a one-page special-features supplement covering wheel-bearing position and balance-weight selection. It supplements the shared service chapters rather than providing a separate full SP workshop manual.

NSR250R(K): The 49-page numbered change section covers the TA21 carburetor and PGM-2 engine-control system. It explains independent front- and rear-cylinder ignition control, twin carburetor air-jet solenoids, throttle-sensor input, PGM-RC valve operation, and oil-pump-solenoid control.

The variant sections help match inspection data and procedures to the installed configuration before parts are assessed or electrical tests are selected.

Internal Engine Inspection and Lubrication Limits

Cylinder and piston selection marks are paired with dimensional checks and wear limits. Crankshaft inspection covers connecting-rod clearance, journal runout, and bearing condition; a damaged center oil seal or abnormal journal bearing calls for crankshaft-assembly replacement.

The engine-oil pump is inspected and replaced as an assembly, with instructions expressly prohibiting its disassembly. The J-section transmission oil pump has separate rotor-clearance checks and assembly illustrations.

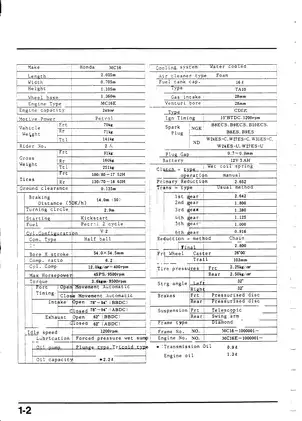

Component-specific torque tables, fluid and lubricant data, clearances, brake specifications, suspension data, and maintenance schedules accompany the related assemblies. Special-tool references include the 07HMB-KV30100 gear holder and 07HMC-KV30100 rotor-puller attachment, together with bearing drivers, steering tools, fork-seal tools, and a rear-cushion compressor.

The primary-drive gear retaining bolt has a left-hand thread; treating it as a conventional fastener risks damage to the fastener or drive assembly.

PGM-2 Fault Isolation and Circuit References

The K-section diagnostic charts address no-spark, poor charging, low power, carburetor air-jet control faults, and incorrect RC valve operation. Detailed checks cover RC cable adjustment, solenoid vacuum and resistance tests, ignition peak voltage, and engine-control-unit input and output signals.

Comparing pulse-generator readings at the generator and control-unit connections helps distinguish a wiring or connector fault from a generator fault. Peak-voltage testing references the 07HGJ-0020100 adapter.

An incorrect regulator/rectifier can damage the CDI. The electrical sections also warn that handling control-unit couplers with the main switch on can cause internal electrical damage.

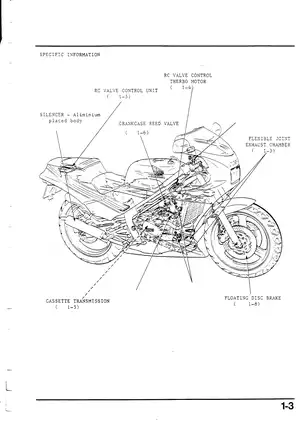

Visual references include full-vehicle wiring diagrams, model-specific wiring-location maps, PGM-2 control block diagrams, RC valve cable-routing views, cassette-transmission exploded views, and brake-caliper/master-cylinder assembly drawings.

Wheel, Suspension, and Brake Service Boundaries

Wheel chapters include bearing service, runout inspection, balancing, and drive-chain adjustment. The K-section adds rear brake torque-rod spherical-bearing replacement and caliper-bracket inspection.

The tubeless-tire removal method is referred to the separate Honda Motorcycle Tubeless Tire Service Manual No. 6041551, which is not included.

Follow the manual's precautions for stable lifting, brake-fluid contamination, and caliper support during wheel and brake work.

Thermostat and PGM-2 Test Data: A Preview

The cooling-system chapter specifies a thermostat opening temperature of 63–67°C as part of its inspection data.

For the NSR250R(K), throttle-sensor inspection specifies 4–6 kΩ at 20°C between the Bu/G and Y/R circuits. Engine-control-unit output checks specify 4–5 V for the throttle sensor and RC valve servo-motor potentiometer circuits.
