Honda RVT1000R / RC51 2000–2006 Service & Parts Manual Set

The service manual provides repair procedures and diagnostic data. The separate parts reference helps identify hardware and assembly relationships during routine maintenance or larger repairs.

Coverage limits: Service coverage ends at 2002. The parts reference applies to the 2000 model.

Text Search, Navigation, and Diagram Detail

Search and navigation: The service manual has no PDF text search or embedded bookmarks. The parts reference has searchable description tables and a single Rear Wheel bookmark; its drawing labels are not searchable. Small wiring-diagram labels in the service manual require zooming.

The ZIP contains two printable English-language PDFs totaling 585 pages. This total includes both covers, the service manual’s two introductory pages, and one blank page in the parts reference.

PGM-FI Diagnosis, Engine Repair, and Chassis Service

Selected coverage is outlined below. Other documented topics include fairing and exhaust removal, along with drive-chain inspection and replacement.

• PGM-FI: Self-diagnosis and MIL-code troubleshooting, fuel-pressure testing, throttle-body service, and starter-valve synchronization.

• Engine repair: Engine removal and installation, cylinder-compression testing, camshaft removal, cylinder-head disassembly, and gear-driven cam-train service.

• Clutch and transmission: Hydraulic-fluid replacement and bleeding, master- and slave-cylinder service, clutch-pack inspection, crankcase separation, and transmission, shift-fork, and shift-drum repair.

• Cooling and lubrication: Radiator and cooling-fan service, thermostat testing, water-pump mechanical-seal replacement, coolant bleeding, oil-pressure checks, and oil-pump inspection.

• Chassis and brakes: Wheel service, fork overhaul, steering-bearing replacement and preload checks, linkage and swingarm-bearing repair, and brake master-cylinder and caliper rebuilding.

• Electrical diagnosis: Battery-condition and current-leakage testing, alternator output, regulator/rectifier checks, ignition peak-voltage testing, and starter-motor and relay fault tracing.

• Workshop references: Torque tables, fluid capacities, pressure-test specifications, wear limits, clearances, electrical test values, and component-specific special-tool information.

Written for readers with basic Honda motorcycle maintenance knowledge, the manual assumes workshop familiarity rather than teaching first-time mechanical fundamentals.

Model-Year Differences and Fuel-System Diagnosis

The ’00–’01 and After ’01 designations distinguish throttle-body identification and bore, cooling-system capacity, and fan control. Chassis differences include fork spring and fluid data, steering-stem hardware, front-brake components, lighting and fuse arrangements, and engine/swingarm mounting procedures.

These distinctions help match the repair information to the machine before selecting parts or test specifications.

Fuel-system fault tracing covers sensors, injectors, the fuel pump, cut-off relay, and ECM, with service-check-connector and test-harness information. California models receive dedicated evaporative-emissions coverage.

The throttle-body section warns that disturbing the white-painted factory-set bolts and screws can upset throttle and idle-valve synchronization.

Cylinder Heads, Internal Engine Work, and Driveline Repair

Cylinder-head procedures extend to valve-guide replacement, valve-seat refacing, head assembly, cam timing, and final valve-clearance adjustment. Step-by-step instructions also cover primary-drive work, alternator and flywheel removal, starter-clutch inspection, and torque-limiter checks.

The crankshaft, piston, and cylinder sections provide internal inspection procedures and bearing-selection tables. Crankpin and main-journal bearing inserts are select-fit and color-coded; incorrect selection or oil clearance can cause major engine damage.

Named tools include valve-spring compressor 07757-0010000 and clutch-center holder 07724-0050002. Alternator procedures identify flywheel holder 07725-0040000 and rotor puller 07733-0020001.

Electrical Diagrams and Fault Isolation

Diagnostic references include Cable & Harness Routing, the PGM-FI System Diagram, MIL malfunction-code charts, the electric-starter troubleshooting flowchart, the radiator-fan circuit schematic, and the full-page Wiring Diagram.

Combination-meter circuits, speed and temperature sensing, switches, lighting, and fan controls receive separate testing information. Troubleshooting charts address hard starting, power loss, poor low- or high-speed performance, charging and ignition faults, brake drag, and handling complaints.

Parts Identification and Rear-Shock Limits

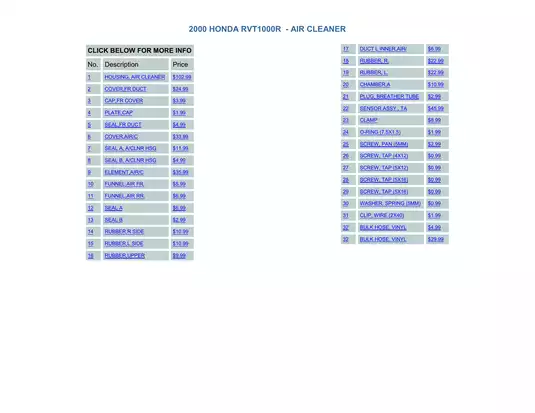

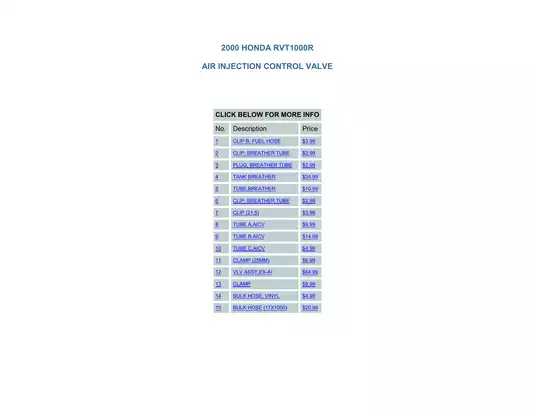

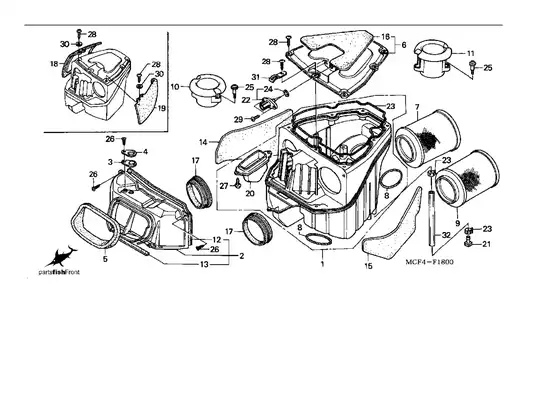

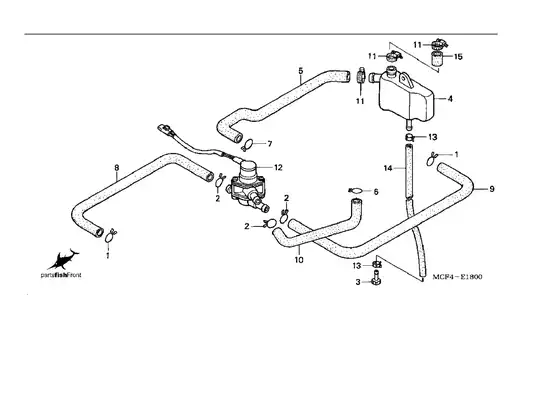

The 58 exploded component views use numbered callouts with matching parts-description tables. They cover the camshaft and valves, crankcase, transmission, clutch, throttle body, brakes, front fork, steering stem, swingarm, radiators, starter system, and front and rear wire harnesses.

Rear-shock coverage includes removal, bushing inspection, and disposal preparation. The nitrogen-charged damper unit is not to be disassembled; linkage and swingarm-bearing repair are covered separately.

Workshop Safety

Support the motorcycle with a hoist or equivalent before engine, wheel, fork, steering, or suspension work. Switch the ignition off before starter or electrical service, and allow the engine and radiator to cool before removing the radiator cap.

A Preview of Valve-Clearance and Fuel-Pressure Specifications

The valve-clearance specifications are 0.16 ± 0.03 mm at the intake valves and 0.31 ± 0.03 mm at the exhaust valves, measured with the engine cold, below 35°C (95°F).

For PGM-FI fuel-system testing, the manual specifies fuel pressure at idle of 343 kPa (50 psi), alongside pressure-regulator and fuel-pump checks.
