Honda VT1100C3 Shadow Aero Service Manual (1997–2002)

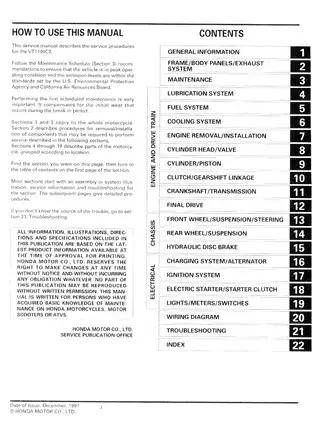

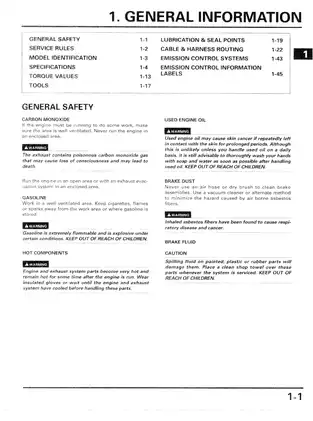

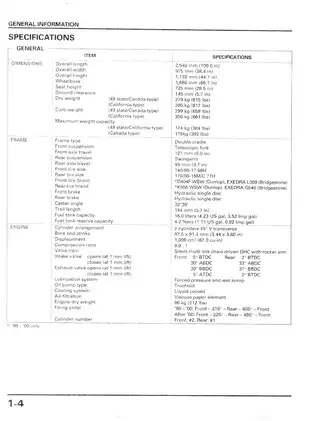

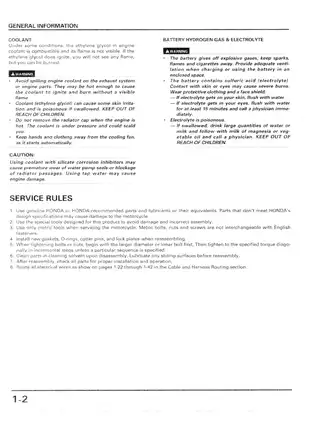

Honda factory service information for the 1997–2002 VT1100C3 Shadow Aero, organized into 22 numbered sections including troubleshooting and an index. The opening page is dated December 1997, and the file also contains later model-year material.

PDF Navigation, Wiring Readability, and File Contents

Text search and navigation: PDF text search is not available. Embedded bookmarks provide access to the main chapters and both model-year wiring diagrams. Small wiring labels require zooming; some labels in the ’98–’00 diagram remain faint.

The PDF contains two index versions with differing page references.

Delivered as one printable PDF in a ZIP archive: 395 pages total, including one introductory page, one repeated cable-routing page, and two additional index pages.

Engine, Shaft-Drive, Chassis, and Electrical Service

The following selected service topics are not a complete contents list. Further examples include wheel balancing and headlight aiming.

• Engine and valve train: Engine removal, camshaft service, valve-guide replacement, valve-seat refacing, and cylinder/piston inspection.
• Clutch and transmission: Cable-operated wet-clutch service, gearshift-linkage repair, crankcase separation, color-coded connecting-rod bearing selection, and internal transmission repair.
• Shaft drive: Output-gear and final-drive disassembly, backlash measurement, gear-tooth contact checks, shim selection, and final-drive preload inspection.
• Lubrication and cooling: Oil-pressure testing, oil-pump inspection, cooling-system pressure tests, thermostat checks, coolant bleeding, and water-pump replacement.
• Chassis and brakes: Fork seals and bushings, steering-bearing preload, swingarm bearings, and front/rear hydraulic-disc-brake overhaul and bleeding.
• Electrical diagnosis: No-spark and no-crank fault tracing, regulator/rectifier checks, starter-motor overhaul, torque-limiter testing, and starter-clutch inspection.

Honda wrote the manual for readers who already have basic maintenance knowledge of Honda motorcycles, scooters, or ATVs.

Model-Year and Regional Service Differences

Tables and procedures distinguish ’98–’00 and After ’00 configurations. Differences include camshaft timing procedures, secondary and fifth-gear ratios, engine-oil capacities, battery service, and coolant thermosensor specifications.

Regional references distinguish 49-state, California, and Canadian specifications.

Engine Repair, Workshop Access, and Assembly Details

Engine-out and in-frame work: The engine-removal chapter identifies which jobs require the powertrain out of the frame and which can be performed in place. Cylinder-head, cylinder/piston, crankshaft, internal transmission, and water-pump work require engine removal.

Clutch-outer, oil-pump, and gearshift-linkage access includes instructions for the removable subframe. These distinctions help plan engine removal and workshop access before disassembly.

Hydraulic tappet setup: Hydraulic valve adjustment does not eliminate all setup work during a top-end repair. The head-cover procedures include tappet bleeding and shim selection after specified component replacements or valve-seat work, using hydraulic tappet bleeder 07973-MJ00000.

Assembly cautions address sealant around hydraulic-tappet holes, which can cause tappet failure. The crankshaft chapter also warns that misplaced connecting-rod bearings can block oil holes and lead to engine seizure.

Output-Gear and Rear Final-Drive Assembly

The shaft-drive material distinguishes the engine’s output gear case from the rear final-drive gear case. Separate step-by-step inspection and assembly procedures include matched-gear replacement requirements.

Gear Tooth Contact Pattern Check illustrations distinguish acceptable, high, and low contact patterns.

Fuel-System Maintenance and Emissions Coverage

Maintenance and pump diagnosis: Routine fuel-system maintenance includes carburetor vacuum synchronization, throttle and choke checks, and idle-speed adjustment. The electrical chapter provides fuel-pump and fuel cut-off relay diagnosis, including a pump-discharge test.

California emissions: The emissions information identifies the canister, EVAP purge control valve, and EVAP carburetor air vent control valve. The Vacuum Hose Routing Diagram and numbered hose references distinguish this plumbing from other regional configurations.

Fuel-chapter limitations: Carburetor installation ends partway through the procedure, and the referenced pilot-screw adjustment, high-altitude adjustment, and dedicated EVAP service pages are missing. The fuel chapter also contains conflicting float-level specifications.

Ignition Tests and Electrical Circuit References

Peak-voltage diagnosis: Primary-coil and ignition-pulse-generator tests identify peak-voltage adapter 07HGJ-0020100 and a U.S.-market peak-voltage tester alternative. Comparing readings at the ignition control module and pulse-generator connectors helps distinguish a wiring fault from a generator-side problem.

Further checks cover the speed sensor, side-stand and clutch switches, cooling fan, and coolant-temperature indicator circuit.

Circuit tracing: The charging-system troubleshooting flowchart supports fault isolation. Wiring Diagram—’98–’00 and Wiring Diagram—After ’00 provide the corresponding circuit references, while cable and harness routing pages identify connector locations and wire paths.

Factory Tables and Illustrated Service References

Component-specific tables provide torque specifications, fluid capacities, wear limits, bearing clearances, and electrical test values. The Lubrication System diagram traces oil delivery through the engine, and exploded assembly views support component identification during disassembly and reassembly.

Engine removal and chassis work require secure support, and running-engine tests require adequate exhaust ventilation.

Output-Gear and Final-Drive Backlash Limits

Output gear case: The backlash inspection specifies a standard range of 0.08–0.23 mm, with 0.40 mm as the service limit. The related instructions cover measurement at the output drive gear shaft.

Rear final drive: The ring-gear backlash specification is 0.05–0.15 mm, with a 0.30 mm service limit. This is a separate inspection from the engine-side output-gear check.
