Honda Shadow Aero VT750C/CA 2004–2005 Service & Repair Manual

This Honda VT750C/CA Shadow Aero service manual is the November 2003 base edition for the carbureted platform, with separate information for 49-state/Canada and California configurations. No later model-year supplement is appended.

PDF Search, Wiring Detail and Page Count

Text search and navigation: The service-page content is not searchable; the text layer covers only added title text, headers, and page numbering. There are no embedded PDF bookmarks. Small wire-color codes and connector labels in the full wiring diagram are readable when enlarged.

One printable English PDF contains 462 pages, including one added title page and 14 memo pages.

Engine, Shaft-Drive and Electrical Service

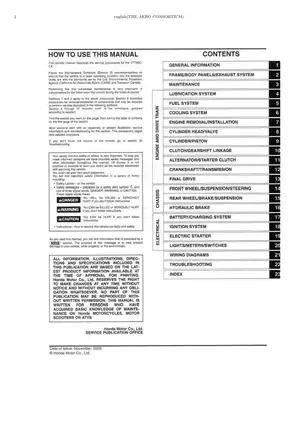

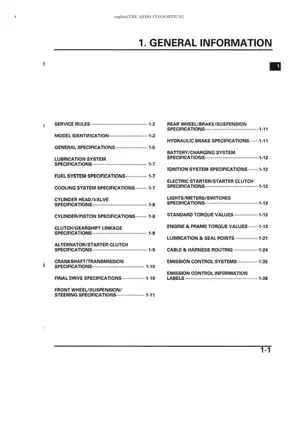

These selected service topics outline the coverage. Other sections include seat, body-panel and exhaust-system removal; this is not a complete contents list.

• Engine repair: Engine removal and installation, compression diagnosis, camshaft and cylinder-head repair, cylinder/piston inspection, and valve-train setup.

• Drivetrain overhaul: Clutch and gearshift-linkage service, flywheel and starter-clutch work, crankcase separation, crankshaft and transmission inspection, output-gear setup, and shaft final-drive overhaul.

• Fuel and emissions: Carburetor disassembly and reassembly, intake-manifold service, PAIR inspection, and California-only EVAP diagnosis.

• Lubrication and cooling: Oil-pressure testing, oil-pump service, cooling-system pressure checks, coolant replacement and bleeding, thermostat testing, radiator/fan service, and water-pump replacement.

• Chassis service: Front fork and steering-stem service, wheel inspection and balancing, rear drum-brake repair, and swingarm work.

• Front hydraulic brake: Fluid replacement, air bleeding, pad and disc inspection, master-cylinder repair, and caliper service.

• Electrical troubleshooting: Charging, ignition, starting, lighting, meter, sensor, and switch diagnosis, supported by system diagrams, wiring drawings, and symptom-based troubleshooting charts.

Honda states that this manual is written for readers who already have basic maintenance knowledge of Honda motorcycles, scooters, or ATVs; internal engine and final-drive work calls for the specified measuring equipment and special tools.

Internal Engine and Final-Drive Setup

Top-end work: Step-by-step procedures cover valve-guide replacement, valve-seat inspection and refacing, piston-ring installation, and OHC valve-timing setup. Cylinder-head and cylinder/piston service requires engine removal, while camshaft and rocker-arm service can be performed with the engine in the frame.

Bottom-end work: Crankpin and main-journal bearing selection uses color-code tables and oil-clearance checks. Shift-fork and shift-drum inspection, crankcase-bearing replacement, and final assembly are covered. Oil-pump service requires crankcase separation.

Shaft-drive setup: Ring-and-pinion disassembly extends to bearing and seal replacement, backlash measurement, tooth-contact pattern checks, shim selection, preload verification, and installation.

Honda warns against supporting the engine on its oil filter during removal because the filter can be damaged.

Carburetor Variants and Cooling Repairs

The 49-state/Canada version uses carburetor identification VE5BA; the California version uses VE5BB and adds the EVAP canister, purge control valve, carburetor air-vent control valve, and numbered vacuum-hose routing. That distinction matters when selecting carburetor and emission parts or following the correct adjustment procedure.

Fuel-system detail includes pilot-screw adjustment and high-altitude setup. The cooling chapter covers water-pump mechanical-seal inspection and pump removal and installation; leakage at the telltale hole calls for pump replacement.

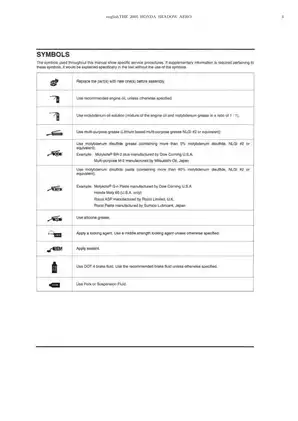

Lubrication and seal-point charts distinguish the required molybdenum compounds, silicone grease, locking agent, sealant, DOT 4 brake fluid, fork fluid, and Pro Honda HP coolant by service point.

Suspension and Brake Repair Detail

Chassis procedures include fork-seal replacement, steering-head bearing replacement and preload checks, and swingarm pivot-bearing service. Rear shock absorbers are removed, inspected, and replaced as assemblies.

Fuel-system work must be performed away from ignition sources in a ventilated area, and the manual's hot-coolant and hydraulic-brake precautions should be followed before opening or bleeding either system.

Electrical Tests, Diagrams and Shop References

Electrical diagnosis includes battery current-leakage and charging checks, ignition peak-voltage tests, ICM and ignition-coil inspection, starter-relay flow charts, starter-motor inspection, and continuity tests for safety switches, indicators, and lighting circuits. Throttle-position-sensor testing is also covered. Disconnecting the ICM while current is flowing can damage the module.

Illustrations include the Lubrication System Diagram, Cooling System Flow Pattern, Cable & Harness Routing views, battery/charging and ignition system diagrams, and the full wiring drawing marked 0030Z-MEG-6700. Exploded component views support mechanical repair.

Tool callouts include carburetor float-level gauge 07401-0010000, oil-pressure gauge set 07506-3000001 with attachment 07510-4220100, and rotor puller 07733-0020001. Maintenance schedules, component-specific torque tables, fluid data, wear limits, adjustment specifications, and electrical test values accompany the procedures.

Valve-Clearance and Float-Level Examples

For both cylinders, the valve-clearance section specifies 0.15 ± 0.02 mm intake and 0.20 ± 0.02 mm exhaust with the engine cold, below 35°C (95°F).

The carburetor inspection section lists an 18.5 mm (0.73 in) float level with the float valve seated and the float arm just touching it. The float is nonadjustable; an out-of-specification float calls for replacement.
