Honda VT750DC Shadow Spirit 2001–2003 Service Manual

This Honda service manual covers the 2001–2003 VT750DC Shadow Spirit 750, including 49-state/Canada and California configurations. It reproduces Honda Motor Co., Ltd.’s service publication dated September 2000.

PDF Bookmarks and Wiring Detail

Search and diagram navigation: PDF text search is not available. Embedded bookmarks provide access to the contents, service chapters, wiring diagram, troubleshooting, and index. Small wire-color and connector labels in the wiring-diagram views require zooming for comfortable reading.

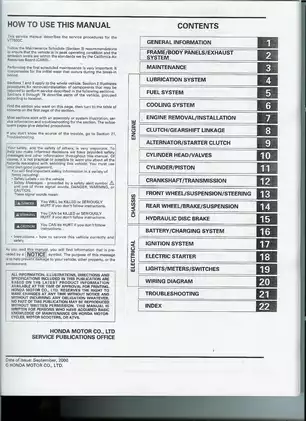

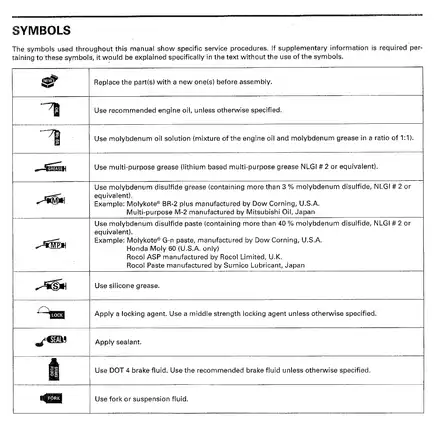

One printable English PDF contains 345 pages, including one cover page and three preliminary pages. The index and all wiring-diagram page views are included in that total.

Engine, Carburetor, Chassis, and Electrical Service

The following selected service topics outline the repair coverage. Other documented work includes exhaust-system removal and installation and handlebar-grip replacement.

• Engine and transmission: Step-by-step engine removal, camshaft and cam-chain work, cylinder-head and valve repair, piston inspection, crankcase separation, and transmission disassembly and reassembly.

• Fuel and California EVAP: Twin-carburetor service, synchronization, pilot-screw idle-drop adjustment, high-altitude setup, fuel-pump service, and vacuum/pressure testing of emissions control valves.

• Clutch and starter drive: Cable-operated wet-clutch and gearshift-linkage repair, alternator/stator replacement, flywheel service, and one-way starter-clutch inspection.

• Lubrication and cooling: Oil-pressure testing, oil- and water-pump service, radiator-cap and cooling-system pressure tests, thermostat checks, coolant replacement, and air bleeding.

• Wheels and suspension: Wheel-bearing replacement, rear spoke-wheel centering, balancing, fork overhaul, steering-stem and race service, steering-bearing preload checks, and swingarm service.

• Brake repair: Front disc-brake bleeding, pad/disc inspection, master-cylinder and caliper overhaul, plus rear drum, shoe, panel, and brake-pedal linkage service.

• Electrical diagnosis: Charging and ignition tests, starter-motor repair, circuit diagrams, troubleshooting flowcharts, safety-interlock checks, and lighting, meter, switch, sensor, and fuel-pump diagnosis.

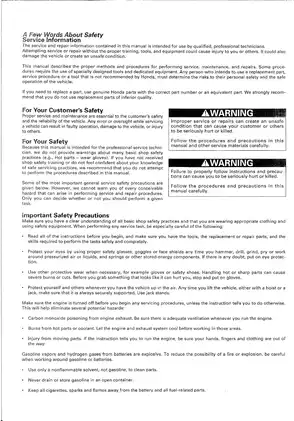

Honda specifies qualified professional technicians as the intended users and assumes prior knowledge of Honda motorcycle maintenance and basic shop practice.

Engine Access and Internal Repair

Job planning: The manual distinguishes work that can be done with the engine installed from jobs requiring removal. Carburetors, clutch and gearshift linkage, alternator, flywheel/starter clutch, camshafts, and starter motor are covered as in-frame service items.

Cylinder-head and valve work, cylinders and pistons, crankshaft and connecting rods, transmission internals, crankcase work, and oil- and water-pump removal require the engine to come out. This distinction helps establish the access and support equipment needed before a repair begins.

Top-end detail: Procedures extend to rocker-arm inspection, cam-chain tensioner checks, valve-guide replacement, valve-seat inspection and refacing, cylinder and piston measurement, and piston-ring installation. Camshaft installation includes front/rear identification and a piston-and-crankpin location diagram.

Bearings and transmission: Connecting-rod bearing selection uses identification and color codes, followed by Plastigage clearance checks. Main-bearing inspection is treated separately; excessive main-bearing clearance calls for crankcase replacement. Transmission coverage includes the mainshaft, countershaft, shift forks, shift drum, crankcase bearings, and final assembly.

The crankshaft chapter warns that incorrectly positioned bearing inserts can block oil holes, interrupt lubrication, and lead to engine seizure.

Twin Carburetors and California Emissions Equipment

Carburetor procedures address float and float-valve inspection, air-cut valves, Starting Enrichment valves, vacuum pistons, and diaphragms. Separation, cleaning, reassembly, and carburetor-combination adjustment are documented, along with high-altitude adjustment and the return to low-altitude settings.

California equipment: Coverage identifies the EVAP canister, purge-control valve, carburetor-air-vent control valve, and numbered hose routing. Difficult hot restarting is linked to specific control-valve checks, giving the emissions tests a practical diagnostic context.

The cleaning section warns that probing air and fuel passages with wire can damage the carburetor body.

Cooling Tests and Electrical Fault Isolation

Cooling-system diagnosis covers overheating, low operating temperature, and leakage. Supporting procedures include coolant-concentration checks, pressure testing, thermostat inspection, radiator/cooling-fan removal, and water-pump mechanical-seal inspection.

Charging and ignition: Battery load and current-leakage checks accompany alternator-coil and regulator/rectifier tests. Ignition diagnosis includes primary peak-voltage and pulse-generator testing, plus ignition-timing inspection; the factory-preset timing is not adjustable.

Starting and instruments: Separate procedures address starter relays and diodes, speed-sensor signals, coolant-temperature circuits, carburetor heaters, and switch continuity. The general troubleshooting charts also cover hard starting, power loss, poor low- or high-speed performance, and handling complaints.

Circuit Drawings and Factory Tool References

Visual references include Cable & Harness Routing, the California Vacuum Hose Routing Diagram, the lubrication oil-flow drawing, and charging-, ignition-, and electric-starter circuits. One motorcycle-wide wiring schematic is reproduced across three PDF page views, with wire colors, connector labels, fuse assignments, and switch-continuity tables.

The manual supplies component-specific torque tables, fluid capacities, wear limits, clearances, and electrical test specifications. Fuel-service tool references include vacuum gauge set 07LMJ-001000A and pilot screw wrench 07KMA-MS60101.

Other listed equipment includes flywheel holder 07725-0040000, rotor puller 07733-0020001, fork seal driver 07947-KA50100, and peak-voltage adapter 07HGJ-0020100. Availability notes and U.S.-market alternatives accompany the applicable entries.

Fuel, brake, cooling-system, battery, and engine work should be carried out with the training, support equipment, and safety precautions specified in the manual.

Valve-Clearance and Compression Specification Examples

For cold-engine valve checks below 35°C (95°F), the specified clearance is 0.15 ± 0.02 mm at the intake valves and 0.20 ± 0.02 mm at the exhaust valves. These are adjustment specifications, not wear limits.

The cylinder-compression reference is 1,275 ± 98 kPa at 400 rpm, with the engine at normal operating temperature and the throttle fully open. The accompanying diagnostic discussion relates abnormal readings to carbon buildup, valve sealing, and cylinder/piston condition.
